Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS Cromor Double Butted Steel
Suspension Fork
COLUMBUS Futura Adventure Carbon tapered
Drivetrain
Rear Derailleur
Shimano Tiagra / 10 Speed / Long Cage
Shift Levers
Shimano Tiagra
Cassette
Shimano / 10 Speed / 11-34T
Crank
Prowheel MPL-501-TT / 36/26T - Size 170 (S/M) 175 (L/XL)
Bottom Bracket
SHIMANO / BSA 73mm
Chain
KMC (X10)
Wheels
Rims
SHINING / 29" / Formula hubs / 6 Bolt
Tires
WTB Ranger / 29X2,25 / Tan sidewall
Brakes
Brakes
TRP HY-RD (MD-C705C) / TRP TR29 160mm rotors
Cockpit
Stem
CINELLI 6061 Stem - Size 90 (S/M) 100 (L/XL)
Handlebar
CINELLI Largo / Ø 31,8 / 560mm (S/M/L/XL)
Headset
ZS 44/28,6 | EC 44/40
Seat
Saddle
WTB Volt
Seatpost
CINELLI 6061 Seat Post / Ø27,2 / L350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.713 mm | 1.699 mm | 1.67 mm | 1.684 mm |
| Front Center | 642 mm | 657 mm | 682 mm | 697 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 87 mm | 79 mm | 80 mm | 80 mm |
| Stack | 620 mm | 644 mm | 663 mm | 682 mm |
| Reach | 362 mm | 379 mm | 397 mm | 405 mm |
| Top Tube Length | 540 mm | 570 mm | 600 mm | 620 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 460 mm | 510 mm | 550 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 133 mm | 153 mm | 173 mm | 193 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1083 mm | 1098 mm | 1123 mm | 1138 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

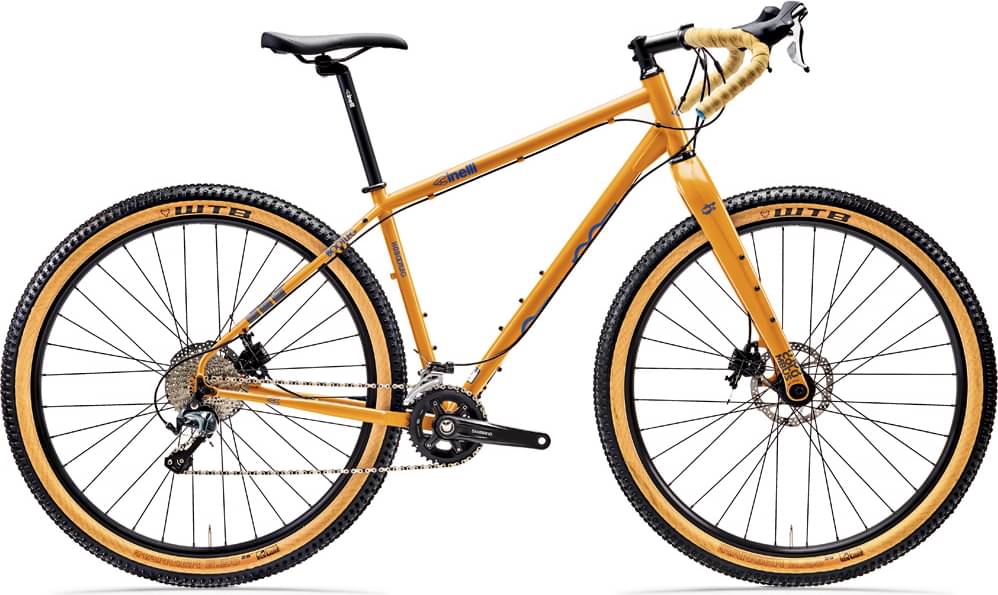

Hobootleg Geo completes the Cinelli Hobootleg model. Cinelli launched 18 bikes of this model so far. You can easily view all of the Cinelli Hobootleg bikes models from 2023, here.
Model range prices
Cinelli HOBOOTLEG INTERRAIL – SHIMANO DEORE 2X 2023 is the most economical model, with a starting price of 1540$. Cinelli HOBOOTLEG GEO – SHIMANO TIAGRA MIX 2X 2023 on the other hand costs 2336$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Hobootleg Geo 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hobootleg Geo comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
