Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Spirit HSS Tubeset
Suspension Fork
Columbus Futura Disc 1-1/8” - 1-1/2” Carbon Monoc.
Drivetrain
Bottom Bracket
BSA 68 mm / Press Fit 86,5 x 41 (Custom)
Brakes
Brakes
Flat Mount Disc Brake, rotor size up to 160 mm
Cockpit
Headset
IS 42/28,6 | IS 52/40
Seat
Seatpost
Ø 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.47 mm | 1.48 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 572 mm | 573 mm | 575 mm | 585 mm | 605 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 65 mm | 59 mm | 56 mm | 55 mm |
| Stack | 505 mm | 515 mm | 542 mm | 559 mm | 582 mm |
| Reach | 364 mm | 366 mm | 368 mm | 378 mm | 390 mm |
| Top Tube Length | 505 mm | 515 mm | 530 mm | 545 mm | 570 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 120 mm | 145 mm | 160 mm | 185 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 968 mm | 970 mm | 980 mm | 1000 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 730 mm | 755 mm | 777 mm | 794 mm | 818 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

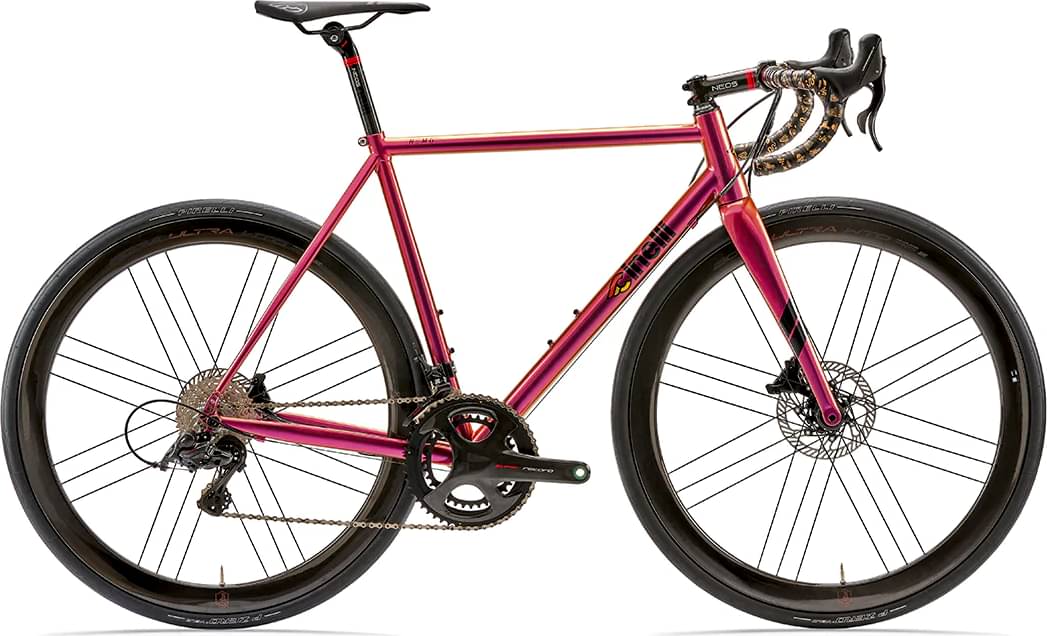

NEMO TIG DISC – COMPLETE BIKE belongs to the Cinelli Nemo model. Cinelli released 33 bikes variations of this model so far. You can easily view all of the Cinelli Nemo bikes models from 2023, here.
Model range prices
Cinelli NEMO TIG – ULTEGRA 2023 is the most economical model, with a starting price of 4024$. Cinelli NEMO TIG DISC – RED ETAP AXS 2023 on the other hand costs 9917$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Cinelli NEMO TIG DISC – COMPLETE BIKE 2023, has a 700c model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Cinelli NEMO TIG DISC – COMPLETE BIKE has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Cinelli NEMO TIG DISC – COMPLETE BIKE bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
