Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Super Record EPS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS SPIRIT HSS Tubeset
Suspension Fork
COLUMBUS FUTURA Disc 1-1/8” - 1-1/2”
Drivetrain
Rear Derailleur
Campagnolo Super Record EPS / 12 Speed
Shift Levers
Campagnolo Super Record EPS
Cassette
Campagnolo Super Record / 11-32T
Crank
Campagnolo Super Record / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
Campagnolo BSA
Chain
Campagnolo Super Record
Wheels
Rims
Campagnolo Bora Ultra WTO 45 DB
Tires
Pirelli PZero / 700x28c
Brakes
Brakes
Campagnolo Super Record / 160mm Front rotor - 140mm Rear rotor
Cockpit
Stem
Cinelli Neos, Size 90 (XS/S) 100 (M) 110 (L/XL/XXL)
Handlebar
Cinelli Neos, Size 40 (XS/S) 42 (M/L/XL) 44 (XXL)
Headset
IS 42/28,6 | IS 52/40
Seat
Saddle
Selle Italia Novus
Seatpost
Cinelli Neos Ø27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.47 mm | 1.48 mm | 1.49 mm | 1.55 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 572 mm | 573 mm | 575 mm | 585 mm | 605 mm | 609 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 65 mm | 59 mm | 56 mm | 55 mm | 53 mm |
| Stack | 505 mm | 515 mm | 542 mm | 559 mm | 582 mm | 608 mm |
| Reach | 364 mm | 366 mm | 368 mm | 378 mm | 390 mm | 392 mm |
| Top Tube Length | 505 mm | 515 mm | 530 mm | 545 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 120 mm | 145 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 968 mm | 970 mm | 980 mm | 1000 mm | 1004 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 730 mm | 755 mm | 777 mm | 794 mm | 818 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

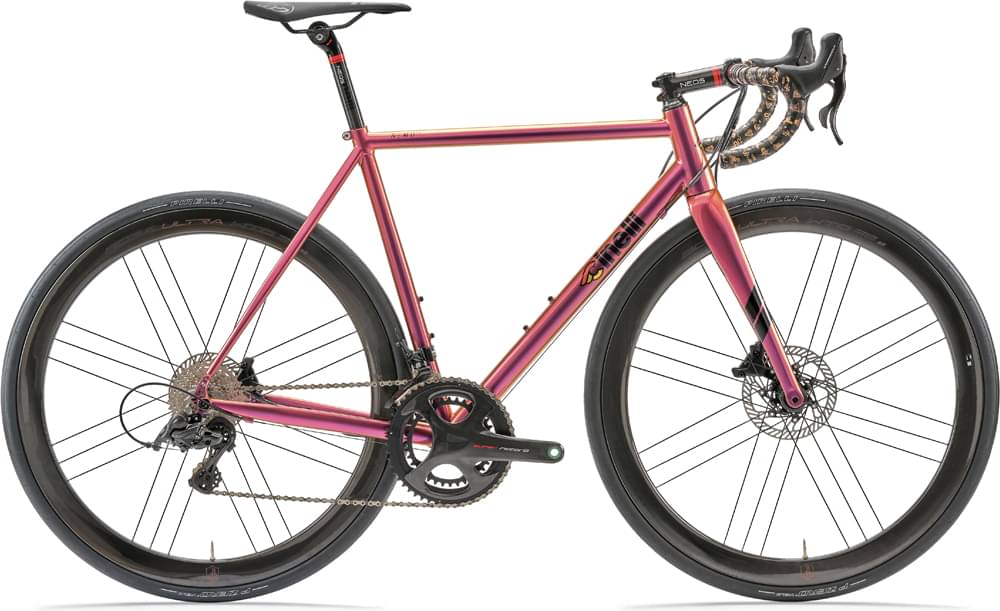

Nemo Tig Disc Super Record EPS completes the Cinelli Nemo model. Cinelli launched 33 bikes of this model so far. You can easily view all of the Cinelli Nemo bikes models from 2022, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Nemo Tig Disc Super Record EPS components
Fork material
The fork on this bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the Nemo Tig Disc Super Record EPS bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nemo Tig Disc Super Record EPS comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Nemo Tig Disc Super Record EPS comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
