Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS SPIRIT HSS Tubeset
Suspension Fork
COLUMBUS FUTURA Disc 1-1/8” - 1-1/2”
Drivetrain
Rear Derailleur
Shimano Ultegra / 11 Speed
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra / 11-30T
Crank
Shimano Ultegra / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
Shimano BSA
Chain
Shimano Ultegra
Wheels
Rims
Fulcrum 600 DB
Tires
Pirelli PZero / 700x28c
Brakes
Brakes
Shimano Ultegra / 160mm Front rotor - 140mm Rear rotor
Cockpit
Stem
CINELLI VAI, Size 90 (XS/S) 100 (M) 110 (L/XL/XXL)
Handlebar
CINELLI VAI, Size 40 (XS/S) 42 (M/L/XL) 44 (XXL)
Headset
IS 42/28,6 | IS 52/40
Seat
Saddle
Selle Italia Novus
Seatpost
CINELLI VAI / Ø27,2 / L350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.47 mm | 1.48 mm | 1.49 mm | 1.55 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 572 mm | 573 mm | 575 mm | 585 mm | 605 mm | 609 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 65 mm | 59 mm | 56 mm | 55 mm | 53 mm |
| Stack | 505 mm | 515 mm | 542 mm | 559 mm | 582 mm | 608 mm |
| Reach | 364 mm | 366 mm | 368 mm | 378 mm | 390 mm | 392 mm |
| Top Tube Length | 505 mm | 515 mm | 530 mm | 545 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 120 mm | 145 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 968 mm | 970 mm | 980 mm | 1000 mm | 1004 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 730 mm | 755 mm | 777 mm | 794 mm | 818 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

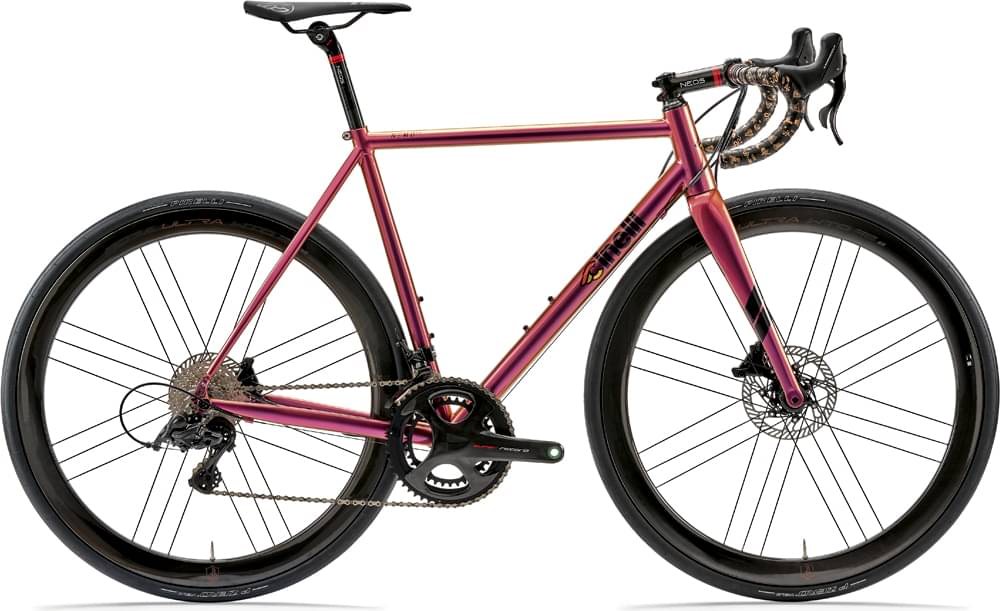

Nemo Tig Disc Ultegra is part of the Cinelli Nemo model. Cinelli released 33 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Cinelli NEMO TIG – ULTEGRA 2023 has a starting price of 4024$. Cinelli NEMO TIG DISC – RED ETAP AXS 2023 on the other hand is the most expensive at 9917$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
Nemo Tig Disc Ultegra has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
As for the wheels, Cinelli Nemo Tig Disc Ultegra 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nemo Tig Disc Ultegra has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Cinelli Nemo Tig Disc Ultegra bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
