Compare
Remove

Cinelli Nemo Tig Disc Ultegra Di2 2022

2022 Road
Open compare Use advisor

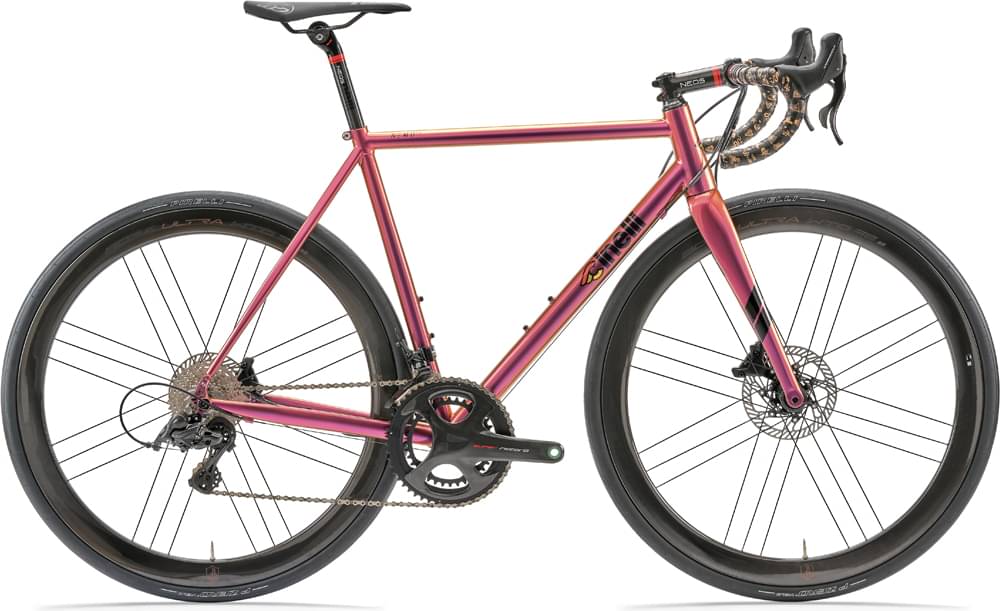

Cinelli Nemo Tig Disc Ultegra Di2 2022

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Steel
  • Wheels 700c
  • Groupset Ultegra Di2
  • Suspension Rigid
  • Drivetrain 2 × 12 Electronic
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    158cm - 167cm

  • SM

    165cm - 173cm

  • MD

    169cm - 180cm

  • LG

    177cm - 186cm

  • XL

    183cm - 191cm

  • XXL

    186cm - 194cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

COLUMBUS SPIRIT HSS Tubeset

Suspension Fork

COLUMBUS FUTURA Disc 1-1/8” - 1-1/2”

Drivetrain

Rear Derailleur

Shimano Ultegra Di2 R8150 / 12 Speed

Shift Levers

Shimano Ultegra Di2 R8170

Cassette

Shimano Ultegra / 11-30T

Crank

Shimano Ultegra / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)

Bottom Bracket

Shimano BSA

Chain

Shimano M8100

Wheels

Rims

Fulcrum 600 DB

Tires

Pirelli Pzero / 700x28c

Brakes

Brakes

Shimano Ultegra / 160mm Front rotor - 140mm Rear rotor

Cockpit

Stem

CINELLI VAI, Size 90 (XS/S) 100 (M) 110 (L/XL/XXL)

Handlebar

CINELLI VAI, Size 40 (XS/S) 42 (M/L/XL) 44 (XXL)

Headset

IS 42/28,6 | IS 52/40

Seat

Saddle

Selle Italia Novus

Seatpost

CINELLI VAI / Ø27,2 / L350

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLGXLXXL
Stack Reach Ratio
1.39 mm1.41 mm1.47 mm1.48 mm1.49 mm1.55 mm
Bottom Bracket Height
266 mm266 mm266 mm266 mm266 mm266 mm
Front Center
572 mm573 mm575 mm585 mm605 mm609 mm
Rake
45 mm45 mm45 mm45 mm45 mm45 mm
Trail
68 mm65 mm59 mm56 mm55 mm53 mm
Stack
505 mm515 mm542 mm559 mm582 mm608 mm
Reach
364 mm366 mm368 mm378 mm390 mm392 mm
Top Tube Length
505 mm515 mm530 mm545 mm570 mm585 mm
Seat Tube Angle
74.5 °74 °73.5 °73.5 °73 °72.5 °
Seat Tube Length
480 mm510 mm540 mm560 mm590 mm610 mm
Head Tube Angle
71 °71.5 °72.5 °73 °73 °73.5 °
Head Tube Length
110 mm120 mm145 mm160 mm185 mm210 mm
Chainstay Length
405 mm405 mm405 mm405 mm405 mm405 mm
Wheelbase
967 mm968 mm970 mm980 mm1000 mm1004 mm
Bottom Bracket Drop
70 mm70 mm70 mm70 mm70 mm70 mm
Standover Height
730 mm755 mm777 mm794 mm818 mm840 mm
Wheels700700700700700700
Rider Min Height158 cm165 cm169 cm177 cm183 cm186 cm
Rider Max Height167 cm173 cm180 cm186 cm191 cm194 cm

Model Overview

Nemo Tig Disc Ultegra Di2 completes the Cinelli Nemo model. Cinelli released 33 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.

Safety

When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.

Average price for Race bikes

Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.

Nemo Tig Disc Ultegra Di2 components

Fork material

Nemo Tig Disc Ultegra Di2 has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.

Wheels size

When it comes to wheels, the Nemo Tig Disc Ultegra Di2 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.

Brakes

Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.

Sizes

This bike is available in 6 sizes. They vary from 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
