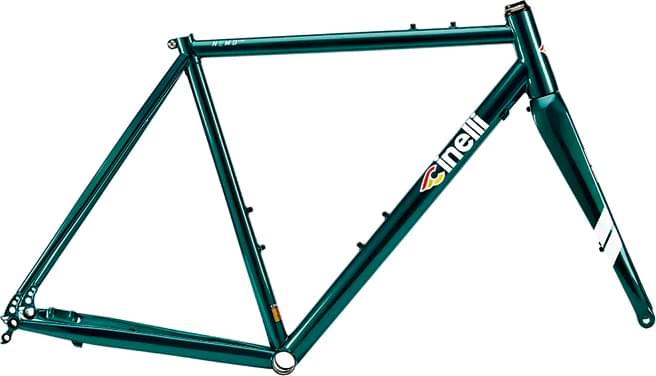

Cinelli NEMO TIG GRAVEL – FRAME SET 2023
2023 Road
Estimate price |
2,897$
Weight | 2.35 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Spirit HSS Tubeset
Suspension Fork
Columbus Futura Gravel 1-1/8” - 1-1/4” Carbon Monoc.
Drivetrain
Bottom Bracket
BSA 68 mm / Press Fit 86,5 x 41 (Custom)
Brakes
Brakes
Flat Mount Disc Brake, rotor size up to 160 mm
Cockpit
Headset
IS 42/28,6 | IS 47/33
Seat
Seatpost
Ø 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.45 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 582 mm | 594 mm | 597 mm | 596 mm | 616 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 74 mm | 74 mm | 66 mm | 61 mm | 62 mm |
| Stack | 503 mm | 517 mm | 545 mm | 558 mm | 582 mm |
| Reach | 368 mm | 375 mm | 377 mm | 382 mm | 395 mm |
| Top Tube Length | 509 mm | 520 mm | 535 mm | 549 mm | 574 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 100 mm | 115 mm | 140 mm | 150 mm | 175 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 998 mm | 1010 mm | 1013 mm | 1012 mm | 1031 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
NEMO TIG GRAVEL – FRAME SET completes the Cinelli Nemo model. There are 33 frames that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Cinelli NEMO TIG – RIM BRAKE FRAME SET 2023 is the most affordable frame of this model and has a price of 2325$. On the other hand, Cinelli NEMO TIG – DISC BRAKE FRAME SET 2023, is the most expensive and costs 2644$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2023 and its price was 2644$. Doing a quick comparison, we notice that NEMO TIG GRAVEL – FRAME SET price is 75.68% more expensive than the average cost of a Gravel frame.
Average weight for Gravel frames
The average weight for Gravel frames is 1.93 kg (4.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Cinelli NEMO TIG GRAVEL – FRAME SET it’s weighing 2.35 kg (5.18 lbs). At this weight, is much heavier than average. In conclusion, the average Gravel frame weighs 21.76% less than NEMO TIG GRAVEL – FRAME SET.
NEMO TIG GRAVEL – FRAME SET components
Fork material
The fork is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Cinelli NEMO TIG GRAVEL – FRAME SET frame has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
