Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS Spirit HSS Tubeset
Suspension Fork
COLUMBUS Gravel 1-1/8” - 1-1/4”
Drivetrain
Rear Derailleur
SRAM Rival / 11 Speed / Long cage
Shift Levers
SRAM Rival 1x HRD
Cassette
SRAM Rival / 11-42T
Crank
SRAM Rival / 42T, Size 170 (XS) 172.5 (S/M/L) 175 (XL/XXL)
Bottom Bracket
SRAM GXP BSA
Chain
SRAM Rival
Wheels
Rims
Fulcrum Rapid Red 500 DB / Centerlock / 700c
Tires
Pirelli Cinturato H / 700x35c / Tan-sidewall
Brakes
Brakes
SRAM Rival Hydro disc / SRAM Centerline 160mm F&R rotors
Cockpit
Stem
CINELLI VAI, Size 90 (XS/S) 100 (M) 110 (L/XL/XXL)
Handlebar
CINELLI VAI / Ø 31,8 / Drop 122,5mm Reach 74,5mm, Size 40 (XS/S) 42 (M/L/XL) 44 (XXL)
Headset
IS 42/28,6 | IS 47/33
Seat
Saddle
SSM Shortfit
Seatpost
CINELLI VAI / Ø27,2 / L350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.45 mm | 1.46 mm | 1.47 mm | 1.54 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 582 mm | 594 mm | 597 mm | 596 mm | 616 mm | 620 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 74 mm | 74 mm | 66 mm | 61 mm | 62 mm | 57 mm |
| Stack | 503 mm | 517 mm | 545 mm | 558 mm | 582 mm | 608 mm |
| Reach | 368 mm | 375 mm | 377 mm | 382 mm | 395 mm | 395 mm |
| Top Tube Length | 509 mm | 520 mm | 535 mm | 549 mm | 574 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 100 mm | 115 mm | 140 mm | 150 mm | 175 mm | 200 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 998 mm | 1010 mm | 1013 mm | 1012 mm | 1031 mm | 1036 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

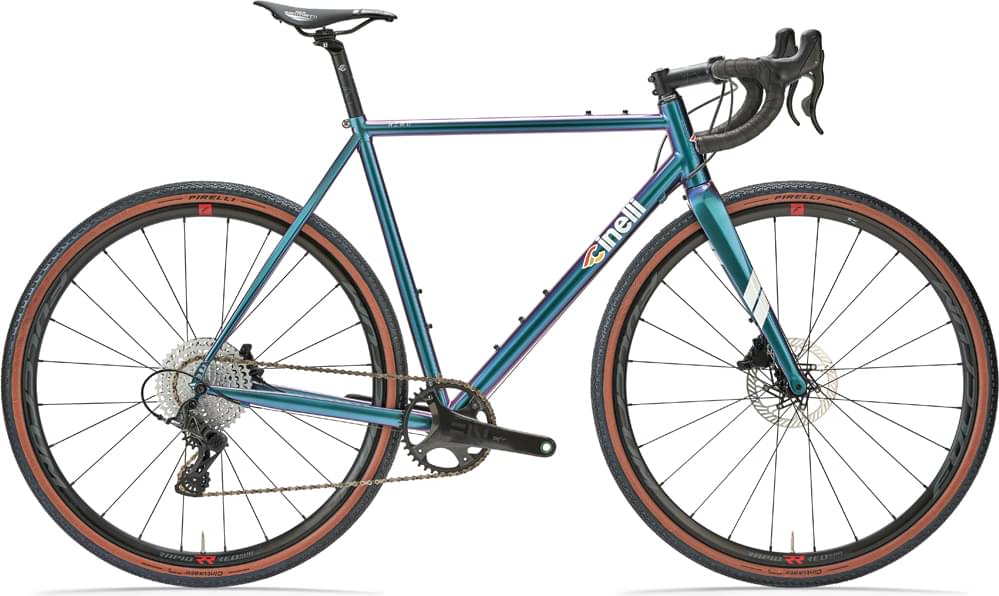

Nemo Tig Gravel Rival 1x is a Cinelli Nemo model. 33 bikes variations carry this model name so far. You can easily view all of the Cinelli Nemo bikes models from 2022, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Nemo Tig Gravel Rival 1x components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When leaving the production line, the Nemo Tig Gravel Rival 1x model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nemo Tig Gravel Rival 1x comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
