Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS Spirit HSS Tubeset
Suspension Fork
COLUMBUS Gravel 1-1/8” - 1-1/4”
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR / 12 Speed / Long cage
Shift Levers
SRAM Rival AXS
Cassette
SRAM Rival XPLR/ 10-44T
Crank
SRAM Rival wide / 40T, Size 170 (S) 172.5 (M/L) 175 (XL)
Bottom Bracket
SRAM DUB BB386EVO
Chain
SRAM Rival
Wheels
Rims
Fulcrum Rapid Red 500 DB / Centerlock / 700c
Tires
Pirelli Cinturato H / 700x35c / tan sidewall
Brakes
Brakes
SRAM Rival HRD / SRAM Paceline 160mm F&R rotors
Cockpit
Stem
CINELLI VAI, Size 90 (XS/S) 100 (M) 110 (L/XL/XXL)
Handlebar
Cinelli Vai / Ø 31,8 / Drop 122,5mm Reach 74.5mm, Size 40 (XS/S) 42 (M/L/XL) 44 (XXL)
Headset
IS 42/28,6 | IS 47/33
Seat
Saddle
SSM Shortfit
Seatpost
CINELLI VAI / Ø27,2 / L350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.45 mm | 1.46 mm | 1.47 mm | 1.54 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 582 mm | 594 mm | 597 mm | 596 mm | 616 mm | 620 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 74 mm | 74 mm | 66 mm | 61 mm | 62 mm | 57 mm |
| Stack | 503 mm | 517 mm | 545 mm | 558 mm | 582 mm | 608 mm |
| Reach | 368 mm | 375 mm | 377 mm | 382 mm | 395 mm | 395 mm |
| Top Tube Length | 509 mm | 520 mm | 535 mm | 549 mm | 574 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 100 mm | 115 mm | 140 mm | 150 mm | 175 mm | 200 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 998 mm | 1010 mm | 1013 mm | 1012 mm | 1031 mm | 1036 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

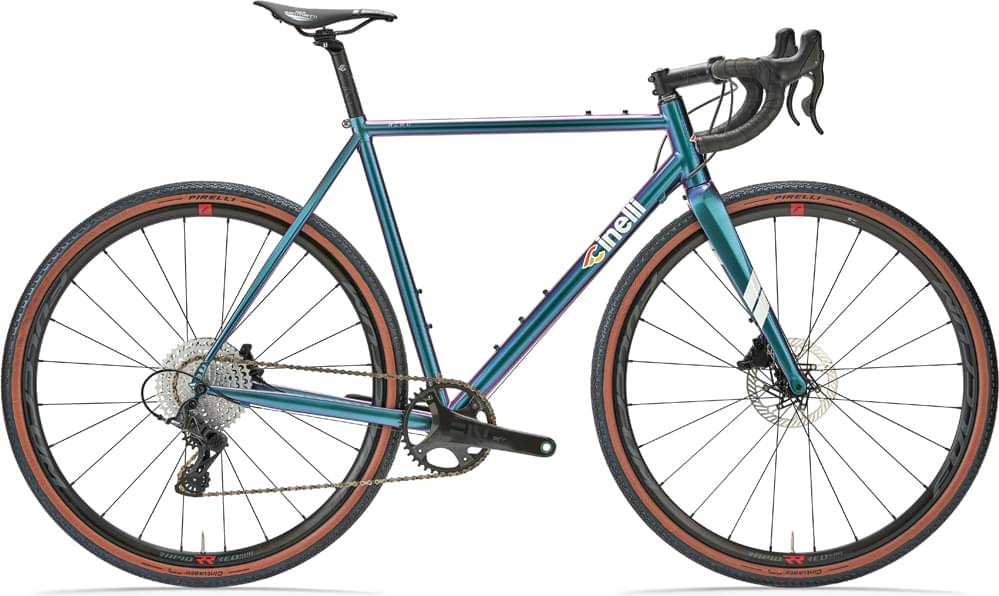

Nemo Tig Gravel Rival AXS XPLR is a Cinelli Nemo model. 33 bikes variations carry this model name so far. Take a sneak peek at all Cinelli Nemo bikes models from 2022, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Nemo Tig Gravel Rival AXS XPLR components
Fork material
Nemo Tig Gravel Rival AXS XPLR has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
As for the wheels, Cinelli Nemo Tig Gravel Rival AXS XPLR 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nemo Tig Gravel Rival AXS XPLR comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Cinelli Nemo Tig Gravel Rival AXS XPLR bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
