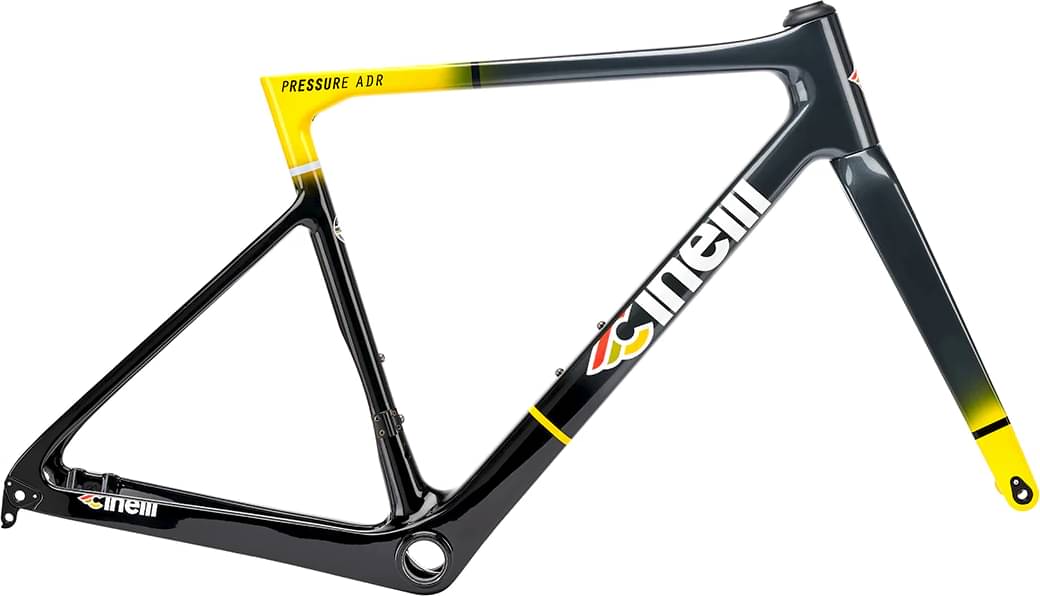

Cinelli PRESSURE ADR – FRAME-KIT 2024
2024 Road
Estimate price |
2,676$
Weight | 1.41 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Carbon Monocoque
Suspension Fork
Columbus Disc 1-1/2” Carbon Monocoque Internal Cable Routing
Drivetrain
Rear Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8070
Cassette
Shimano Ultegra R8000 11/30t
Crank
Shimano Ultegra R8000 52/36t
Bottom Bracket
Press Fit 86,5 x 41 mm
Chain
Shimano Ultegra R8000
Wheels
Tires
Vittoria Zaffiro pro 700x28
Brakes
Brakes
Shimano Ultegra R8070
Cockpit
Stem
Alu 6061
Handlebar
Cinelli Boss
Headset
IS 52/28,6 | IS 52/40
Seat
Saddle
Selle Italia Model X
Seatpost
Cinelli 6061 ø 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.376 mm | 1.372 mm | 1.388 mm | 1.418 mm | 1.447 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 582 mm | 592 mm | 600 mm | 610 mm | 619 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 512 mm | 524 mm | 540 mm | 560 mm | 583 mm |
| Reach | 372 mm | 382 mm | 389 mm | 395 mm | 403 mm |
| Top Tube Length | 519 mm | 537 mm | 555 mm | 572 mm | 590 mm |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Length | 112 mm | 123 mm | 138 mm | 158 mm | 180 mm |
| Chainstay Length | 406 mm | 406 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 978 mm | 988 mm | 998 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
PRESSURE ADR – FRAME-KIT is a Cinelli Pressure model. Cinelli released 27 frames variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Cinelli PRESSURE ADR – FRAME-KIT 2024 is the most affordable frame of this model and has a price of 2436$. On the other hand, Cinelli PRESSURE – FRAME-KIT 2024, is the most expensive and costs 3918$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero frames
Our math shows that the average cost of a dependable Aero frame is 2657$. However, even though the average price of an Aero frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Cinelli released this model in 2024, its price was 2436$. Comparing the average cost of an Aero frame to this one, you will see that PRESSURE ADR – FRAME-KIT price is 9.07% lower.
Aero frames average weight
If we make a quick analysis of the average weight of an Aero frame, we get 1.79 kg (3.95 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, PRESSURE ADR – FRAME-KIT has a weight of 1.41 kg (3.11 lbs). In short, the average Aero frame weight is 26.95% higher than this one.
Overview of components
Fork material
PRESSURE ADR – FRAME-KIT has a carbon fork, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cinelli PRESSURE ADR – FRAME-KIT is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This frame is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
