Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS T800 Carbon Monocoque
Suspension Fork
COLUMBUS Disc 1-1/8” - 1-1/2” Tapered Carbon Monocoque
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250 / 12 Speed
Shift Levers
Shimano Dura-Ace Di2 R9270
Cassette
Shimano Dura-Ace / 11-30T
Crank
Shimano Dura-Ace / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
Shimano Dura-Ace
Chain
Shimano M9100
Wheels
Rims
Fulcrum Wind 550 DB
Tires
VITTORIA Zaffiro Pro / 700x28c
Brakes
Brakes
Shimano Dura-Ace / 160mm Front rotor - 140mm Rear rotor
Cockpit
Stem
/
Handlebar
Vision Metron 5D ACR 100-40 (XS/S) 110-42 (M/L) 120-42 (XL)
Headset
IS 52/28.6 | IS 52/40 FSA ACR
Seat
Saddle
Selle Italia Novus
Seatpost
CINELLI Carbon Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.41 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 571 mm | 579 mm | 590 mm | 600 mm | 611 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 66 mm | 62 mm | 59 mm | 56 mm |
| Stack | 504 mm | 520 mm | 531 mm | 552 mm | 573 mm |
| Reach | 358 mm | 366 mm | 377 mm | 386 mm | 395 mm |
| Top Tube Length | 510 mm | 522 mm | 537 mm | 552 mm | 567 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 963 mm | 971 mm | 982 mm | 993 mm | 1003 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

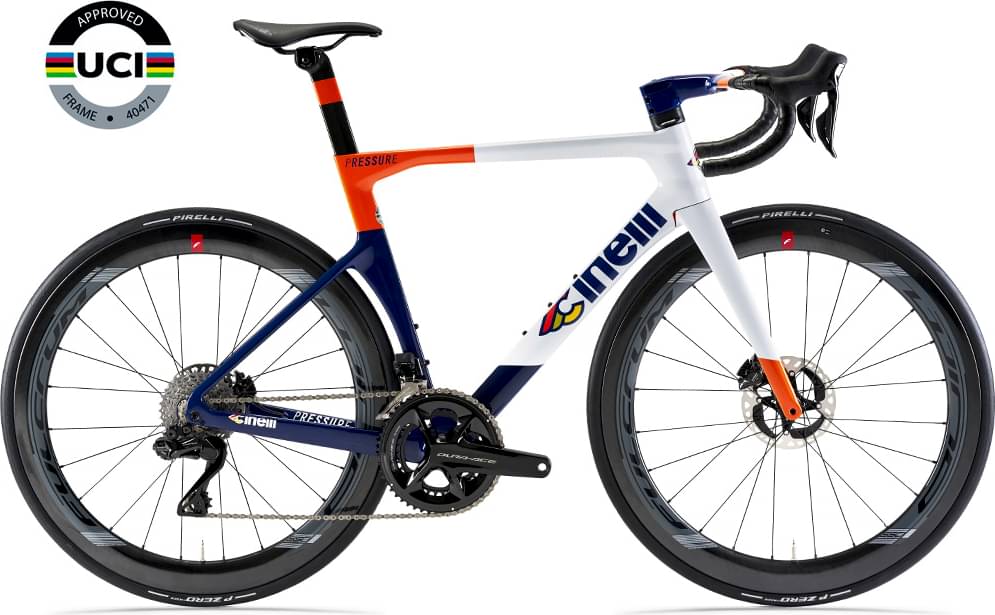

Pressure Dura Ace Di2 belongs to the Cinelli Pressure model. 15 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Pressure Dura Ace Di2 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Pressure Dura Ace Di2 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
