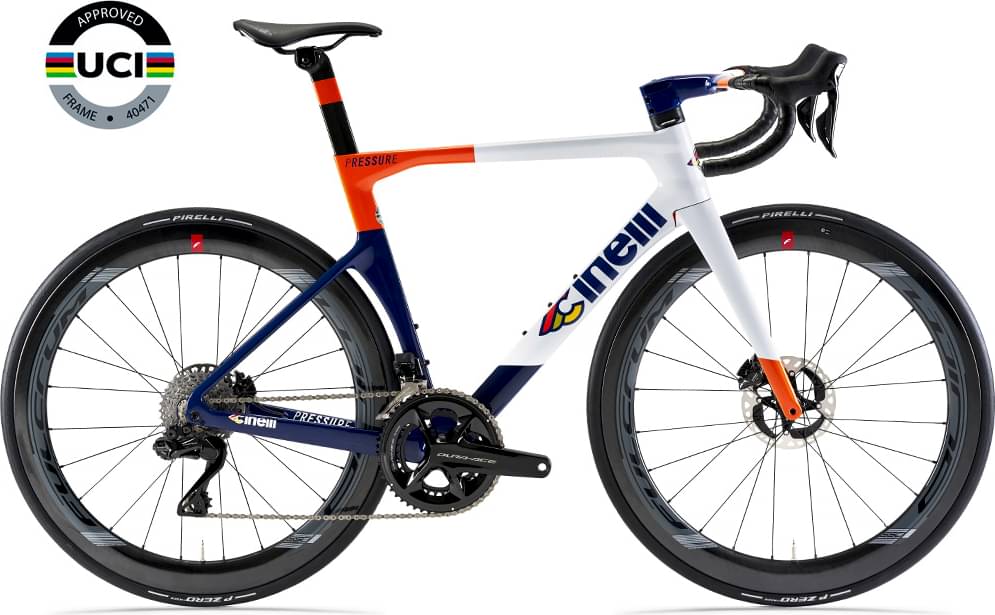

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Super Record EPS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS T800 Carbon Monocoque
Suspension Fork
COLUMBUS Disc 1-1/8” - 1-1/2” Tapered Carbon Monocoque
Drivetrain
Rear Derailleur
Campagnolo Super Record EPS / 12 Speed
Shift Levers
Campagnolo Super Record EPS
Cassette
Campagnolo Super Record / 11-32T
Crank
Campagnolo Super Record / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
Campagnolo Pressfit
Chain
Campagnolo Super Record
Wheels
Rims
Campagnolo Bora Ultra WTO 45 DB
Tires
VITTORIA Zaffiro Pro / 700x28c
Brakes
Brakes
Campagnolo Super Record / 160mm Front rotor - 140mm Rear rotor
Cockpit
Stem
/
Handlebar
Vision Metron 5D ACR 100-40 (XS/S) 110-42 (M/L) 120-42 (XL)
Headset
IS 52/28.6 | IS 52/40 FSA ACR
Seat
Saddle
Selle Italia Novus
Seatpost
CINELLI Carbon Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.41 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 571 mm | 579 mm | 590 mm | 600 mm | 611 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 66 mm | 62 mm | 59 mm | 56 mm |
| Stack | 504 mm | 520 mm | 531 mm | 552 mm | 573 mm |
| Reach | 358 mm | 366 mm | 377 mm | 386 mm | 395 mm |
| Top Tube Length | 510 mm | 522 mm | 537 mm | 552 mm | 567 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 963 mm | 971 mm | 982 mm | 993 mm | 1003 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Pressure Super Record EPS is a Cinelli Pressure model. 15 bikes variations carry this model name so far. You can easily view all of the Cinelli Pressure bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Pressure Super Record EPS bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cinelli Pressure Super Record EPS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Pressure Super Record EPS comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
