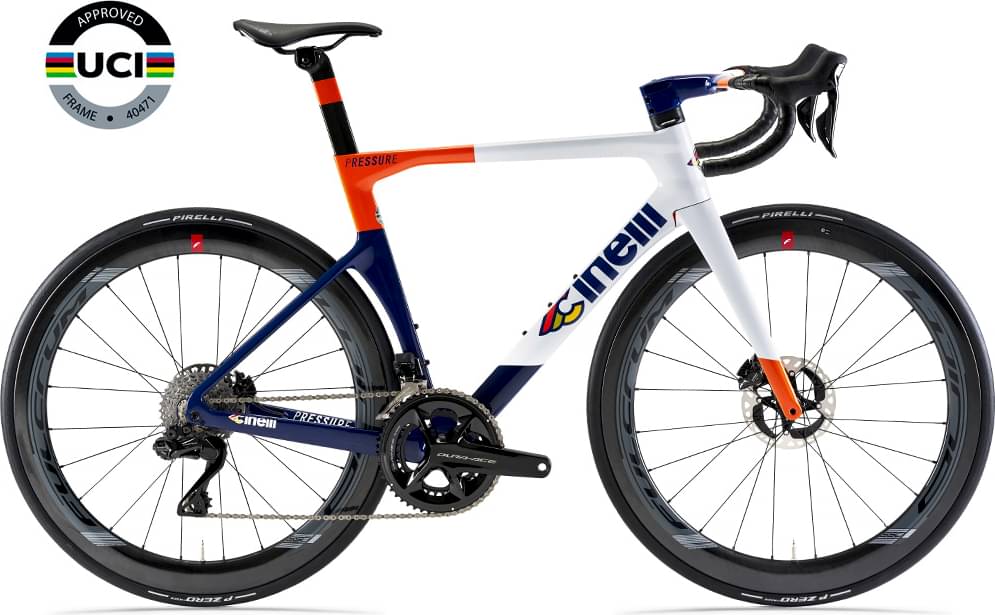

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS T800 Carbon Monocoque
Suspension Fork
COLUMBUS Disc 1-1/8” - 1-1/2” Tapered Carbon Monocoque
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150 / 12 Speed
Shift Levers
Shimano Ultegra Di2 R8170
Cassette
Shimano Ultegra / 11-30T
Crank
Shimano Ultegra / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
Shimano / SM-BB72-41
Chain
Shimano M8100
Wheels
Rims
Fulcrum 600 DB
Tires
VITTORIA Zaffiro Pro / 700x28c
Brakes
Brakes
Shimano Ultegra / 160mm Front rotor - 140mm Rear rotor
Cockpit
Stem
/
Handlebar
Vision Metron 5D ACR 100-40 (XS/S) 110-42 (M/L) 120-42 (XL)
Headset
IS 52/28.6 | IS 52/40 FSA ACR
Seat
Saddle
Sella Italia Novus
Seatpost
CINELLI Carbon Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.41 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 571 mm | 579 mm | 590 mm | 600 mm | 611 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 66 mm | 62 mm | 59 mm | 56 mm |
| Stack | 504 mm | 520 mm | 531 mm | 552 mm | 573 mm |
| Reach | 358 mm | 366 mm | 377 mm | 386 mm | 395 mm |
| Top Tube Length | 510 mm | 522 mm | 537 mm | 552 mm | 567 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 963 mm | 971 mm | 982 mm | 993 mm | 1003 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Pressure Ultegra Di2 is a Cinelli Pressure model. Cinelli launched 15 bikes of this model so far. You can easily view all of the Cinelli Pressure bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Pressure Ultegra Di2 components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Pressure Ultegra Di2 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Pressure Ultegra Di2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
