Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS Spirit Super Pista Double Butted Tubeset
Suspension Fork
Columbus SL PISTA 1" Threaded
Drivetrain
Bottom Bracket
ITA 70mm
Brakes
Brakes
none
Cockpit
Headset
EC30/25.4-24TPI | EC30/26
Seat
Seatpost
Ø 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 50cm | 51cm | 52cm | 57cm | 53cm | 54cm | 56cm | 58cm | 59cm | 55cm | 60cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.288 mm | 1.299 mm | 1.298 mm | 1.297 mm | 1.409 mm | 1.297 mm | 1.323 mm | 1.376 mm | 1.41 mm | 1.431 mm | 1.338 mm | 1.445 mm | 1.462 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 567 mm | 567 mm | 568 mm | 569 mm | 580 mm | 571 mm | 572 mm | 578 mm | 585 mm | 583 mm | 575 mm | 586 mm | 592 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 65 mm | 60 mm | 63 mm | 73 mm | 55 mm | 77 mm | 65 mm | 57 mm | 54 mm | 53 mm | 68 mm | 56 mm | 55 mm |
| Stack | 488 mm | 500 mm | 505 mm | 515 mm | 562 mm | 520 mm | 532 mm | 553 mm | 567 mm | 578 mm | 542 mm | 588 mm | 598 mm |
| Reach | 379 mm | 385 mm | 389 mm | 397 mm | 399 mm | 401 mm | 402 mm | 402 mm | 402 mm | 404 mm | 405 mm | 407 mm | 409 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 74 ° | 75 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 75 ° | 74 ° | 74 ° |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 74.5 ° | 73 ° | 74 ° | 74.5 ° | 74.5 ° | 75 ° | 74 ° | 75 ° | 75 ° |
| Head Tube Length | 88 mm | 96 mm | 101 mm | 111 mm | 157 mm | 118 mm | 127 mm | 147 mm | 166 mm | 176 mm | 137 mm | 186 mm | 196 mm |
| Chainstay Length | 388 mm | 388 mm | 388 mm | 388 mm | 390 mm | 388 mm | 388 mm | 388 mm | 390 mm | 390 mm | 388 mm | 390 mm | 390 mm |
| Wheelbase | 946 mm | 946 mm | 948 mm | 949 mm | 962 mm | 951 mm | 952 mm | 958 mm | 967 mm | 965 mm | 955 mm | 968 mm | 974 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

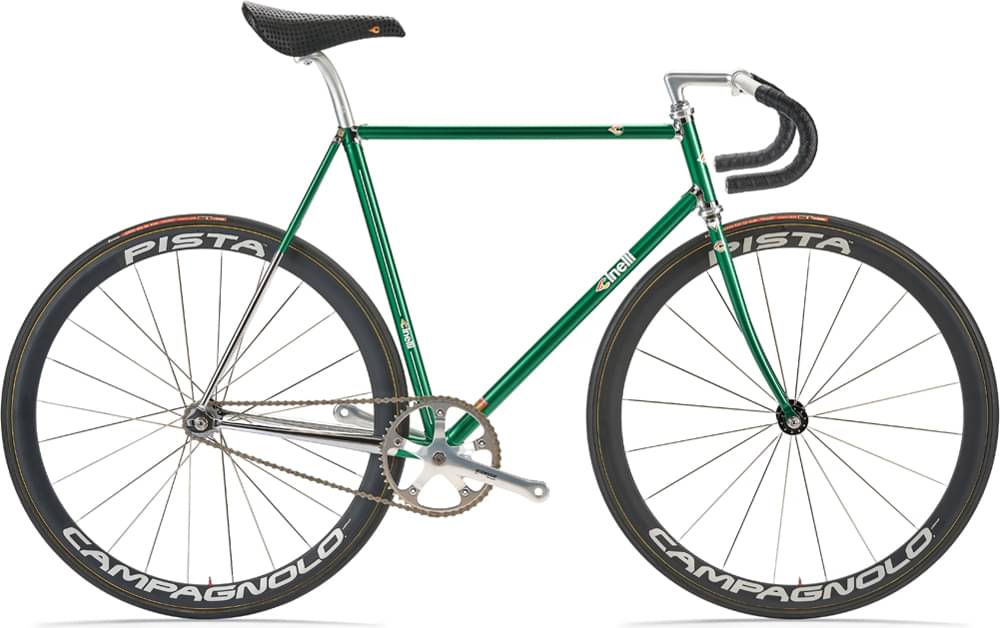

Supercorsa Pista Frameset completes the Cinelli Supercorsa model. Cinelli released 5 frames variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race frames
If you want an acceptable Race frame you should know that the average price is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Average weight for Race frames
On a deeper look, we notice that the average weight of a Race frame is 1.41 kg (3.11 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Supercorsa Pista Frameset has a weight of 2.45 kg (5.4 lbs). In short, the average Race frame weight is 73.76% lower than this one.
Overview of components
Fork material
When it comes to the fork, this frame has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
