Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Xcr Tubeset
Suspension Fork
Columbus Futura Disc 1-1/8” - 1-1/2” Carbon Monocoque
Drivetrain
Bottom Bracket
BSA 68 mm
Brakes
Brakes
Flat Mount Disc Brake, rotor size up to 160 mm
Cockpit
Headset
ZS 44/28,6 | EC 44/40
Seat
Seatpost
Ø 31,6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.48 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 570 mm | 572 mm | 579 mm | 583 mm | 599 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 63 mm | 57 mm | 52 mm | 51 mm |
| Stack | 512 mm | 519 mm | 537 mm | 556 mm | 584 mm |
| Reach | 372 mm | 375 mm | 385 mm | 389 mm | 394 mm |
| Top Tube Length | 514 mm | 524 mm | 544 mm | 559 mm | 579 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 98 mm | 104 mm | 121 mm | 139 mm | 172 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 966 mm | 970 mm | 978 mm | 985 mm | 1001 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 71 mm | 68 mm |
| Standover Height | 724 mm | 737 mm | 761 mm | 786 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

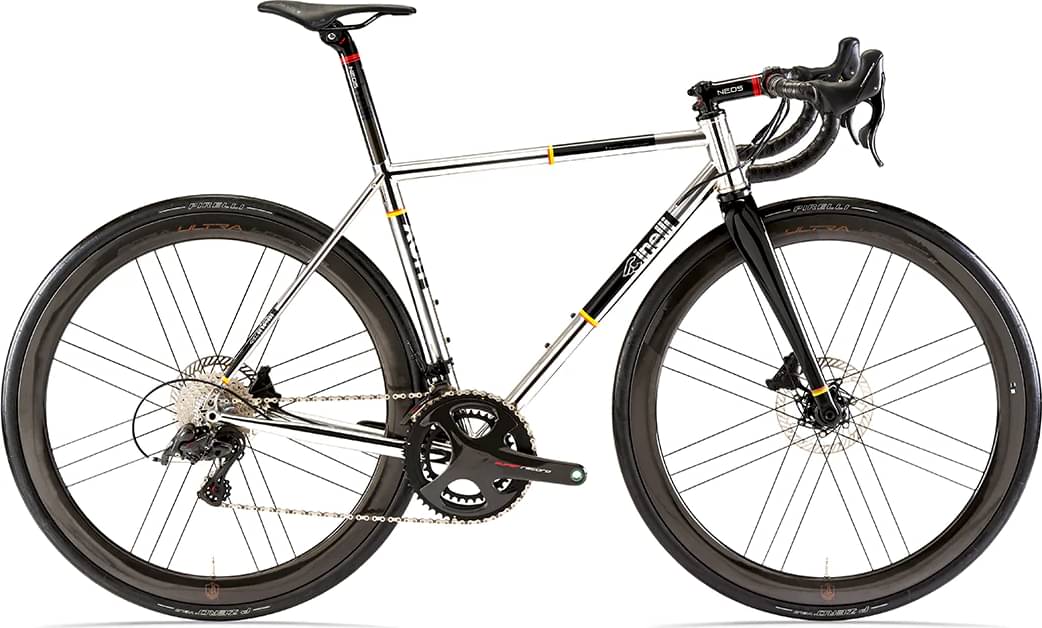

XCR DISC – complete bike belongs to the Cinelli Xcr model. 15 bikes variations carry this model name so far. Take a sneak peek at all Cinelli Xcr bikes models from 2023, by clicking here.
Model range prices
Cinelli XCR DISC – ULTEGRA DISC DI2 2023 is the cheapest bike model and costs 7103$. Cinelli XCR DISC – SUPER RECORD 2023 is the most expensive one and costs 12731$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on XCR DISC – complete bike are the 700c type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
