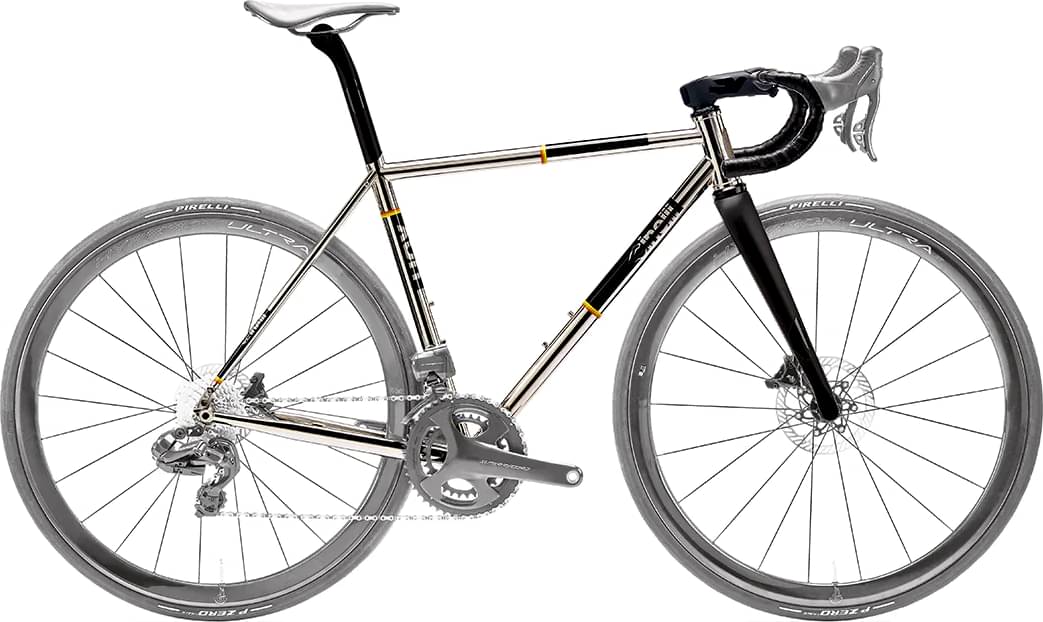

Cinelli XCR Disc – FRAME-KIT 2024
2024 Road
Estimate price |
5,817$
Weight | 2.13 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Xcr Tubeset
Suspension Fork
Columbus Trittico Carbon Road
Drivetrain
Bottom Bracket
T47 68 mm
Brakes
Brakes
Flat Mount Disc Brake, rotor size up to 160 mm
Cockpit
Headset
ZS 44/28,6 | EC 44/40
Seat
Seatpost
Ø 31,6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 570 mm | 572 mm | 579 mm | 583 mm | 599 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 491 mm | 498 mm | 516 mm | 535 mm | 560 mm |
| Top Tube Length | 515 mm | 525 mm | 545 mm | 560 mm | 580 mm |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Length | 98 mm | 104 mm | 121 mm | 139 mm | 172 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 415 mm | 415 mm |
| Wheelbase | 967 mm | 971 mm | 979 mm | 989 mm | 1005 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 71 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
XCR Disc – FRAME-KIT belongs to the Cinelli Xcr model. There are 20 frames that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Cinelli XCR Disc – FRAME-KIT price was 5295$. If we compare this with the average Race frame cost we notice that the price is 116.56% more expensive.
Race frames average weight
The average weight for Race frames is 1.41 kg (3.11 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Cinelli XCR Disc – FRAME-KIT it’s weighing 2.13 kg (4.7 lbs). At this weight, is much heavier than average. In short, the average Race frame weight is 51.06% lower than this one.
XCR Disc – FRAME-KIT components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The XCR Disc – FRAME-KIT comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Cinelli XCR Disc – FRAME-KIT frame has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
