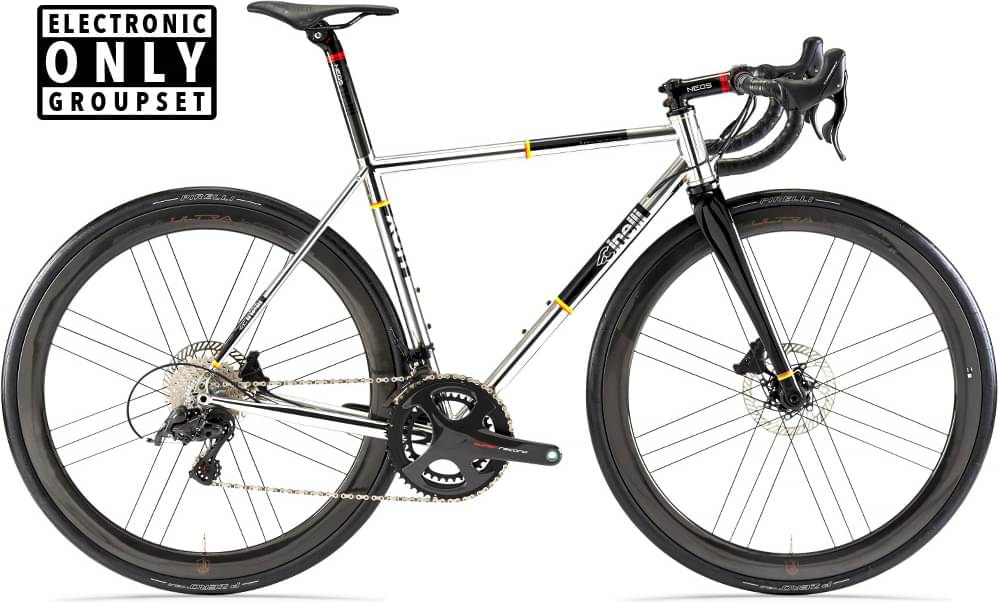

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Super Record EPS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS XCr Tubeset
Suspension Fork
COLUMBUS Futura Disc 1-1/8” - 1-1/2”
Drivetrain
Rear Derailleur
Campagnolo Super Record EPS / 12 Speed
Shift Levers
Campagnolo Super Record EPS
Cassette
Campagnolo Super Record / 11-32T
Crank
Campagnolo Super Record / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
Campagnolo T47
Chain
Campagnolo Super Record
Wheels
Rims
Campagnolo Bora Ultra WTO 45 DB
Tires
Pirelli PZero / 700x28c
Brakes
Brakes
Campagnolo Super Record / 160mm Front rotor - 140mm Rear rotor
Cockpit
Stem
Cinelli Neos, Size 90 (XS/S) 100 (M) 110 (L/XL)
Handlebar
Cinelli Neos, Size 40 (XS/S) 42 (M/L/XL)
Headset
ZS 44/28.6 | EC 44/40
Seat
Saddle
Selle Italia Novus
Seatpost
Cinelli Neos Ø31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.3 mm | 1.32 mm | 1.35 mm | 1.39 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 570 mm | 572 mm | 579 mm | 583 mm | 599 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 67 mm | 62 mm | 54 mm | 51 mm | 51 mm |
| Stack | 490 mm | 497 mm | 515 mm | 534 mm | 559 mm |
| Reach | 377 mm | 381 mm | 389 mm | 395 mm | 402 mm |
| Top Tube Length | 514 mm | 524 mm | 544 mm | 559 mm | 579 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 98 mm | 104 mm | 121 mm | 139 mm | 172 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 966 mm | 970 mm | 978 mm | 985 mm | 1001 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 71 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
XCR Disc Super Record EPS belongs to the Cinelli Xcr model. There are 15 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
XCR Disc Super Record EPS components
Fork material
XCR Disc Super Record EPS has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the XCR Disc Super Record EPS model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The XCR Disc Super Record EPS has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
XCR Disc Super Record EPS comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
