Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS XCr Tubeset
Suspension Fork
COLUMBUS Futura Disc 1-1/8” - 1-1/2”
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150 / 12 Speed
Shift Levers
Shimano Ultegra Di2 R8170
Cassette
Shimano Ultegra / 11-30T
Crank
Shimano Ultegra / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
FSA T47
Chain
Shimano M8100
Wheels
Rims
Fulcrum 600 DB
Tires
Pirelli Pzero / 700x28c
Brakes
Brakes
Shimano Ultegra / 160mm Front rotor - 140mm Rear rotor
Cockpit
Stem
CINELLI VAI, Size 90 (XS/S) 100 (M) 110 (L/XL)
Handlebar
CINELLI VAI, Size 40 (XS/S) 42 (M/L/XL)
Headset
ZS 44/28.6 | EC 44/40
Seat
Saddle
Selle Italia Novus
Seatpost
CINELLI VAI / Ø31.6 / L350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.48 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 570 mm | 572 mm | 579 mm | 583 mm | 599 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 63 mm | 57 mm | 52 mm | 51 mm |
| Stack | 512 mm | 519 mm | 537 mm | 556 mm | 584 mm |
| Reach | 372 mm | 375 mm | 385 mm | 389 mm | 394 mm |
| Top Tube Length | 514 mm | 524 mm | 544 mm | 559 mm | 579 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 98 mm | 104 mm | 121 mm | 139 mm | 172 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 966 mm | 970 mm | 978 mm | 985 mm | 1001 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 71 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

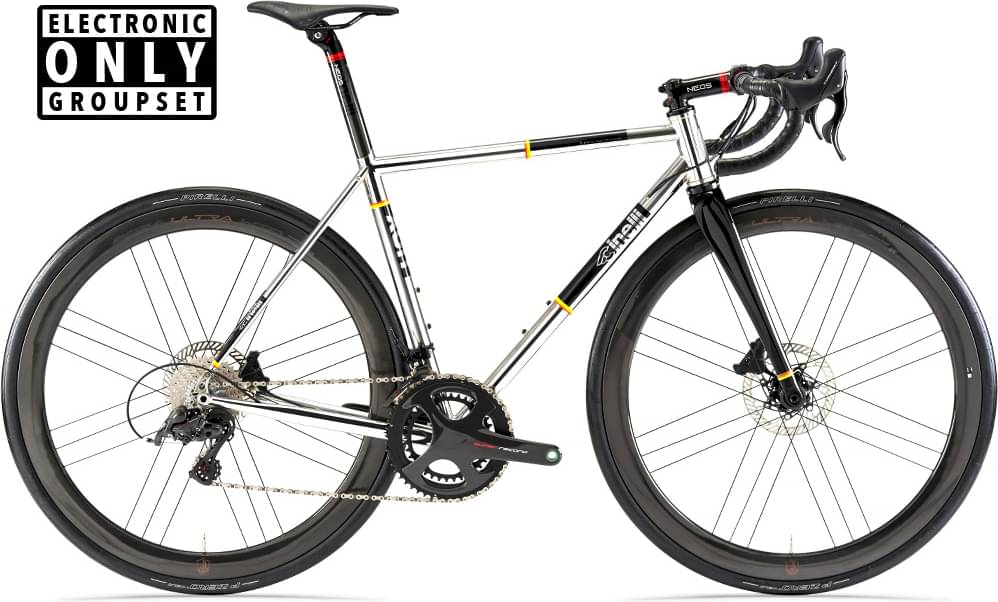

XCR Disc Ultegra Di2 completes the Cinelli Xcr model. 15 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Cinelli XCR DISC – ULTEGRA DISC DI2 2023 is the most economical model, with a starting price of 7103$. Cinelli XCR DISC – SUPER RECORD 2023 on the other hand costs 12731$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When leaving the production line, the XCR Disc Ultegra Di2 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The XCR Disc Ultegra Di2 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
