Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS XCr Tubeset
Suspension Fork
COLUMBUS Futura Caliper 1-1/8” - 1-1/2”
Drivetrain
Bottom Bracket
BSA 68mm
Brakes
Brakes
Standard rim brake
Cockpit
Headset
ZS 44/28.6 | EC 44/40
Seat
Seatpost
Ø 31,6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.3 mm | 1.32 mm | 1.35 mm | 1.39 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 570 mm | 572 mm | 579 mm | 583 mm | 599 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 62 mm | 54 mm | 54 mm | 54 mm |
| Stack | 490 mm | 497 mm | 515 mm | 534 mm | 559 mm |
| Reach | 377 mm | 381 mm | 389 mm | 395 mm | 402 mm |
| Top Tube Length | 514 mm | 524 mm | 544 mm | 559 mm | 579 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 98 mm | 104 mm | 121 mm | 139 mm | 172 mm |
| Chainstay Length | 402 mm | 404 mm | 404 mm | 407 mm | 407 mm |
| Wheelbase | 961 mm | 965 mm | 973 mm | 980 mm | 996 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 71 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

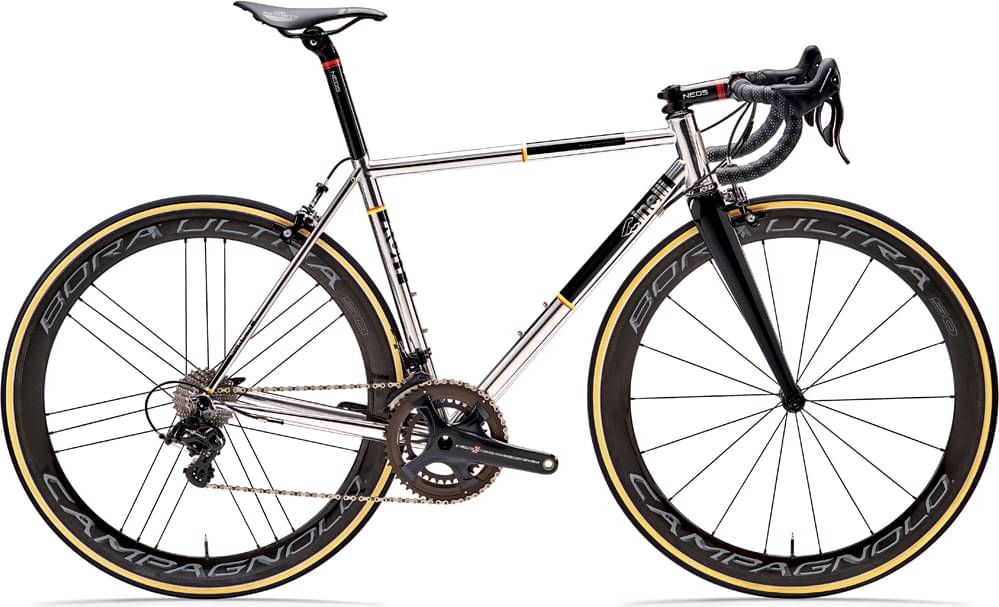

Xcr Frameset is a Cinelli Xcr model. Cinelli launched 15 frames of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race frames average price
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Race frames average weight
If we make a quick analysis of the average weight of a Race frame, we get 1.39 kg (3.06 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 2 kg (4.41 lbs), the Xcr Frameset model is much heavier than average. To sum up, it’s 43.88% heavier than the average weight of Race frames.
Overview of components
Fork material
The fork on this frame is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the frame.
Brakes
For your safety, it is important to have quality breaks on your bike. Cinelli Xcr Frameset has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
