Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
MCipollini Ago
Drivetrain
Rear Derailleur
-
Cassette
Campagnolo EKAR 1x13
Chain
Campagnolo EKAR 13s
Wheels
Rims
Campagnolo LEVANTE 700C DB 2WF N3W
Brakes
Brakes
Hydraulic Disc
Cockpit
Headset
CONICAL 1.1/2” 1.1/2”
Seat
Saddle
San Marco GROUND SHORT Open-fit Short 155
Seatpost
OFFSET 10 mm 110 g
Fit data

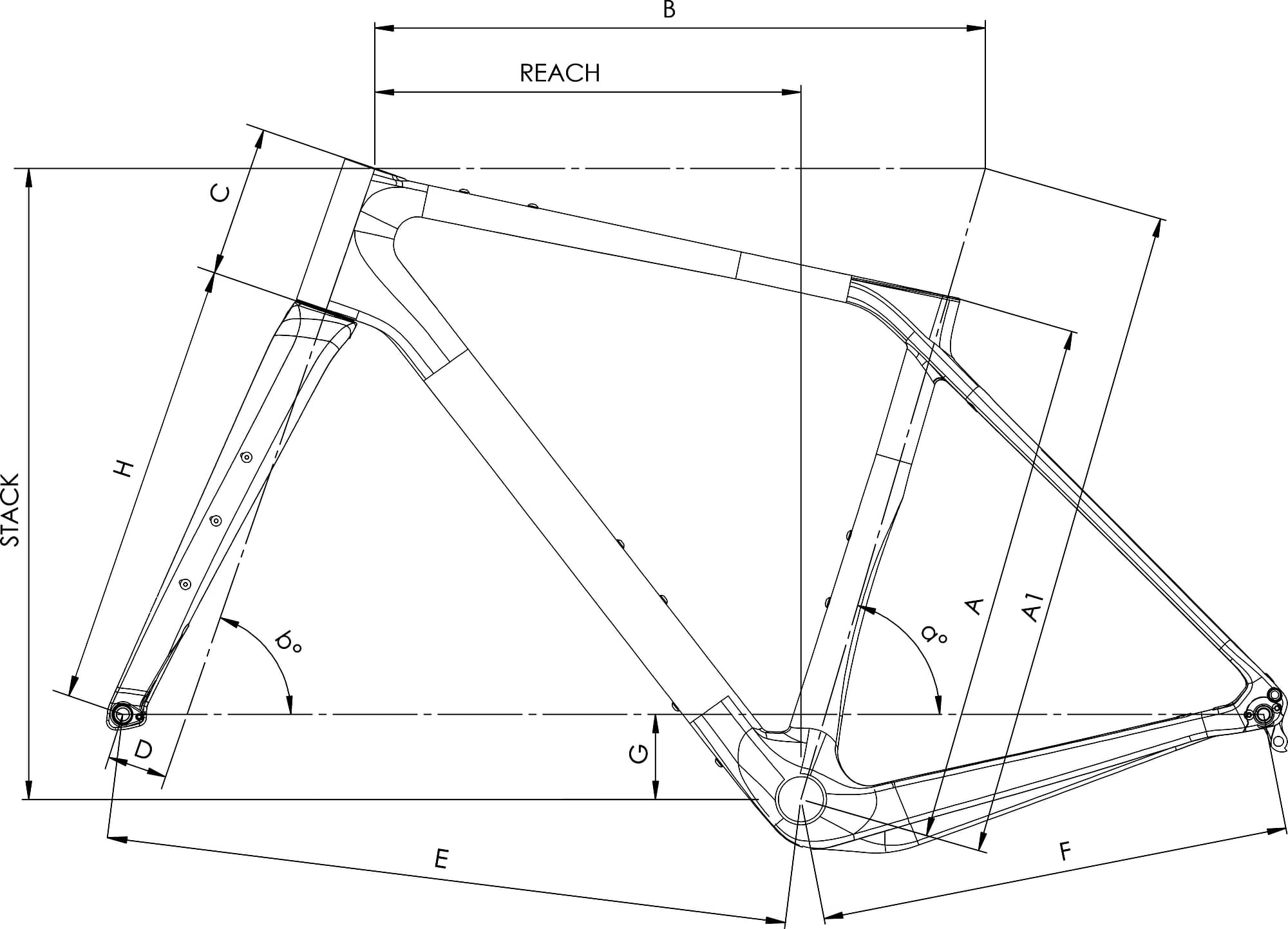

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 600 mm | 613 mm | 620 mm | 633 mm | 647 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 67 mm | 60 mm | 62 mm | 62 mm | 60 mm |
| Stack | 532 mm | 552 mm | 568 mm | 590 mm | 617 mm |
| Reach | 368 mm | 374 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 518 mm | 534 mm | 550 mm | 570 mm | 589 mm |
| Seat Tube Angle | 74.7 ° | 74 ° | 73.7 ° | 73.4 ° | 73 ° |
| Seat Tube Length | 430 mm | 455 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 70.3 ° | 70.7 ° | 71 ° | 71.2 ° | 71.5 ° |
| Head Tube Length | 101 mm | 122 mm | 136 mm | 158 mm | 185 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1011 mm | 1024 mm | 1031 mm | 1044 mm | 1058 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
AGO Campagnolo EKAR is part of the Cipollini Ago model. 4 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
AGO Campagnolo EKAR components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The AGO Campagnolo EKAR 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AGO Campagnolo EKAR comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
AGO Campagnolo EKAR comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
