Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MCipollini Ago
Suspension Fork
MCipollini Ago
Drivetrain
Rear Derailleur
Cambio RIVAL XPLR E-TAP AXS D1 Glossy Black 44 denti (10-44)
Crank
RIVAL D1 DUB Glossy Black 172,5 mm 40 (XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
Bottom Bracket
PRESSFIT 41 X 86,5 mm
Chain
PC RIVAL D1 12V CON P.LOCK 120
Wheels
Rims
Front: RAPID RED 500 2WF-R C23 AFS, Rear: RAPID RED 500 2WF-R C23 AFS
Tires
Vittoria Mezcal III 44-622 Gravel anthblk-blk G2.0
Brakes
Brakes
DISC BRAKE(FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)
Cockpit
Stem
FSA ST ROAD NS ACR alloy -6° A9 (XS: 70 mm, S: 80 mm, M: 90 mm, L: 100 mm, XL: 110 mm)
Handlebar
FSA HB A-WING Pro AGX alloy (XS: 420 mm, S/M/L: 440 mm, XL: 460 mm)
Headset
CONICAL 1.1/2”; 1.1/2”
Seat
Saddle
San Marco GROUND SHORT Open-fit Short 155
Seatpost
OFFSET 10 mm; 110 g
Fit data

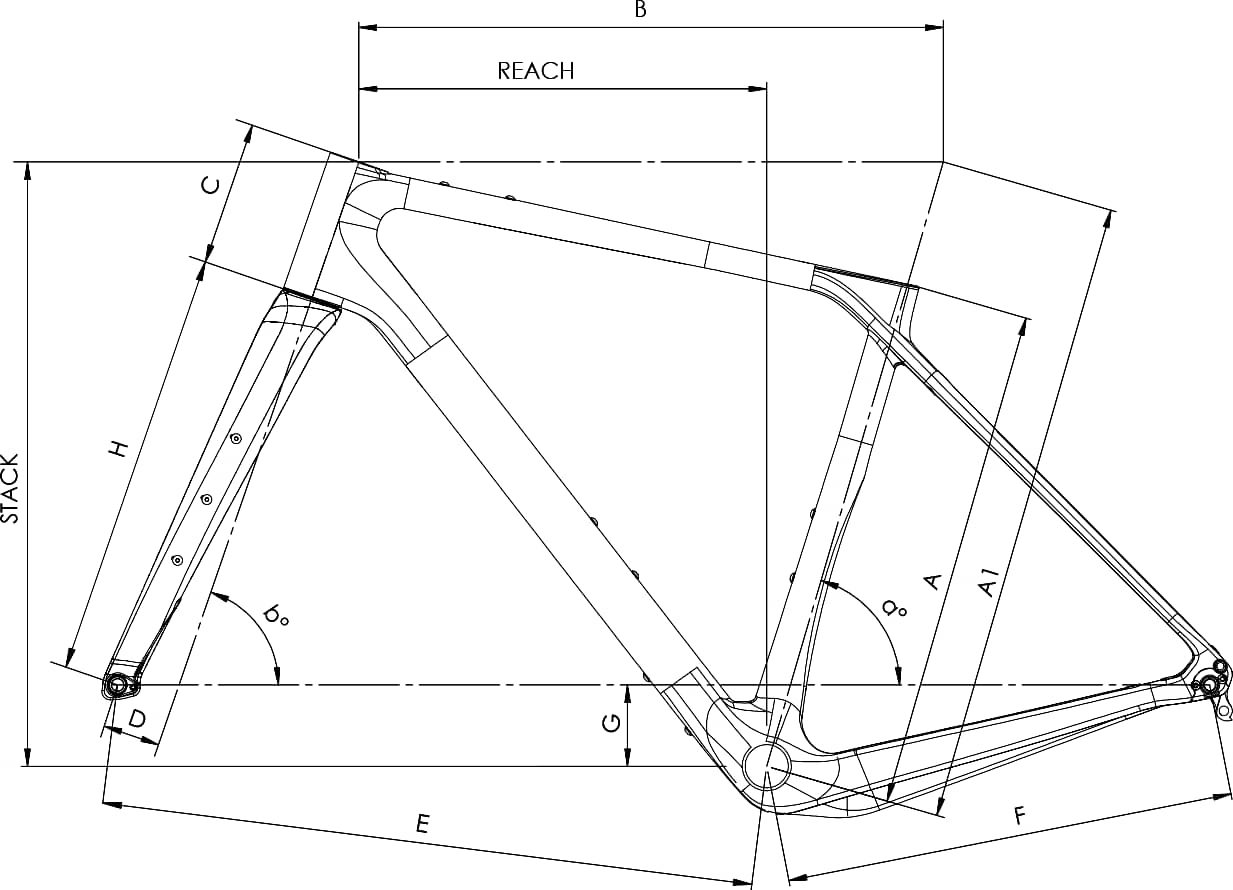

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 600 mm | 613 mm | 620 mm | 633 mm | 647 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Stack | 532 mm | 552 mm | 568 mm | 590 mm | 617 mm |
| Reach | 368 mm | 374 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 518 mm | 534 mm | 550 mm | 570 mm | 589 mm |
| Seat Tube Length | 430 mm | 455 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Length | 101 mm | 122 mm | 136 mm | 158 mm | 185 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1011 mm | 1024 mm | 1031 mm | 1044 mm | 1058 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

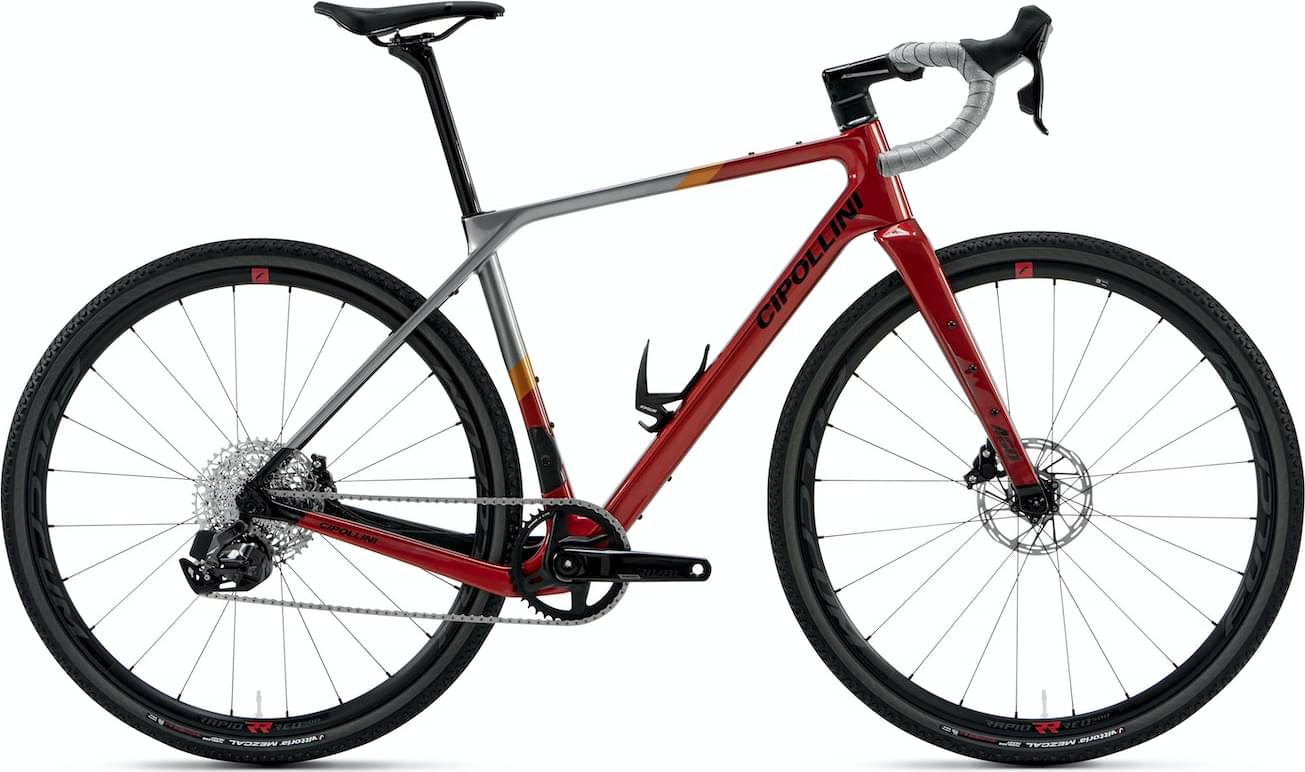

AGO O60FI SRAM RIVAL XPLR E-TAP AXS completes the Cipollini Ago model. 4 bikes variations carry this model name so far. You can easily view all of the Cipollini Ago bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the AGO O60FI SRAM RIVAL XPLR E-TAP AXS model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Cipollini AGO O60FI SRAM RIVAL XPLR E-TAP AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Cipollini AGO O60FI SRAM RIVAL XPLR E-TAP AXS bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
