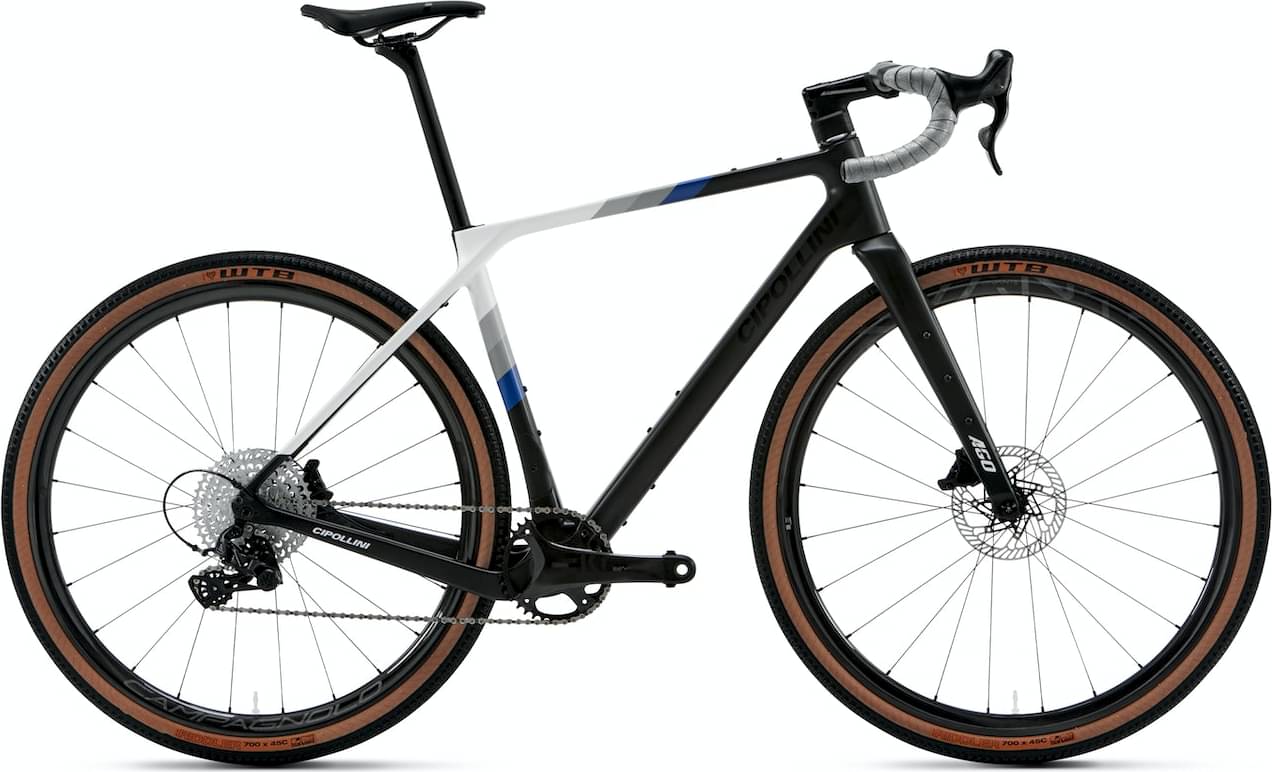

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MCipollini Ago
Suspension Fork
MCipollini Ago
Drivetrain
Rear Derailleur
EKAR 1x13
Front Derailleur
EKAR 1x13
Crank
EKAR 13s 38T (XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
Bottom Bracket
PRESSFIT 41 X 86,5 mm
Chain
EKAR 13v C-Link 117 maglie+falsa maglia
Wheels
Rims
Front: LEVANTE 700C DB 2WF COPPIA N3W, Rear: LEVANTE 700C DB 2WF COPPIA N3W
Tires
WTB Riddler 45 x 700 TCS Light/Fast Rolling 60tpi Dual DNA tire
Brakes
Brakes
DISC BRAKE(FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)
Cockpit
Stem
FSA ST ROAD NS ACR alloy -6° A9 (XS: 70 mm, S: 80 mm, M: 90 mm, L: 100 mm, XL: 110 mm)
Handlebar
FSA HB K-WING AGX (XS: 420 mm, S/M/L: 440 mm, XL: 460 mm)
Headset
CONICAL 1.1/2”; 1.1/2”
Seat
Saddle
San Marco GROUND SHORT Open-fit Short 155
Seatpost
OFFSET 10 mm; 110 g
Fit data

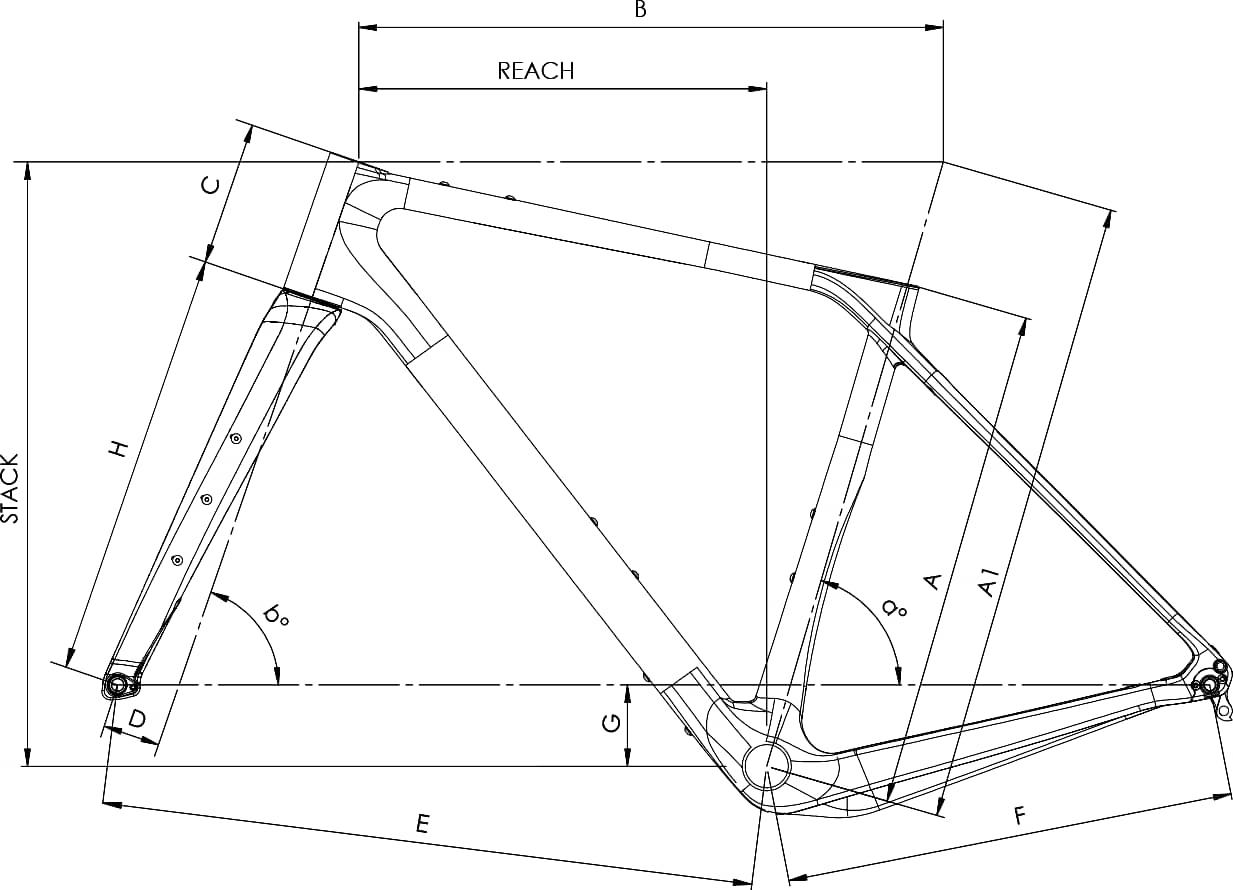

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 600 mm | 613 mm | 620 mm | 633 mm | 647 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Stack | 532 mm | 552 mm | 568 mm | 590 mm | 617 mm |
| Reach | 368 mm | 374 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 518 mm | 534 mm | 550 mm | 570 mm | 589 mm |
| Seat Tube Length | 430 mm | 455 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Length | 101 mm | 122 mm | 136 mm | 158 mm | 185 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1011 mm | 1024 mm | 1031 mm | 1044 mm | 1058 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
AGO R30AR CAMPAGNOLO EKAR is part of the Cipollini Ago model. 4 bikes variations carry this model name so far. Take a sneak peek at all Cipollini Ago bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
AGO R30AR CAMPAGNOLO EKAR components
Fork material
AGO R30AR CAMPAGNOLO EKAR has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the AGO R30AR CAMPAGNOLO EKAR model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AGO R30AR CAMPAGNOLO EKAR comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
