Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MCipollini BOND EVO DB
Suspension Fork
MCipollini BOND EVO DB
Drivetrain
Rear Derailleur
RIVAL E-TAP AXS D1 Glossy Black
Front Derailleur
RIVAL E-TAP AXS D1 Glossy Black
Crank
RIVAL D1 48-35 DUB Glossy Black (XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
Bottom Bracket
PRESSFIT 41 X 86,5 mm
Chain
PC RIVAL D1, 12s con Power Lock
Wheels
Rims
Front: Fulcrum Racing 400 DB, Rear: Fulcrum Racing 400 DB
Tires
Pirelli Cinturato Velo TLR 28-622
Brakes
Brakes
CALIPER; DISC BRAKE (FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)
Cockpit
Stem
FSA ST ROAD NS ACR alloy -6° A9 (XS: 90 mm, S: 100 mm, M: 110 mm, L: 120 mm, XL: 130 mm)
Handlebar
Vision Trimax Aero ACR (XS: 400 mm, S/M/L: 420 mm, XL: 440 mm)
Headset
CONICAL 1.1/2”; 1.1/2”
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
OFFSET 15 mm; 130 g. Optional: OFFSET 0 mm
Fit data

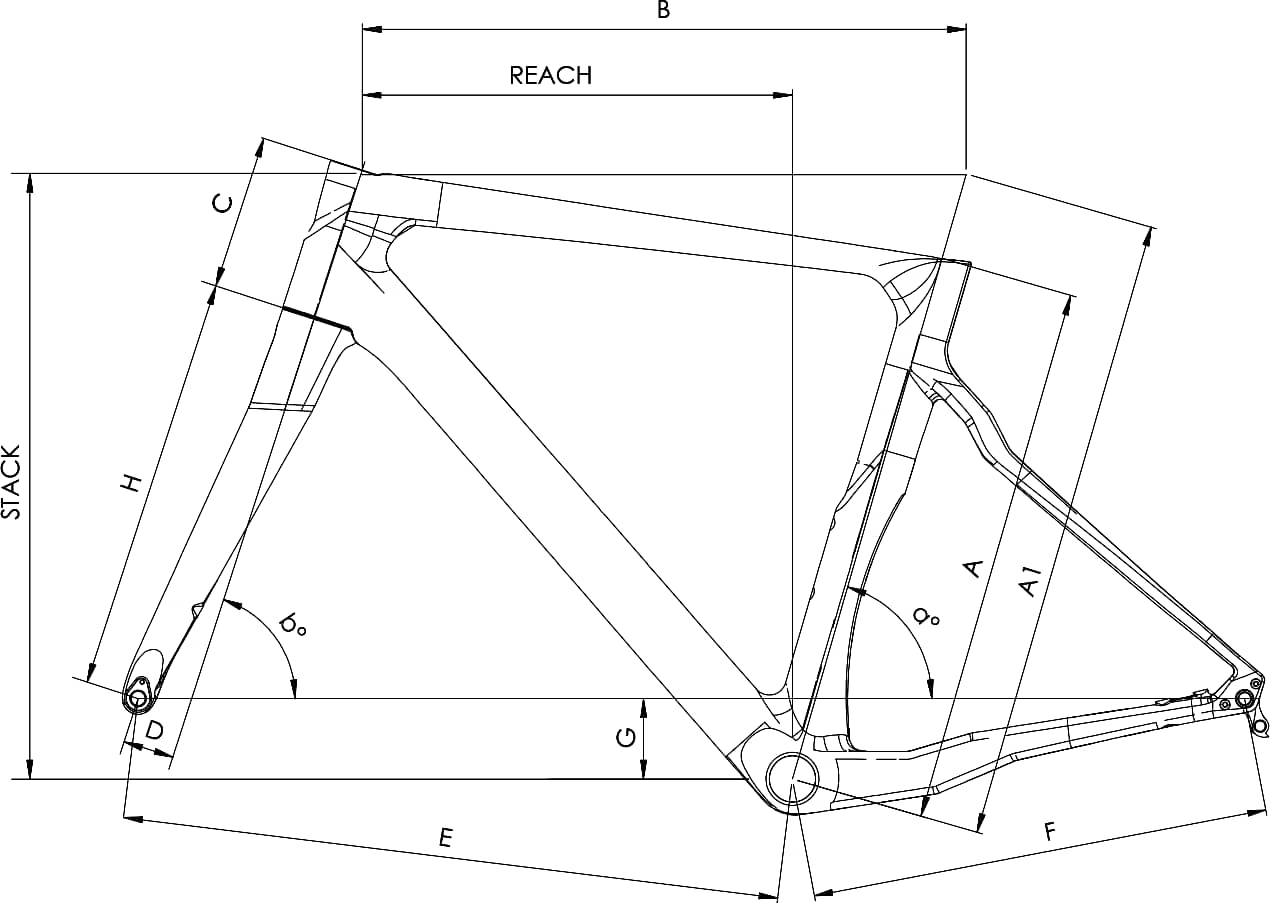

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.41 mm | 1.45 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 267 mm | 268 mm |
| Front Center | 570 mm | 581 mm | 584 mm | 601 mm | 609 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 68 mm | 65 mm | 62 mm | 55 mm |
| Stack | 503 mm | 520 mm | 534 mm | 556 mm | 580 mm |
| Reach | 363.5 mm | 373 mm | 378.5 mm | 393 mm | 399 mm |
| Top Tube Length | 503 mm | 520 mm | 536 mm | 561 mm | 579 mm |
| Seat Tube Angle | 74.6 ° | 74.4 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm | 515 mm | 550 mm |
| Head Tube Angle | 70.8 ° | 71.4 ° | 72 ° | 72.5 ° | 73.2 ° |
| Head Tube Length | 108 mm | 124 mm | 136 mm | 159 mm | 183 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 965 mm | 976 mm | 979 mm | 997 mm | 1006 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 69 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

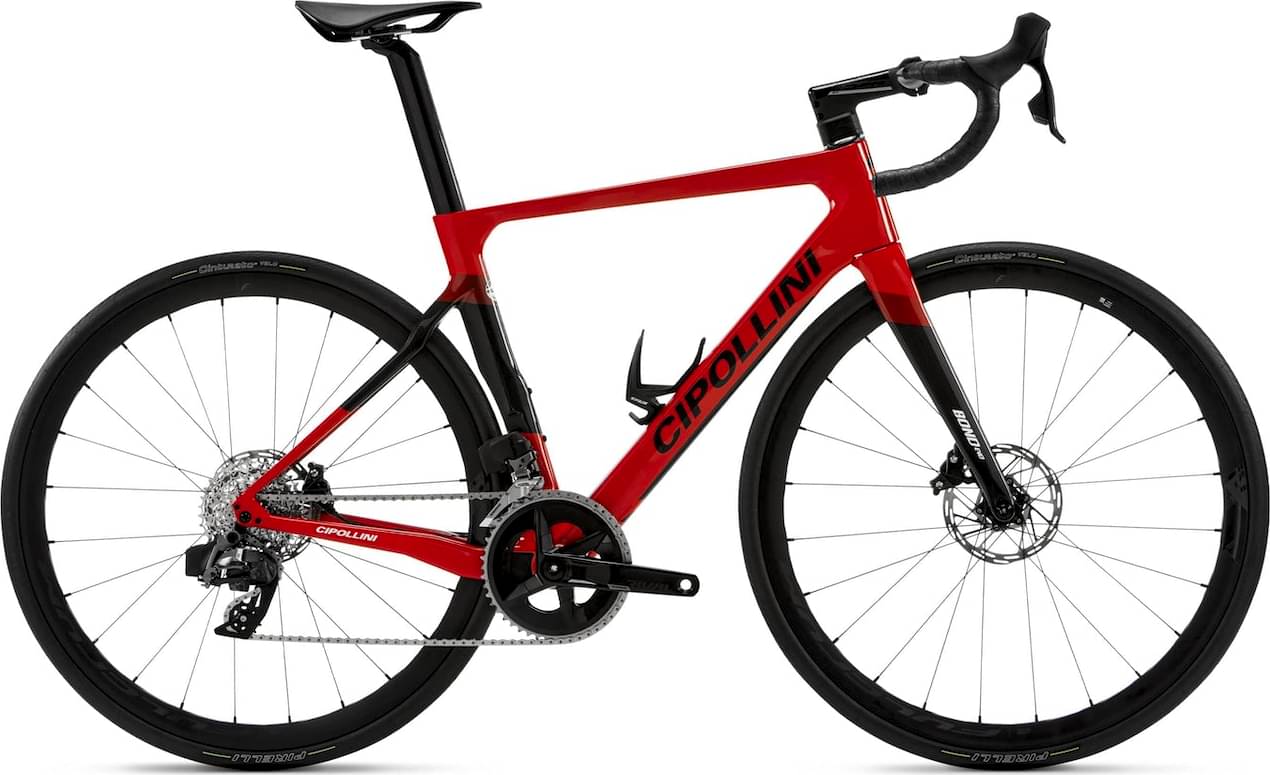

BOND EVO O30DP SRAM RIVAL E-TAP AXS is a Cipollini Bond model. Cipollini released 24 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on BOND EVO O30DP SRAM RIVAL E-TAP AXS are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BOND EVO O30DP SRAM RIVAL E-TAP AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
