Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MCipollini BOND EVO DB
Suspension Fork
MCipollini BOND EVO DB
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 12s R9250
Front Derailleur
Shimano Dura-Ace Di2 R9250
Crank
Shimano Dura-Ace R9200P Power meter 52-36 12s (XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
Bottom Bracket
PRESSFIT 41 X 86,5 mm
Chain
Shimano M9100 12s
Wheels
Rims
Front: Campagnolo BORA WTO 45 DB DARK ANT+POST, Rear: Campagnolo BORA WTO 45 DB DARK ANT+POST
Tires
Pirelli P Zero Race TLR 26
Brakes
Brakes
CALIPER; DISC BRAKE (FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)
Cockpit
Stem
Deda Alanera (XS: 90x400 mm, S: 100x420 mm, M: 110x420 mm, L: 120x420 mm, XL: 130x440 mm - misure c-c)
Handlebar
Deda Alanera (XS: 90x400 mm, S: 100x420 mm, M: 110x420 mm, L: 120x420 mm, XL: 130x440 mm - misure c-c)
Headset
CONICAL 1.1/2”; 1.1/2”
Seat
Saddle
Selle Italia SLR Boost Superflow Carbon Kit
Seatpost
OFFSET 15 mm; 130 g. Optional: OFFSET 0 mm
Fit data

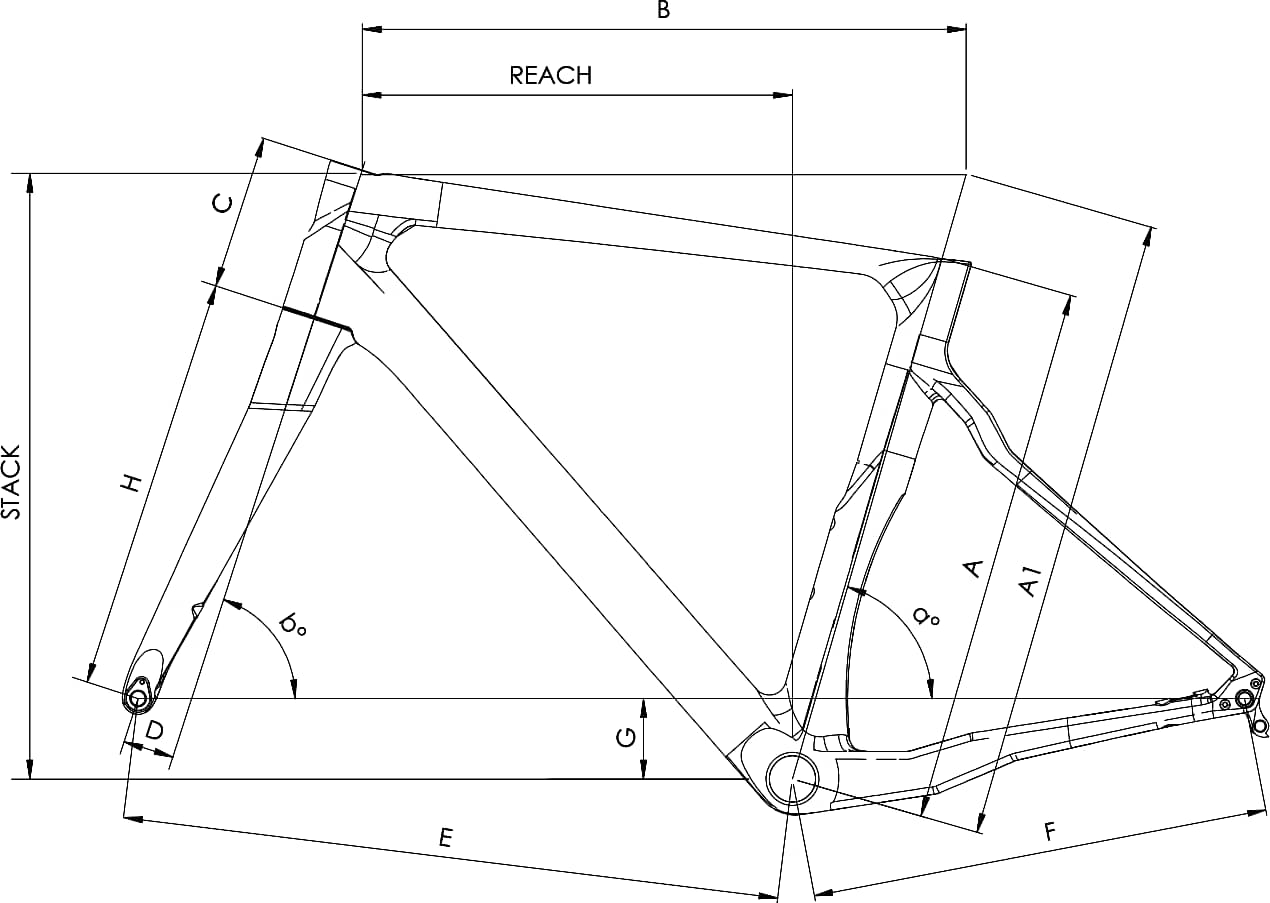

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.41 mm | 1.45 mm |
| Front Center | 570 mm | 581 mm | 584 mm | 601 mm | 609 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 57 mm | 55 mm | 52 mm | 46 mm |
| Stack | 503 mm | 520 mm | 534 mm | 556 mm | 580 mm |
| Reach | 363.5 mm | 373 mm | 378.5 mm | 393 mm | 399 mm |
| Top Tube Length | 503 mm | 520 mm | 536 mm | 561 mm | 579 mm |
| Seat Tube Angle | 74.6 ° | 74.4 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm | 515 mm | 550 mm |
| Head Tube Angle | 70.8 ° | 71.4 ° | 72 ° | 72.5 ° | 73.2 ° |
| Head Tube Length | 108 mm | 124 mm | 136 mm | 159 mm | 183 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 965 mm | 976 mm | 979 mm | 997 mm | 1006 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 69 mm | 68 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
BOND EVO P30ZQ SHIMANO DURA-ACE DI2 completes the Cipollini Bond model. Cipollini released 24 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
BOND EVO P30ZQ SHIMANO DURA-ACE DI2 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on BOND EVO P30ZQ SHIMANO DURA-ACE DI2 are the 26″ carbon type. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Cipollini BOND EVO P30ZQ SHIMANO DURA-ACE DI2 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
BOND EVO P30ZQ SHIMANO DURA-ACE DI2 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
