Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS, FSA -
Suspension Rigid -
Motor hub-drive -
Battery Maxon Bikedrive AIR 250 Wh -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Cipollini Flusso TCM
Suspension Fork
Cipollini Flusso
Drivetrain
Rear Derailleur
RED E-TAP AXS D1
Front Derailleur
RED E-TAP AXS D1
Crank
FSA SL-K Road e-bike CK-8685-1/IS (S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
Bottom Bracket
ISIS
Chain
PC RED D1, 12s con Power Lock
Wheels
Rims
Front: Tune Schwarzbrenner 20 Skyline Disc - Endurance Body, Rear: Tune Schwarzbrenner 20 Skyline Disc - Endurance Body
Tires
Pirelli P Zero Race TLR 28
Brakes
Brakes
DISC BRAKE (FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)
Cockpit
Stem
Deda Alanera (S: 100x420 mm, M: 110x420 mm, L: 120x420 mm, XL: 130x440 mm - misure c-c)
Handlebar
Deda Alanera (S: 100x420 mm, M: 110x420 mm, L: 120x420 mm, XL: 130x440 mm - misure c-c)
Headset
CONICAL 1.1/2"; 1.1/2
Seat
Saddle
San Marco Shortfit Superleggera Wide
Seatpost
OFFSET 0 mm; 140 g
Motor & Battery
Motor
Maxon Bikedrive AIR
Battery
Maxon Bikedrive AIR 250 Wh
Charger
E-TAP AXS Powerpack
Fit data

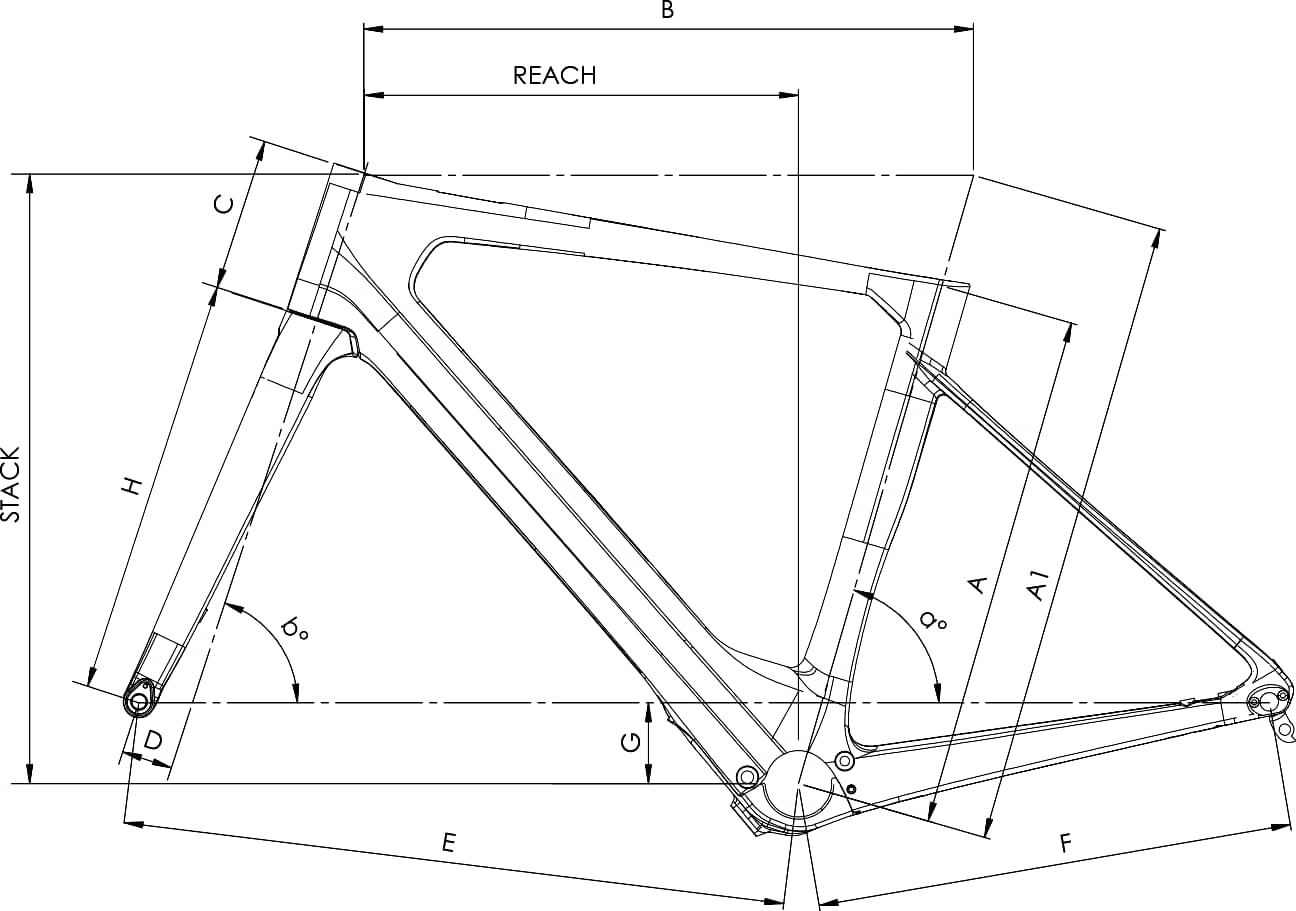

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 269 mm |
| Front Center | 574 mm | 584 mm | 595 mm | 603 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 62 mm | 59 mm | 53 mm |
| Stack | 513 mm | 533 mm | 547 mm | 565 mm |
| Reach | 365 mm | 377 mm | 388 mm | 396 mm |
| Top Tube Length | 511 mm | 531 mm | 551 mm | 571 mm |
| Seat Tube Angle | 74.4 ° | 73 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 485 mm | 510 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73.2 ° |
| Head Tube Length | 122 mm | 135 mm | 150 mm | 170 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 979 mm | 989 mm | 1001 mm | 1010 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 69 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
FLUSSO L40UG SRAM RED E-TAP AXS belongs to the Cipollini E Flusso model. There are 4 e-bikes that carry this model name. Take a sneak peek at all Cipollini E Flusso e-bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race e-bikes
Our math shows that the average cost of a dependable Race e-bike is 4156$. However, you could also get a good Race e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
FLUSSO L40UG SRAM RED E-TAP AXS components
Fork material
The fork on this e-bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The FLUSSO L40UG SRAM RED E-TAP AXS 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The FLUSSO L40UG SRAM RED E-TAP AXS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
