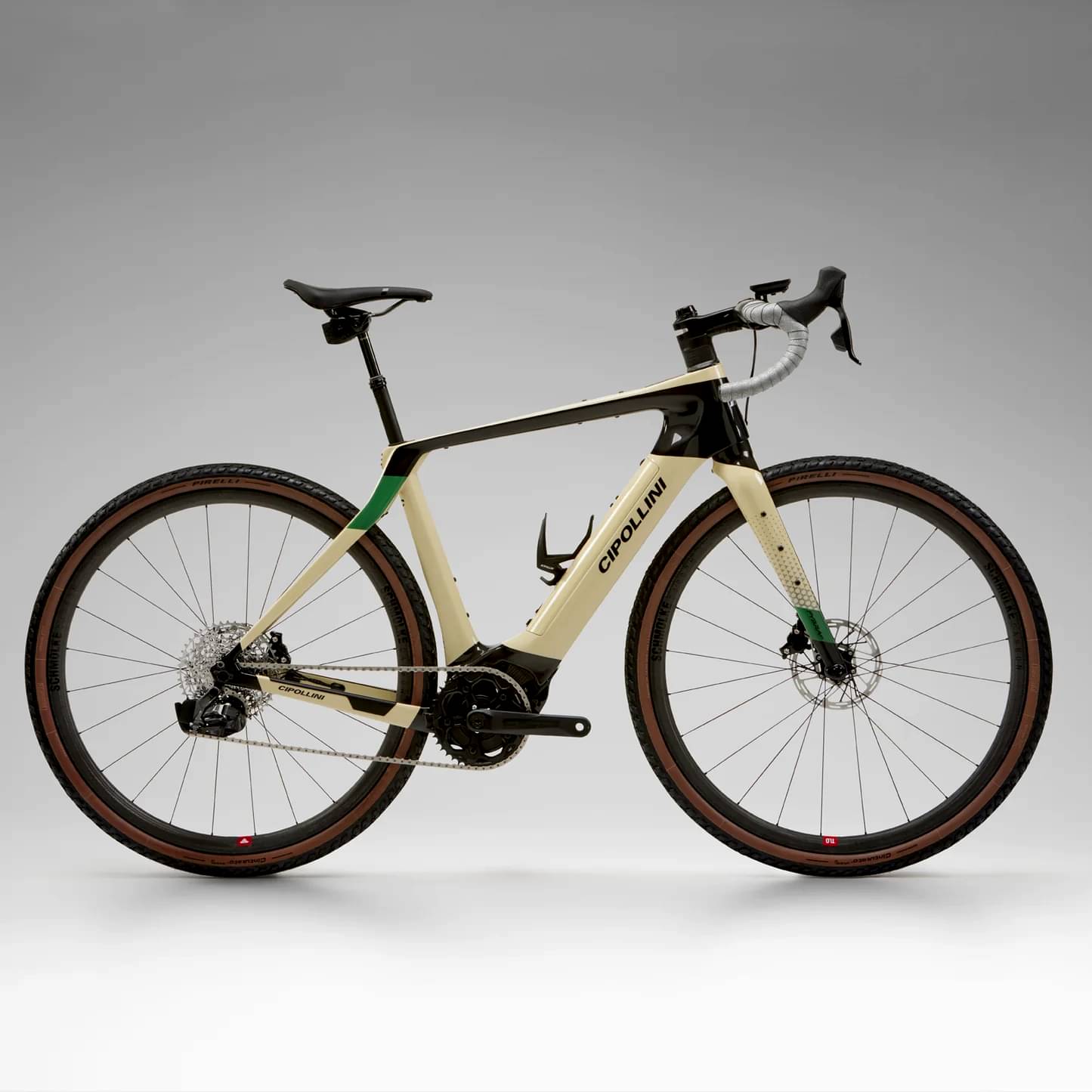

Cipollini FYBRA GX Sram Rival XPLR E-TAP AXS D1 2023
2023 E-bike
Weight | 16.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset FSA -
Suspension Rigid -
Motor Polini mid-drive -
Battery POLINI 500 Wh EVO -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
MCipollini Fybra + HiRide suspension
Drivetrain
Rear Derailleur
-
Cassette
SRAM RIVAL XPLR E-TAP AXS D1 Glossy Black
Crank
FSA CK E-BIKE CK-746-2/IS(XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
Chain
PC SRAM RIVAL D1 12s
Wheels
Rims
SCHMOLKE TLO GRAVEL TLR DISC - DTSwiss 240 hub
Brakes
Brakes
Hydraulic Disc
Cockpit
Headset
Specific headset (IS52/IS52)
Seat
Saddle
San Marco GROUND SHORT Open-fit Short 155
Seatpost
Offset 0 mm 140 g (R30SS variant)
Motor & Battery

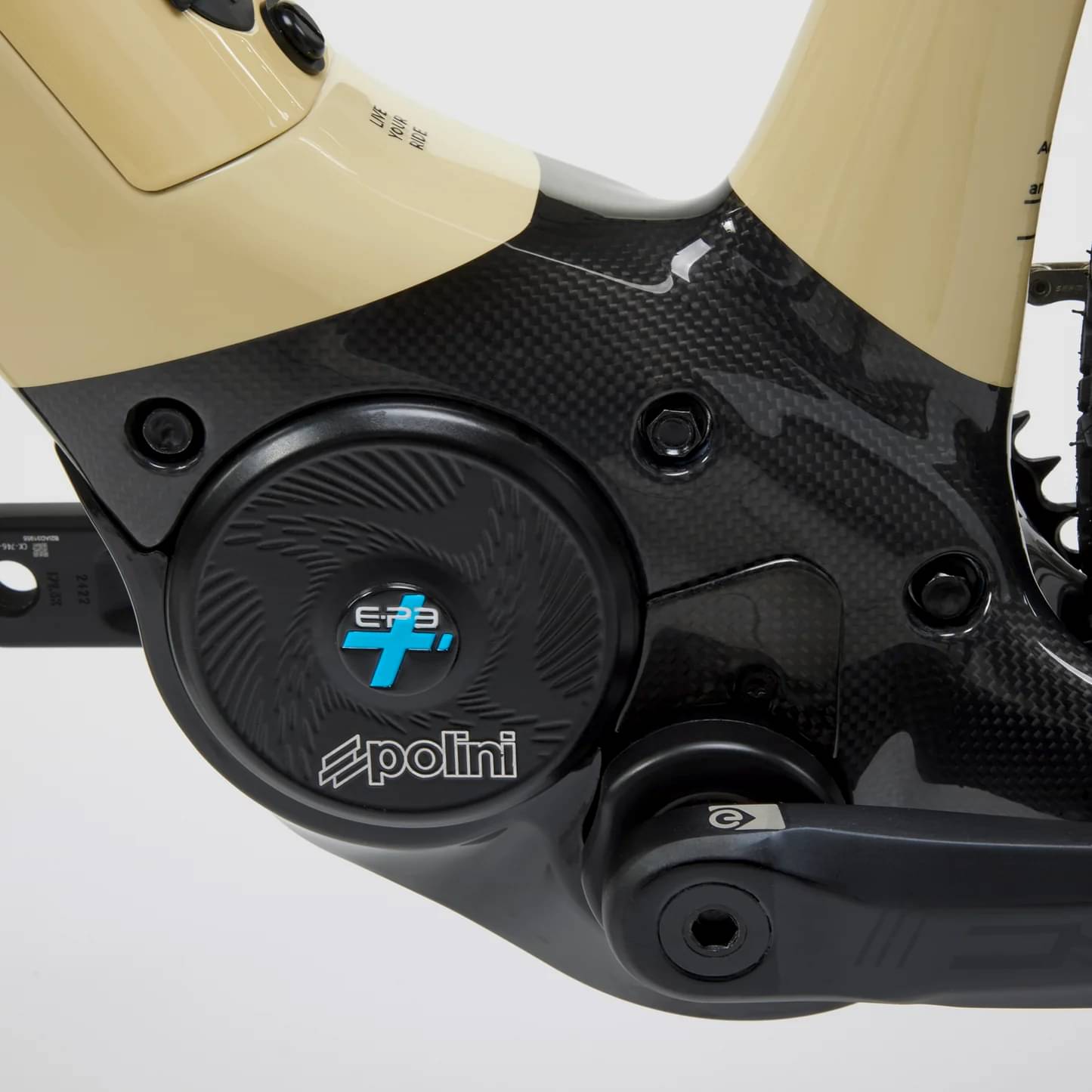

Motor
POLINI E-P3+ EVO
Battery
POLINI 500 Wh EVO
Fit data

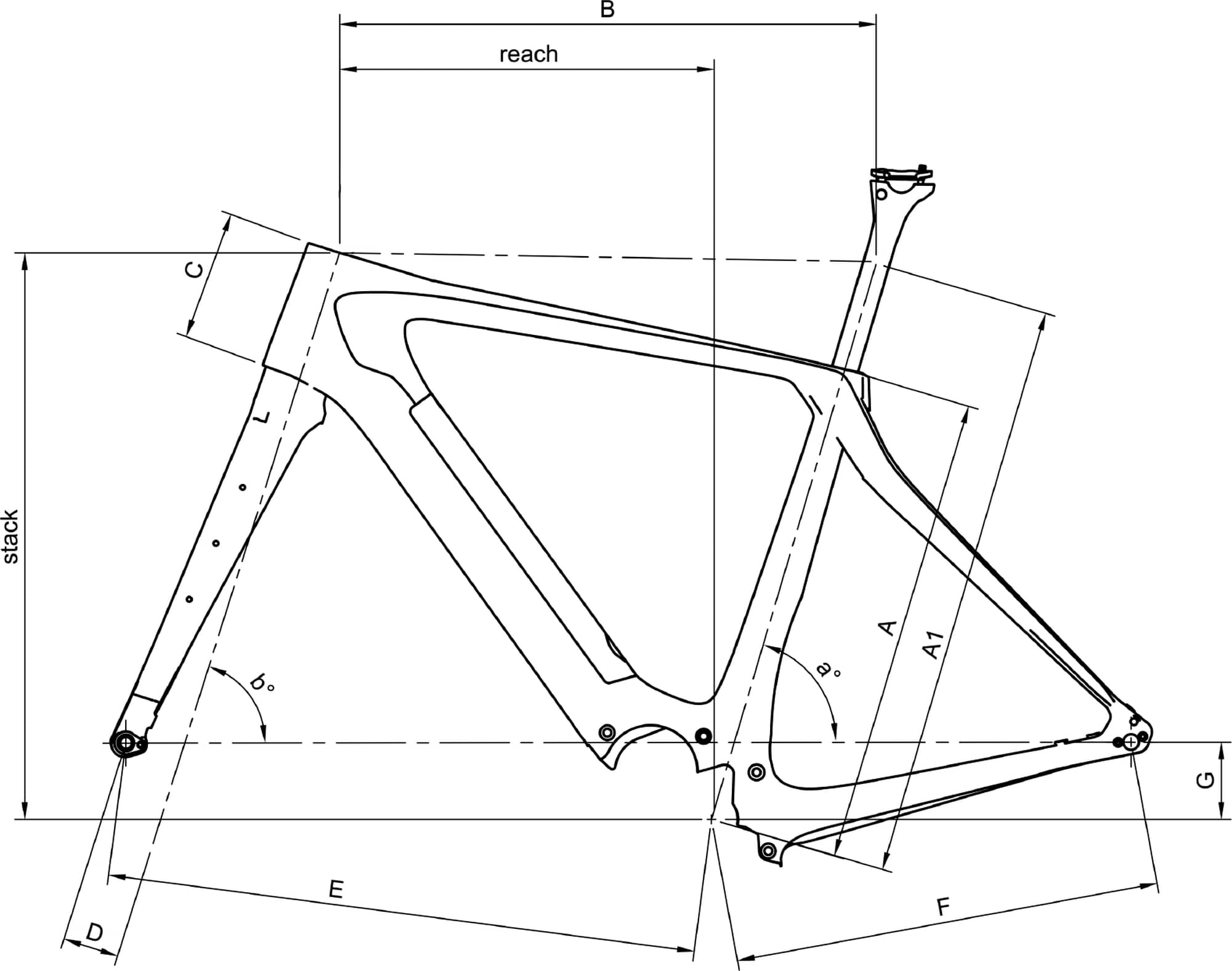

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.584 mm | 1.562 mm | 1.518 mm | 1.525 mm | 1.541 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 271 mm |
| Front Center | 588 mm | 600 mm | 610 mm | 629 mm | 650 |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 60 mm | 59 mm | 51 mm | 52 mm | 53 mm |
| Stack | 572 mm | 578 mm | 586 mm | 610 mm | 635 mm |
| Reach | 361 mm | 370 mm | 386 mm | 400 mm | 412 mm |
| Top Tube Length | 530 mm | 542 mm | 560 mm | 580 mm | 600 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 434 mm | 458 mm | 484 mm | 504 mm | 526 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 126 mm | 132 mm | 136 mm | 160 mm | 186 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1015 mm | 1027 mm | 1037 mm | 1057 mm | 1078 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 77 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
FYBRA GX Sram Rival XPLR E-TAP AXS D1 is part of the Cipollini E Fybra model. Cipollini released 4 e-bikes variations of this model so far. You can easily view all of the Cipollini E Fybra e-bikes models from 2023, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Gravel e-bikes average weight
The average weight for Gravel e-bikes is 13.58 kg (29.94 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 16.6 kg (36.6 lbs), the FYBRA GX Sram Rival XPLR E-TAP AXS D1 model is much heavier than average. In short, the average Gravel e-bike weight is 22.24% lower than this one.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on FYBRA GX Sram Rival XPLR E-TAP AXS D1 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The FYBRA GX Sram Rival XPLR E-TAP AXS D1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Cipollini FYBRA GX Sram Rival XPLR E-TAP AXS D1 e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
