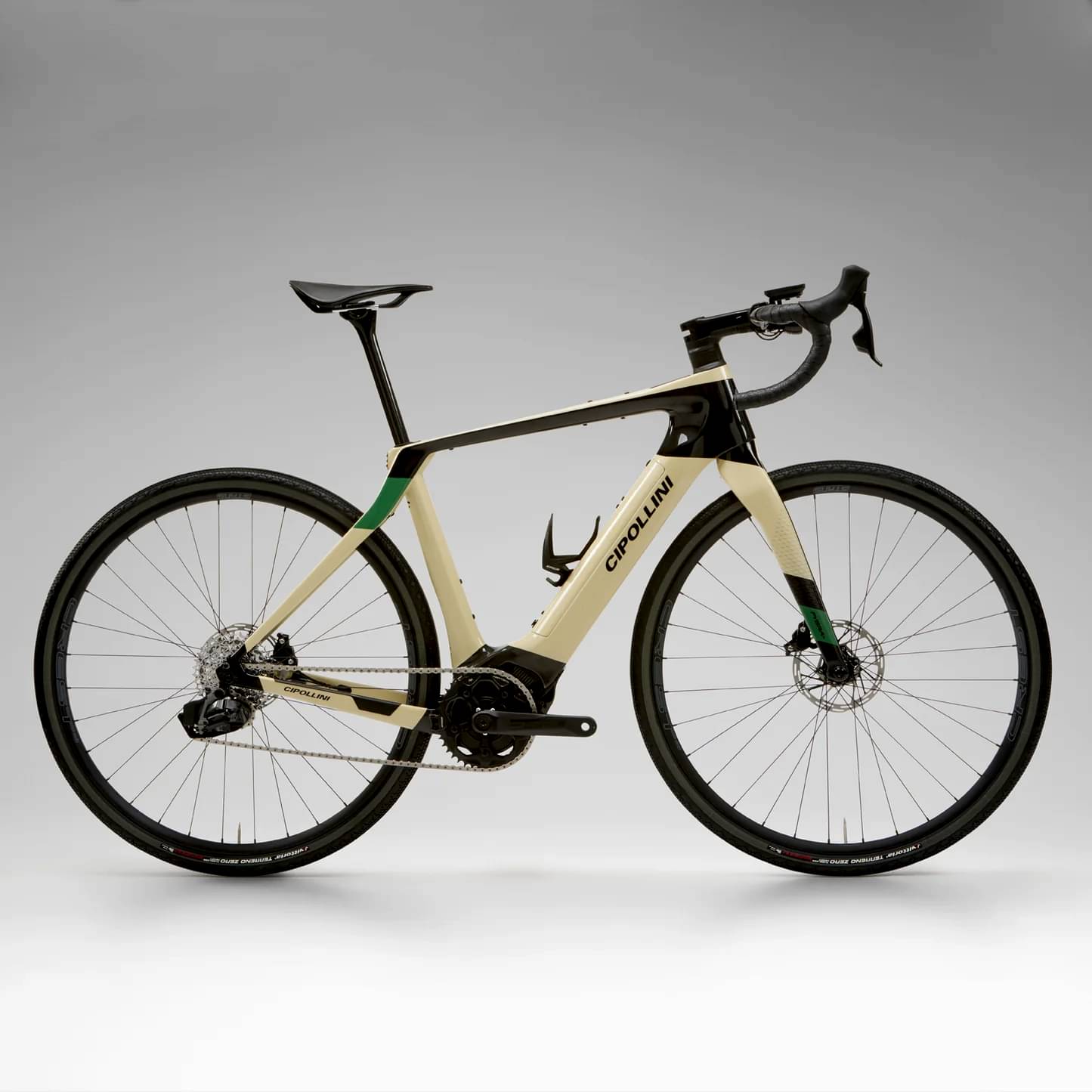

Cipollini FYBRA R Sram Rival E-Tap 2023
2023 E-bike
Weight | 16.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset FSA -
Suspension Rigid -
Motor Polini mid-drive -
Battery POLINI 500 Wh EVO -
Drivetrain 1 × 5 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
MCipollini Fybra
Drivetrain
Rear Derailleur
-
Cassette
SRAM RIVAL E-TAP AXS D1
Crank
FSA CK E-BIKE CK-746-2/IS(XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
Chain
SRAM RIVAL D1 12V
Wheels
Rims
Stan's Crest MK4 - Damil DM-25A hub
Brakes
Brakes
Hydraulic Disc
Cockpit
Headset
Specific headset (IS52/IS52)
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
Offset 0mm 140 g
Motor & Battery

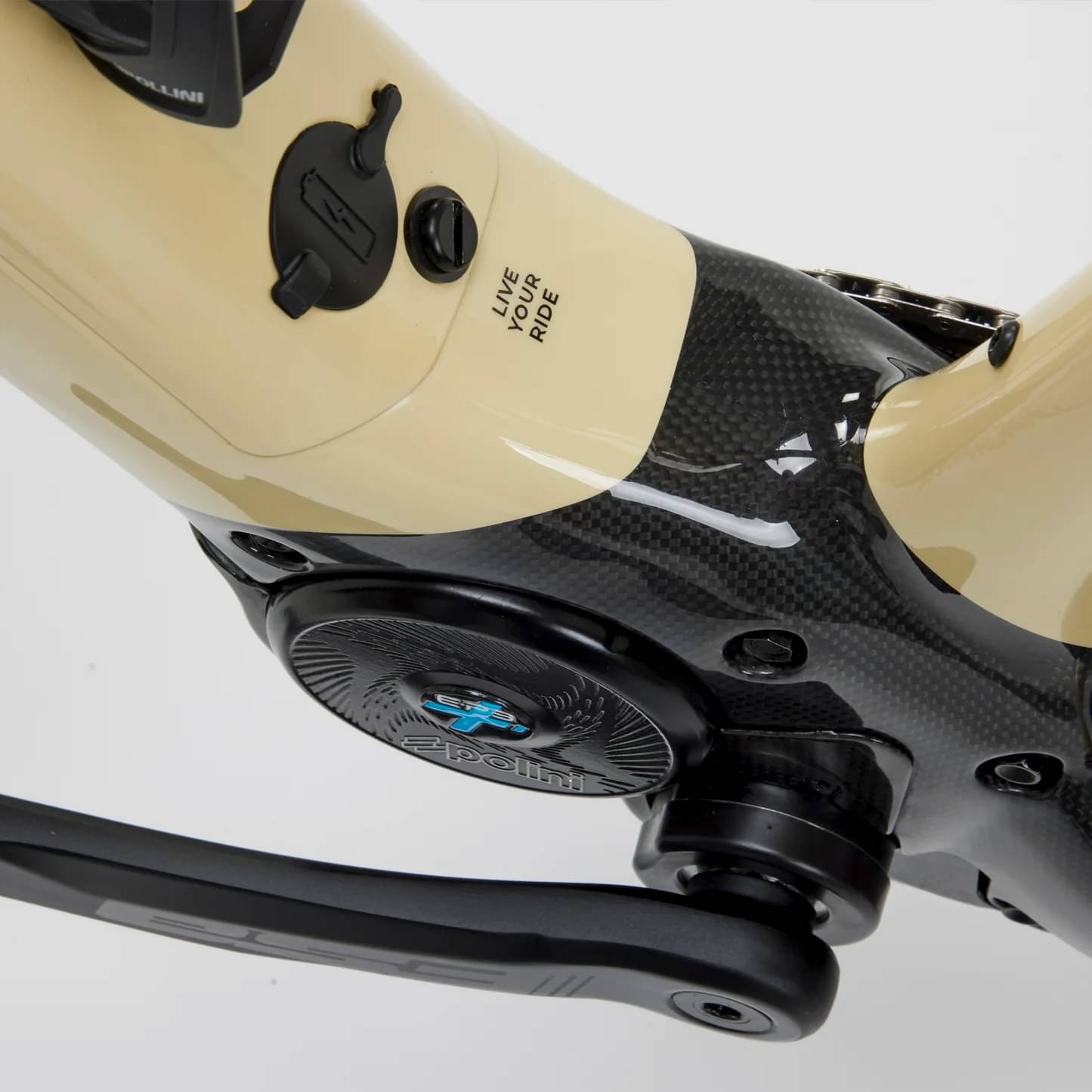

Motor
POLINI E-P3+ EVO
Battery
POLINI 500 Wh EVO
Fit data

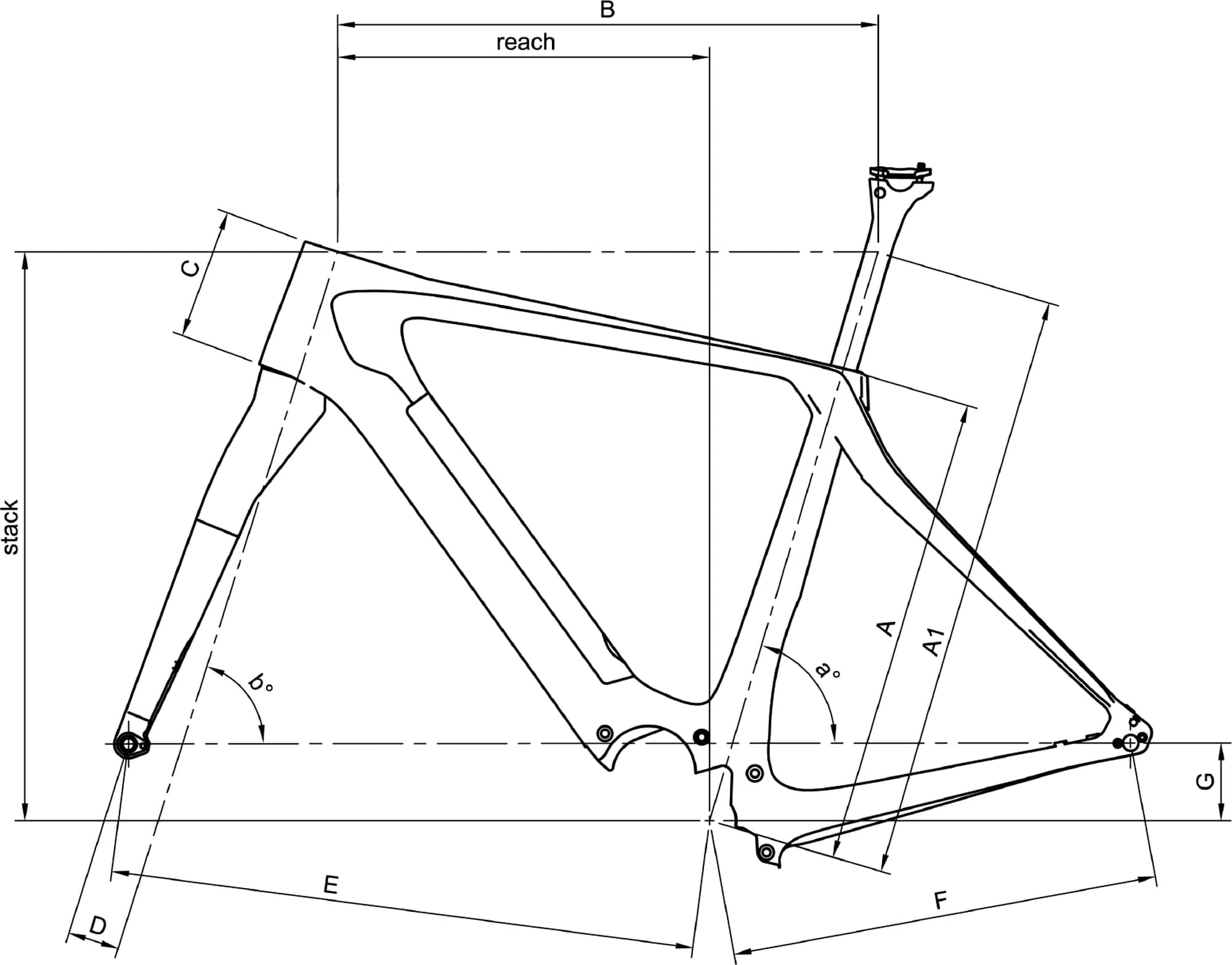

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.584 mm | 1.562 mm | 1.518 mm | 1.525 mm | 1.541 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm |
| Front Center | 580 mm | 592 mm | 602 mm | 621 mm | 642 mm |
| Rake | 48.5 mm | 48.5 mm | 48.5 mm | 48.5 mm | 48.5 mm |
| Trail | 65 mm | 64 mm | 57 mm | 59 mm | 58 mm |
| Stack | 572 mm | 578 mm | 586 mm | 610 mm | 635 mm |
| Reach | 361 mm | 370 mm | 386 mm | 400 mm | 412 mm |
| Top Tube Length | 530 mm | 542 mm | 560 mm | 580 mm | 600 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 434 mm | 458 mm | 484 mm | 504 mm | 526 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 126 mm | 132 mm | 136 mm | 160 mm | 186 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1007 mm | 1019 mm | 1029 mm | 1048 mm | 1070 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 77 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
FYBRA R Sram Rival E-Tap completes the Cipollini E Fybra model. Cipollini launched 4 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Endurance e-bikes
If we make a quick analysis of the average weight of an Endurance e-bike, we get 13.52 kg (29.81 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, FYBRA R Sram Rival E-Tap has a weight of 16.1 kg (35.49 lbs). In other words, this model is 19.08% heavier than the average Endurance e-bike.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Cipollini FYBRA R Sram Rival E-Tap 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FYBRA R Sram Rival E-Tap comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
FYBRA R Sram Rival E-Tap comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
