Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Battery Shimano Battery BT-DN110-A Shimano EC300 -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MCipollini NKTT DB
Suspension Fork
MCipollini NKTT DB
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 12s R8150
Front Derailleur
Shimano Ultegra Di2 R8150
Crank
Shimano Ultegra Power meter R8100-P Power Meter 52/36 (S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
Bottom Bracket
PRESSFIT 46 X 86.5 mm
Chain
Shimano M8100 12s
Wheels
Rims
Front: Fulcrum Racing 400 DB MY22, Rear: Fulcrum Racing 400 DB MY22
Tires
Pirelli Cinturato Velo TLR 28-622
Brakes
Brakes
DISC BRAKE (FLAT MOUNT, THRU AXLE 12 X 142 mm- 12 X 100 mm)
Cockpit
Stem
MCipollini NKTT DB
Handlebar
Pro Missile EVO
Headset
CONICAL 1.1/2"; 1.1/2
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
MODULAR OFFSET 30 : 0 mm; MODULAR OFFSET 0: -30mm); 140 mm
Motor & Battery
Battery
Shimano Battery BT-DN110-A Shimano EC300
Charger
Shimano Battery BT-DN110-A Shimano EC300
Fit data

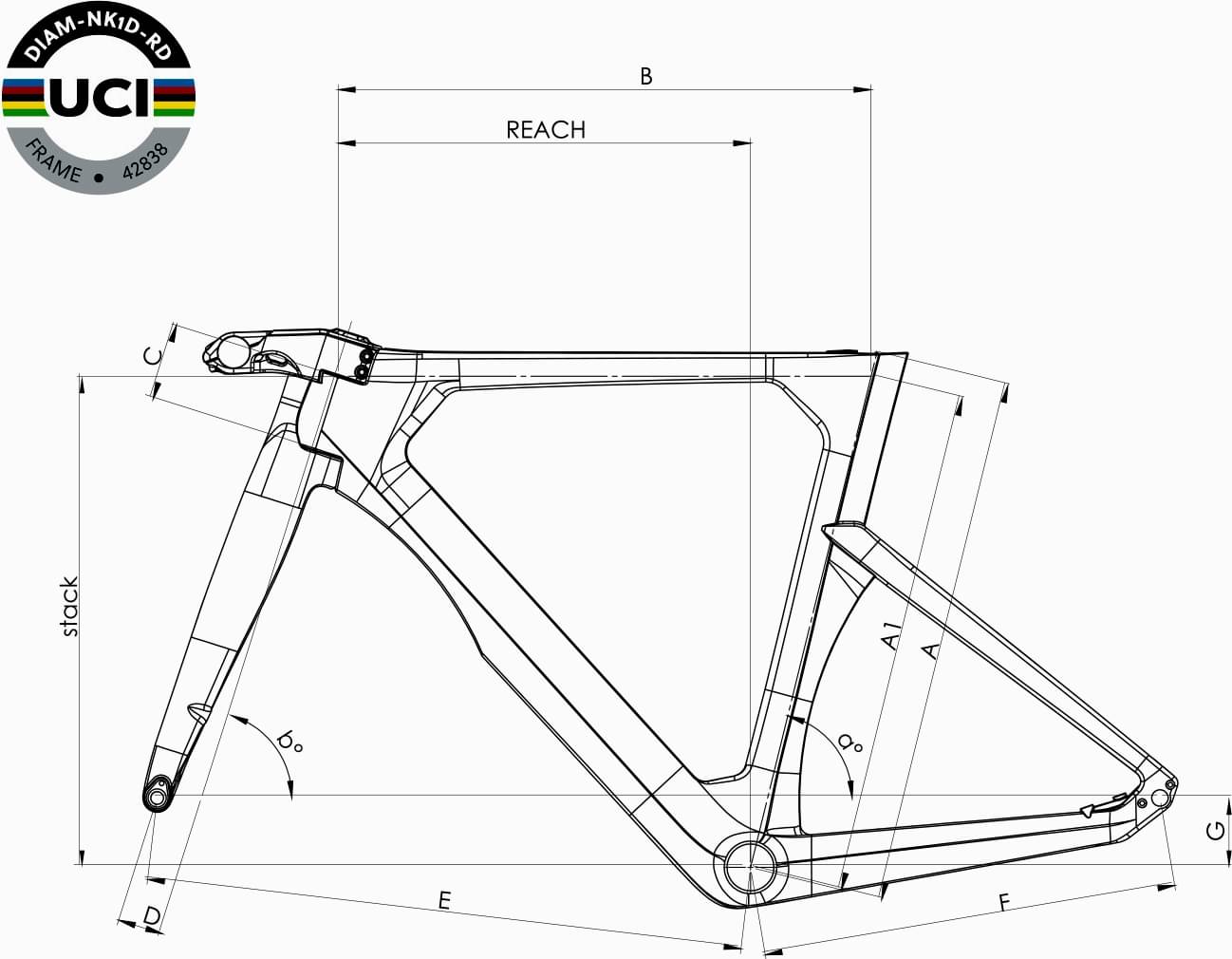

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.13 mm | 1.19 mm | 1.19 mm | 1.19 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 585 mm | 597 mm | 618 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 56 mm | 60 mm | 54 mm | 52 mm |
| Stack | 436 mm | 480 mm | 497 mm | 515 mm |
| Reach | 387 mm | 403 mm | 418 mm | 433 mm |
| Top Tube Length | 503 mm | 521 mm | 540 mm | 563 mm |
| Seat Tube Angle | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 484 mm | 518 mm | 536 mm | 558 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 72 mm | 76 mm | 89 mm | 109 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 975 mm | 981 mm | 993 mm | 1015 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
NKTT Q40DF SHIMANO ULTEGRA is part of the Cipollini Nktt model. 7 bikes variations carry this model name so far. You can easily view all of the Cipollini Nktt bikes models from 2023, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
NKTT Q40DF SHIMANO ULTEGRA components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Cipollini NKTT Q40DF SHIMANO ULTEGRA 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cipollini NKTT Q40DF SHIMANO ULTEGRA is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
