Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Modulus Carbon
Suspension Fork
Colnago Concept Carbon, 1 1/4"-1 1/8"
Drivetrain
Bottom Bracket
Threadfit82.5 - BB86 Required
Cockpit
Headset
Colnago Integrated, 1/8" to 1 1/4"
Seat
Seatpost
Colnago Concept Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45cm | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.37 mm | 1.41 mm | 1.46 mm | 1.49 mm | 1.47 mm | 1.48 mm |
| Stack | 516 mm | 523 mm | 528 mm | 546 mm | 564 mm | 581 mm | 590 mm | 607 mm |
| Reach | 380 mm | 383 mm | 385 mm | 387 mm | 387 mm | 389 mm | 401 mm | 411 mm |
| Top Tube Length | 513 mm | 522 mm | 530 mm | 543 mm | 553 mm | 568 mm | 583 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 75.1 ° | 74.6 ° | 74 ° | 73.6 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.8 ° | 71.1 ° | 71.5 ° | 71.6 ° | 71.9 ° | 72.5 ° | 72.9 ° | 73.1 ° |
| Head Tube Length | 122 mm | 125 mm | 127 mm | 145 mm | 163 mm | 179 mm | 187 mm | 204 mm |
| Chainstay Length | 402 mm | 404 mm | 407 mm | 409 mm | 410 mm | 412 mm | 415 mm | 416 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

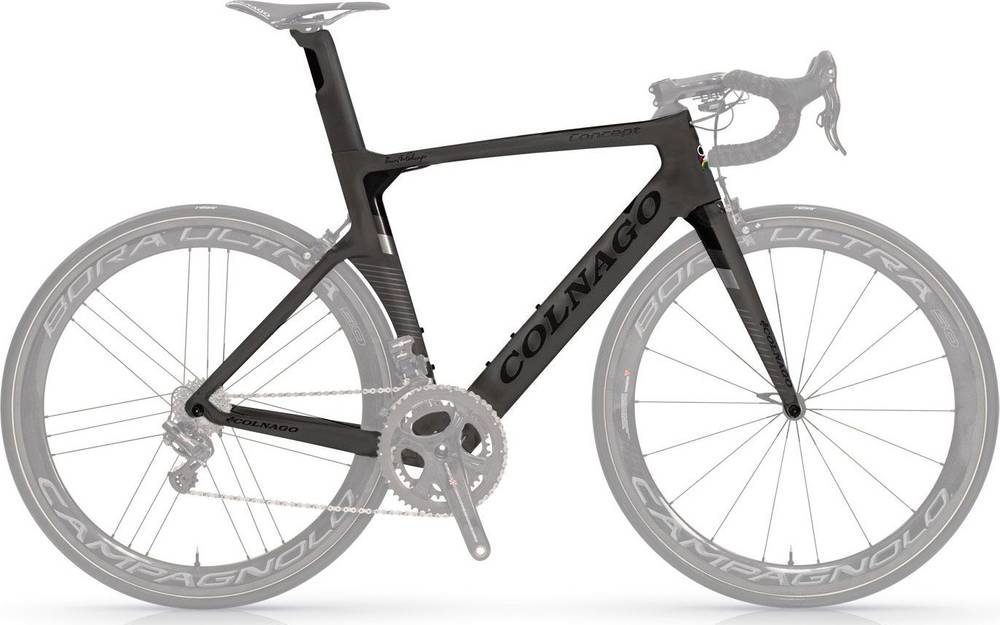

Concept Frameset belongs to the Colnago Concept model. There are 12 frames that carry this model name. You can easily view all of the Colnago Concept frames models from 2019, here.
Model range prices
Colnago Concept Frameset 2019 is the most economical model, with a starting price of 4499$. Colnago Concept Disc Frameset 2019 on the other hand costs 4699$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero frames
Our math shows that the average cost of a dependable Aero frame is 2657$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Colnago Concept Frameset price was 4499$. If we compare this with the average Aero frame cost we notice that the price is 69.33% higher.
Concept Frameset components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
