Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Modulus Carbon
Suspension Fork
Colnago Concept Carbon, 1 1/4"-1 1/8"
Drivetrain
Bottom Bracket
Threadfit82.5 - BB86 Required
Cockpit
Headset
Colnago Integrated, 1/8" to 1 1/4"
Seat
Seatpost
Colnago Concept Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.42 mm | 1.47 mm | 1.5 mm | 1.48 mm |
| Stack | 520 mm | 538 mm | 556 mm | 573 mm | 582 mm |
| Reach | 377 mm | 379 mm | 379 mm | 381 mm | 393 mm |
| Top Tube Length | 522 mm | 535 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.6 ° | 74 ° | 73.6 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 71.6 ° | 71.9 ° | 72.5 ° | 72.9 ° |
| Head Tube Length | 127 mm | 145 mm | 163 mm | 179 mm | 187 mm |
| Chainstay Length | 399 mm | 401 mm | 402 mm | 404 mm | 407 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

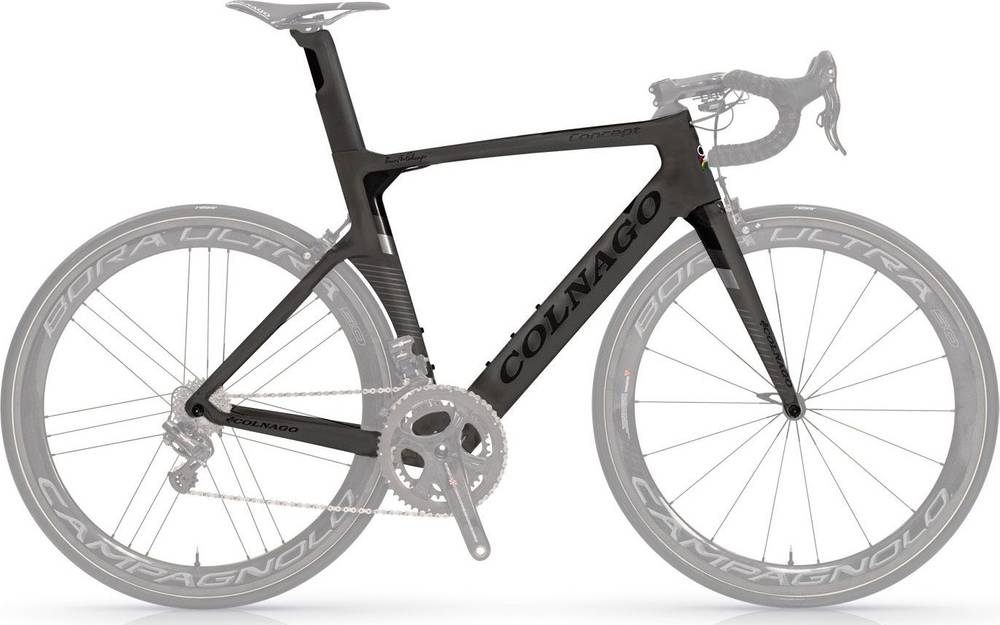

Concept Frameset is a Colnago Concept model. Colnago launched 12 frames of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Colnago Concept Frameset 2020 is the most economical model, with a starting price of 4499$. Colnago Concept Disc Frameset 2020 on the other hand costs 4699$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero frames
According to our calculations, the average cost of an Aero frame that is reliable is 2657$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2020 and its price was 4499$. If we compare this with the average Aero frame cost we notice that the price is 69.33% more expensive.
Concept Frameset components
Fork material
When it comes to the fork, this frame has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
