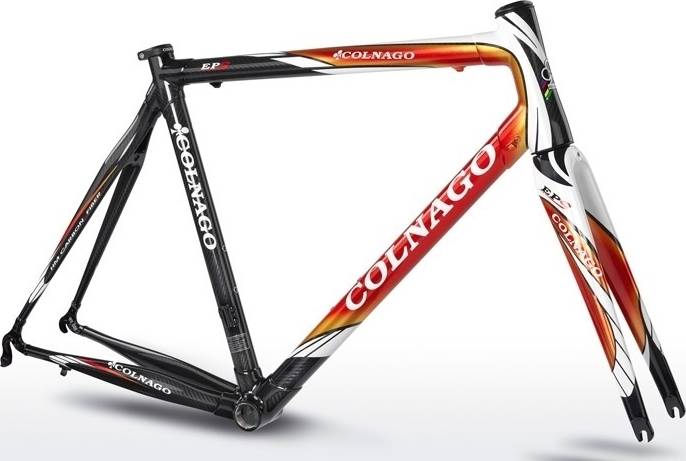

Colnago EPS Frameset 2019
2019 Road
Estimate price |
5,500$
Weight | 0.95 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HHM-HM Unidirectional Carbon w/ 3K Twill Finish / 100% MADE IN ITALY
Suspension Fork
Colnago EPS Full Carbon
Drivetrain
Front Derailleur
Braze-On Required
Bottom Bracket
68mm / English
Cockpit
Headset
Semi-Integrated Colnago C-HS1 - 1 1/8" to 1 1/4"
Seat
Seatpost
31.6mm Required
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42s | 45s | 48s | 52cm | 53cm | 50s | 54cm | 55cm | 52s | 56cm | 57cm | 58cm | 54s | 60cm | 59cm | 56s | 61cm | 62cm | 58s | 63cm | 64cm | 65cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Tube Length | 511 mm | 519 mm | 531 mm | 533 mm | 538 mm | 541 mm | 543 mm | 548 mm | 552 mm | 553 mm | 560 mm | 568 mm | 568 mm | 573 mm | 575 mm | 583 mm | 589 mm | 593 mm | 593 mm | 597 mm | 600 mm | 603 mm |
| Seat Tube Angle | 74.49 ° | 75.14 ° | 74.58 ° | 74.57 ° | 74.07 ° | 74 ° | 74.04 ° | 74 ° | 73.57 ° | 73.54 ° | 72.98 ° | 72.86 ° | 72.83 ° | 72.75 ° | 72.75 ° | 72.75 ° | 72.75 ° | 72.75 ° | 72.75 ° | 72.75 ° | 72.45 ° | 72.75 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 520 mm | 530 mm | 500 mm | 540 mm | 550 mm | 520 mm | 560 mm | 570 mm | 580 mm | 540 mm | 600 mm | 590 mm | 560 mm | 610 mm | 620 mm | 580 mm | 630 mm | 640 mm | 650 |
| Head Tube Length | 120 mm | 123 mm | 125 mm | 125 mm | 133 mm | 143 mm | 143 mm | 152 mm | 161 mm | 161 mm | 169 mm | 177 mm | 177 mm | 185 mm | 185 mm | 185 mm | 195 mm | 202 mm | 202 mm | 207 mm | 217 mm | 227 mm |
| Chainstay Length | 400 mm | 402 mm | 405 mm | 405 mm | 407 mm | 408 mm | 408 mm | 409 mm | 410 mm | 410 mm | 412 mm | 414 mm | 414 mm | 415 mm | 414 mm | 415 mm | 416 mm | 416 mm | 416 mm | 417 mm | 417 mm | 418 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
EPS Frameset belongs to the Colnago Eps model. 6 frames variations carry this model name so far. You can easily view all of the Colnago Eps frames models from 2019, here.
Model range prices
Colnago EPS Frameset 2019 is the cheapest frame model and costs 5500$. Colnago EPS GEO Frameset 2019 is the most expensive one and costs 6000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race frames average price
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2019 and its price was 5500$. If we compare this with the average Race frame cost we notice that the price is 124.95% higher.
Race frames average weight
Race frames weigh an average of 1.41 kg (3.11 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 0.95 kg (2.09 lbs), Colnago frame is much lighter than average. In short, the average Race frame weight is 48.42% higher than this one.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
