Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T800 Carbon
Suspension Fork
Colnago Carbon
Drivetrain
Bottom Bracket
Press-Fit 86 Required
Cockpit
Headset
Tapered Headset 1-1/8" to 1-1/4"
Seat
Seatpost
Colnago V3-RS Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45cm | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.38 mm | 1.38 mm | 1.42 mm | 1.45 mm | 1.48 mm | 1.46 mm | 1.48 mm |
| Stack | 517 mm | 523 mm | 528 mm | 545 mm | 563 mm | 581 mm | 589 mm | 607 mm |
| Reach | 371 mm | 378 mm | 383 mm | 385 mm | 387 mm | 393 mm | 403 mm | 411 mm |
| Top Tube Length | 504 mm | 517 mm | 529 mm | 540 mm | 552 mm | 568 mm | 582 mm | 596 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.6 ° | 73.1 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.6 ° | 71 ° | 71.5 ° | 71.6 ° | 71.9 ° | 72.5 ° | 72.9 ° | 73.1 ° |
| Head Tube Length | 113 mm | 114 mm | 117 mm | 132 mm | 151 mm | 168 mm | 175 mm | 193 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 413 mm | 413 mm | 417 mm | 417 mm | 417 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

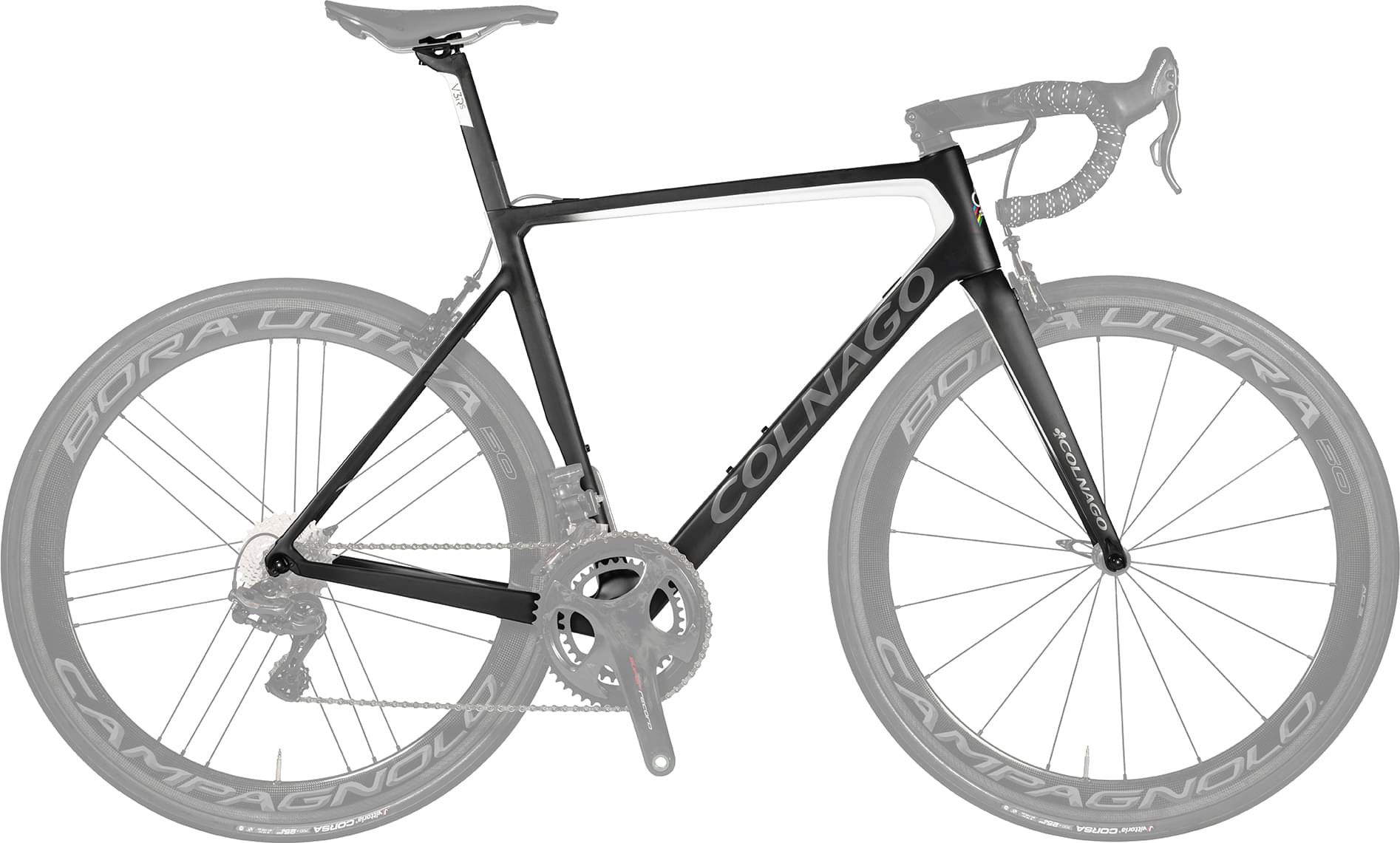

V3-RS Frameset belongs to the Colnago V3 Rs model. Colnago launched 7 frames of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Colnago V3-RS Frameset 2021 is the cheapest frame model and costs 4989$. Colnago V3-RS Disc Frameset 2021 is the most expensive one and costs 5299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for General Road frames
According to our calculations, the average cost of a General Road frame that is reliable is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Colnago V3-RS Frameset price was 4989$. If we compare this with the average General Road frame cost we notice that the price is 104.05% higher.
Overview of components
Fork material
V3-RS Frameset has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
