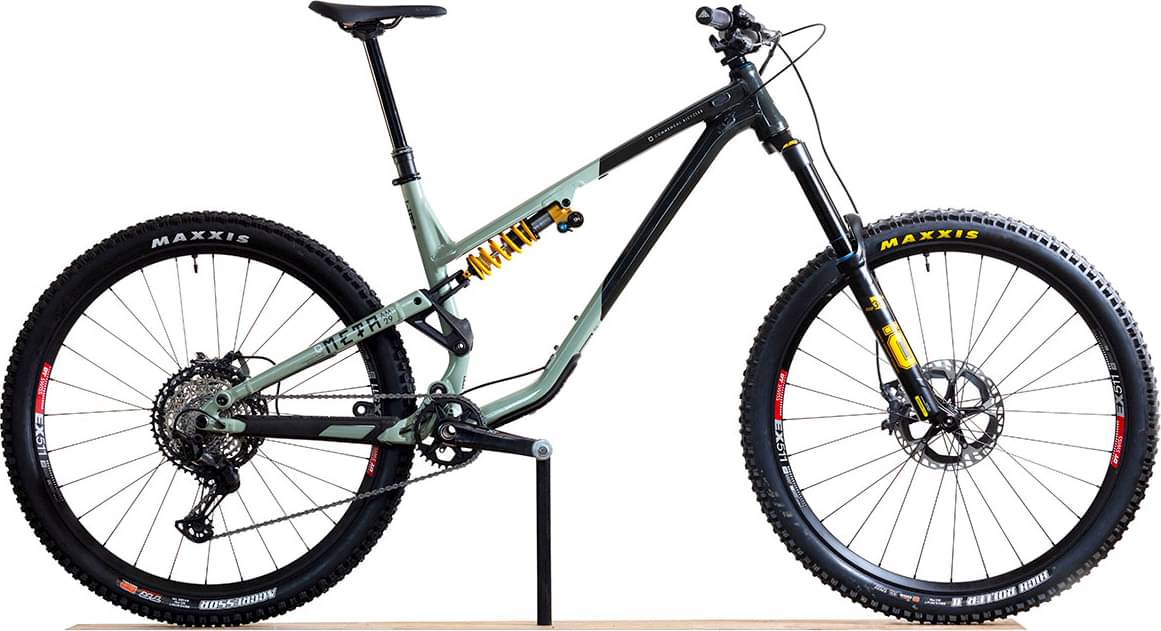

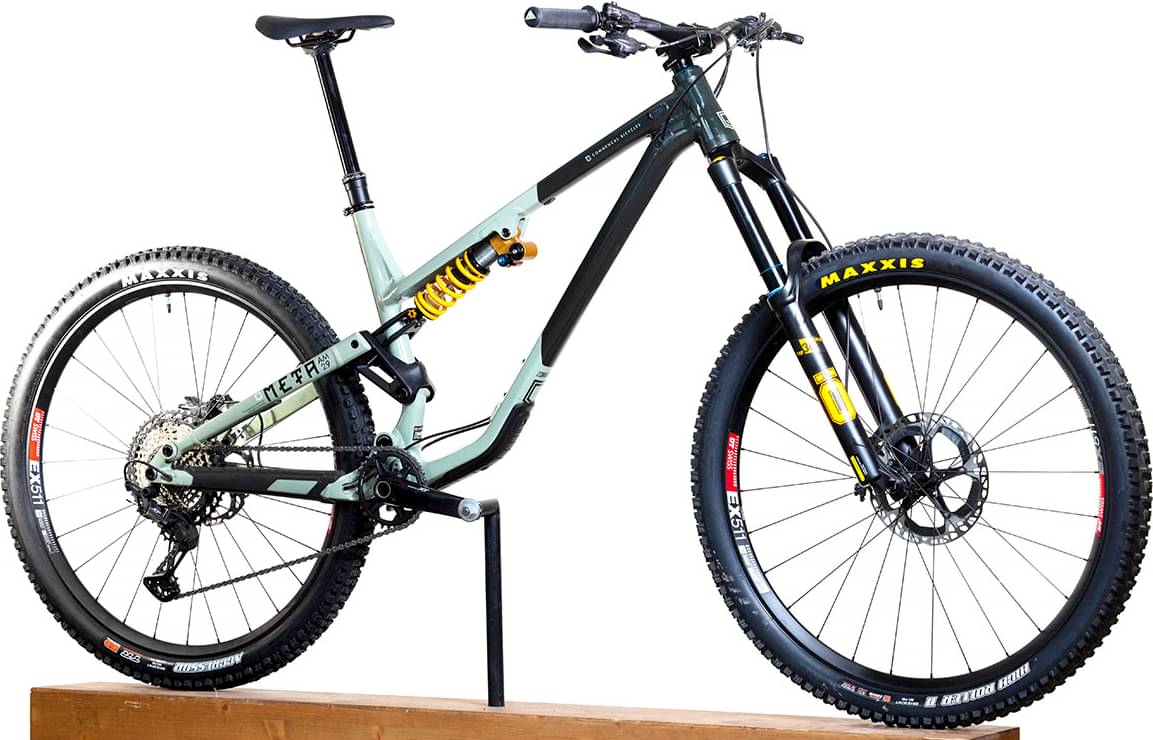

Commençal META AM 29 OHLINS EDITION 2023
2023 Mountain
Estimate price |
4,075$
Weight | 16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 180cm
LG
178cm - 190cm
XL
188cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2021 Meta AM 29, 160 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Suspension Fork
?HLINS RXF36 m.2 Air, 170 mm travel, 29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset
Rear Shock
?HLINS TTX22M, 230 x 62,5 mm, HSC, LSC, rebound. Spring rates: 343 lbs on S, 388 lbs on M, 434 lbs on L, 480 lbs on XL
Drivetrain

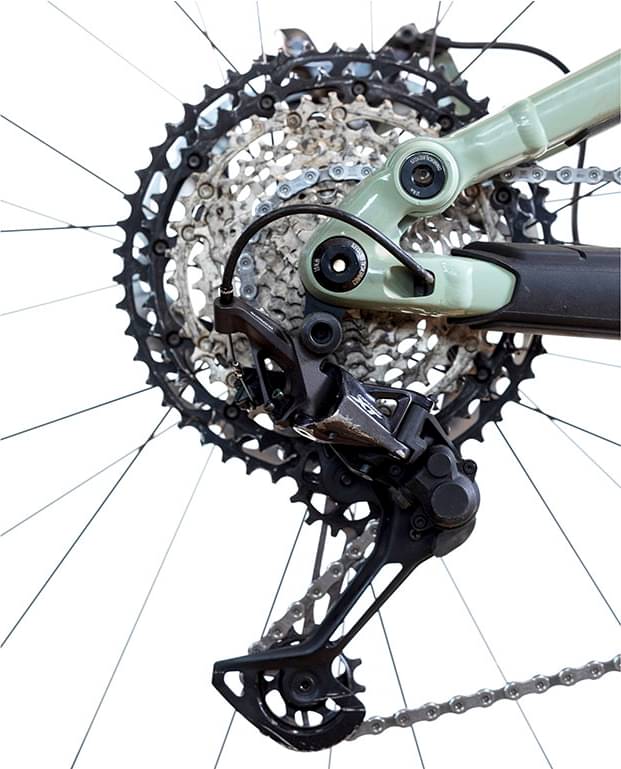

Rear Derailleur
SHIMANO XT, 12s
Shift Levers
SHIMANO XT, 12s
Cassette
SHIMANO XT, 12s, 10-51t

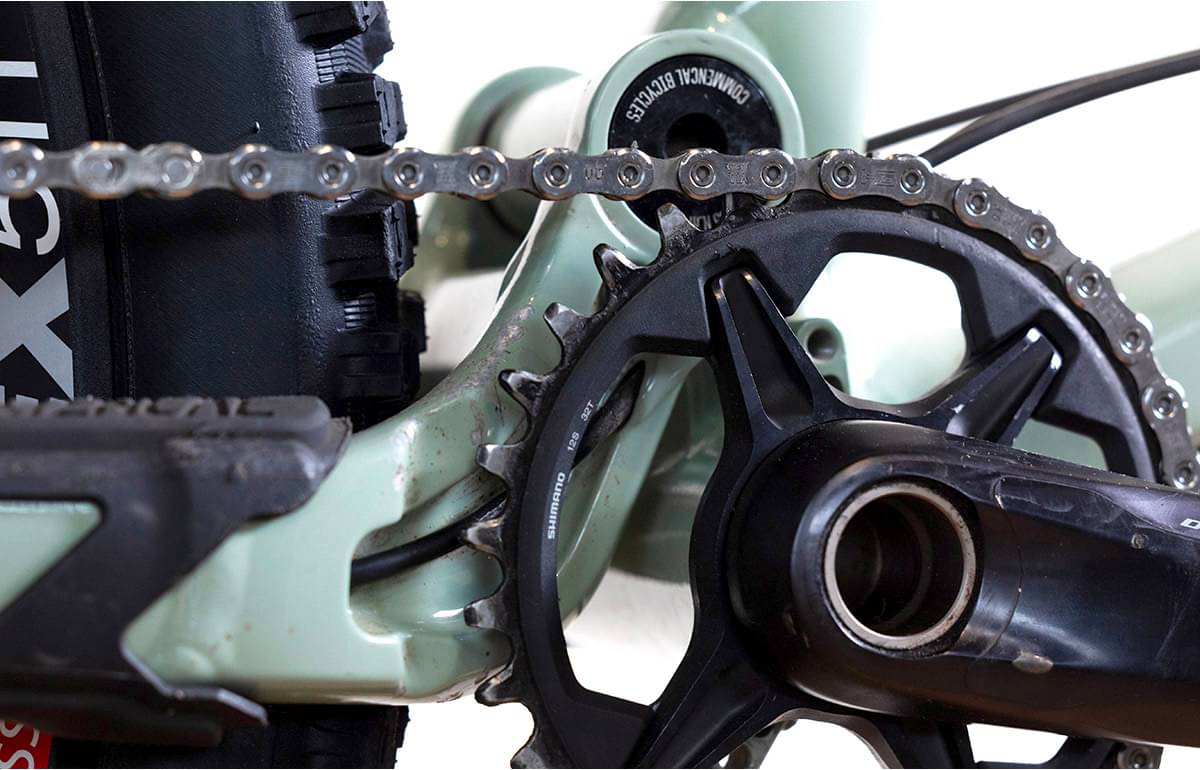

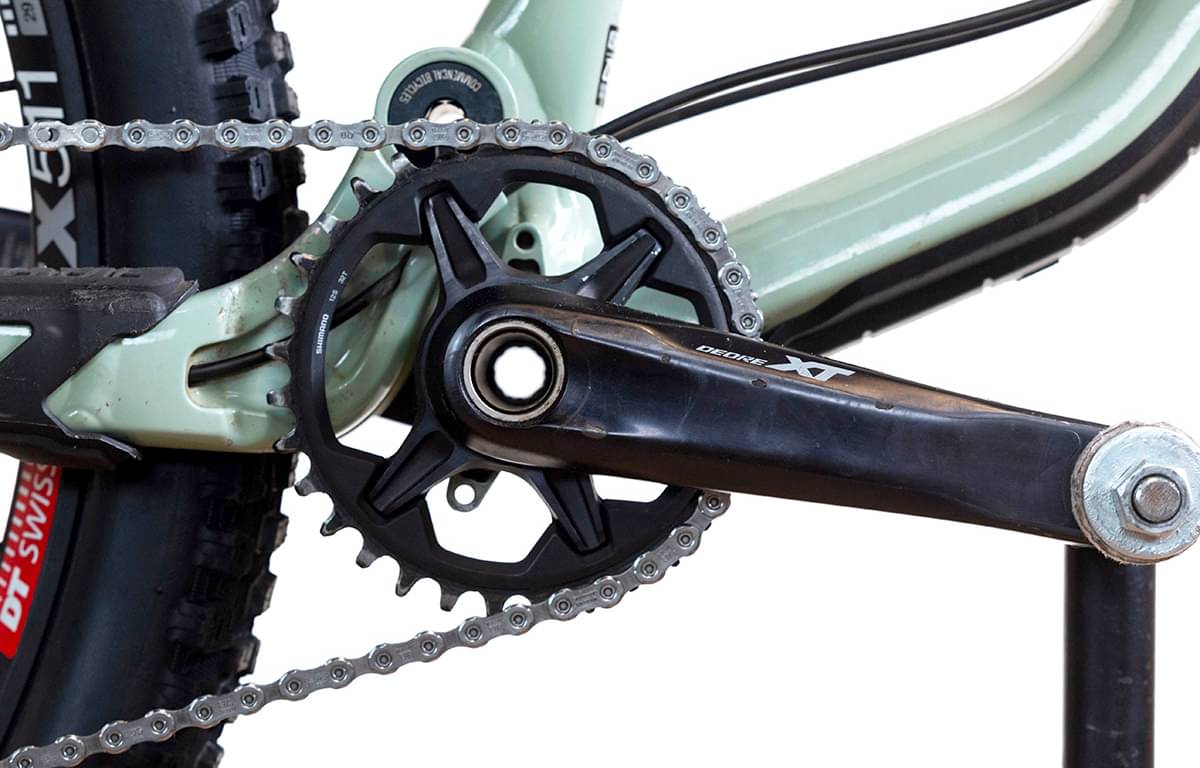

Crank
SHIMANO XT, 170 mm crank arms, Boost, Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology
Bottom Bracket
SHIMANO BBMT800, Pressfit
Chain
SHIMANO XT, 12s
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
Rims
DT SWISS EX511, 29'', 28h, 30mm inner width
Tires
MAXXIS HIGH ROLLER II Exo front / MAXXIS AGGRESSOR DD rear
Brakes
Brakes
SHIMANO XT, 4 pistons, I-Spec EV compatible, Rotors: SHIMANO RT-MT900 203 mm, Centerlock, Ice Technology Freeza
Cockpit
Stem
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R27, 31,8 mm, 780 mm width, 27 mm rise, Alloy 7050
Grips
YES
Headset
ACROS ZS44/ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Alpaca X5, 145mm width, S-Alloy rail
Seatpost
KS Lev Integra, 34,9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.36 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 799 mm | 826 mm | 853 mm | 880 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 137 mm | 137 mm | 137 mm |
| Stack | 630 mm | 635 mm | 639 mm | 644 mm |
| Reach | 442 mm | 467 mm | 492 mm | 517 mm |
| Top Tube Length | 570 mm | 597 mm | 623 mm | 649 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1228 mm | 1255 mm | 1282 mm | 1309 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 210 cm |
Model Overview
META AM 29 OHLINS EDITION is part of the Commencal Meta Am model. 60 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Commençal META AM 29 ESSENTIAL 2023 is the most economical model, with a starting price of 2548$. Commençal META AM 29 TEAM 2023 on the other hand costs 4247$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 4122$. Comparing the average cost of an Enduro bike to this one, you will see that META AM 29 OHLINS EDITION price is 14.53% more expensive.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, META AM 29 OHLINS EDITION has a weight of 16 kg (35.27 lbs). In other words, this model is 12.12% heavier than the average Enduro bike.
META AM 29 OHLINS EDITION components
Rear Shock
From the factory, it comes with the ?HLINS TTX22M rear shock model, which has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the META AM 29 OHLINS EDITION model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 210 cm (5.18 ft – 6.89 ft). In short, you can easily find one that suits you.
Dropper post
Commençal META AM 29 OHLINS EDITION includes a dropper post. Therefore, climbing or descending will be a breeze.
