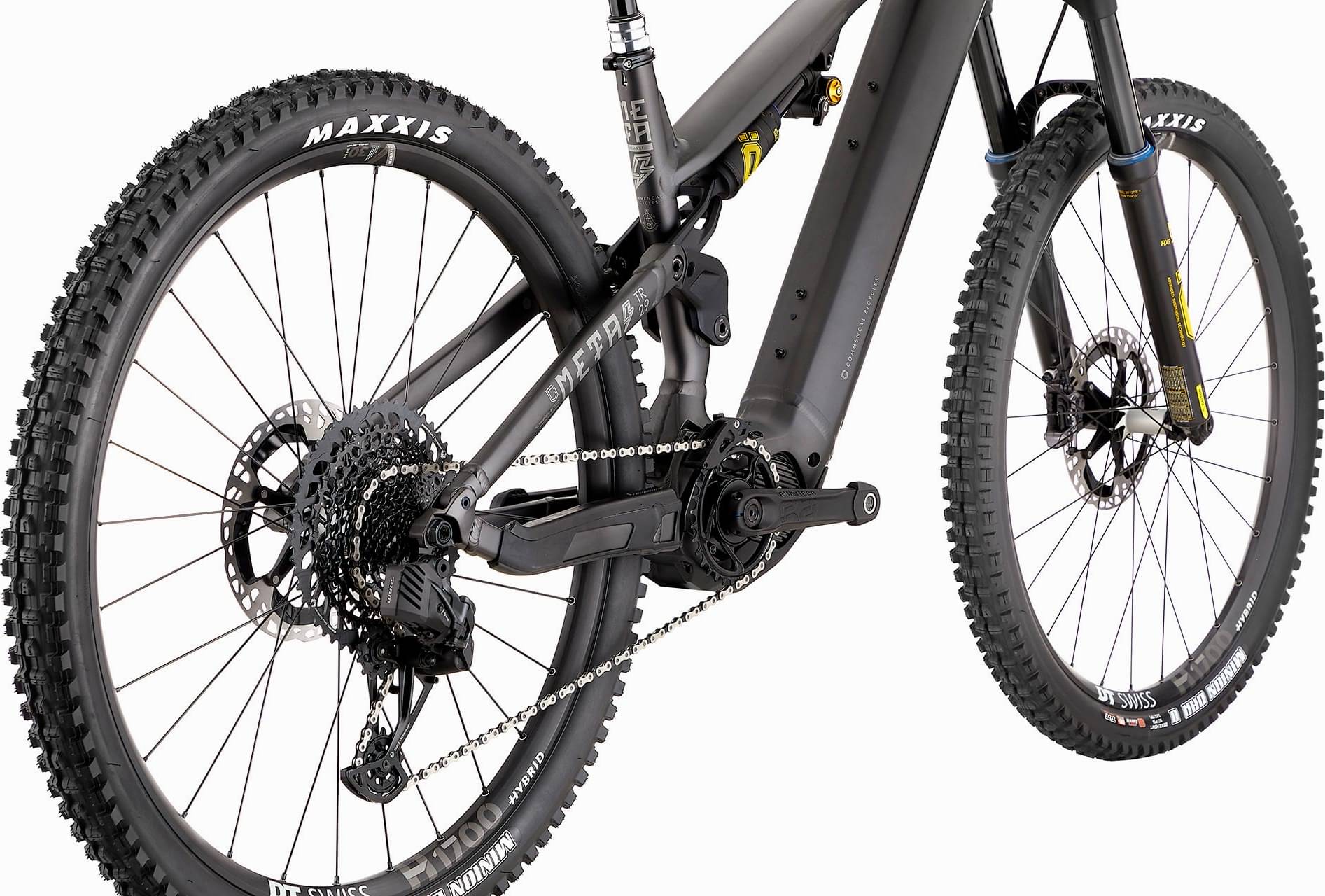

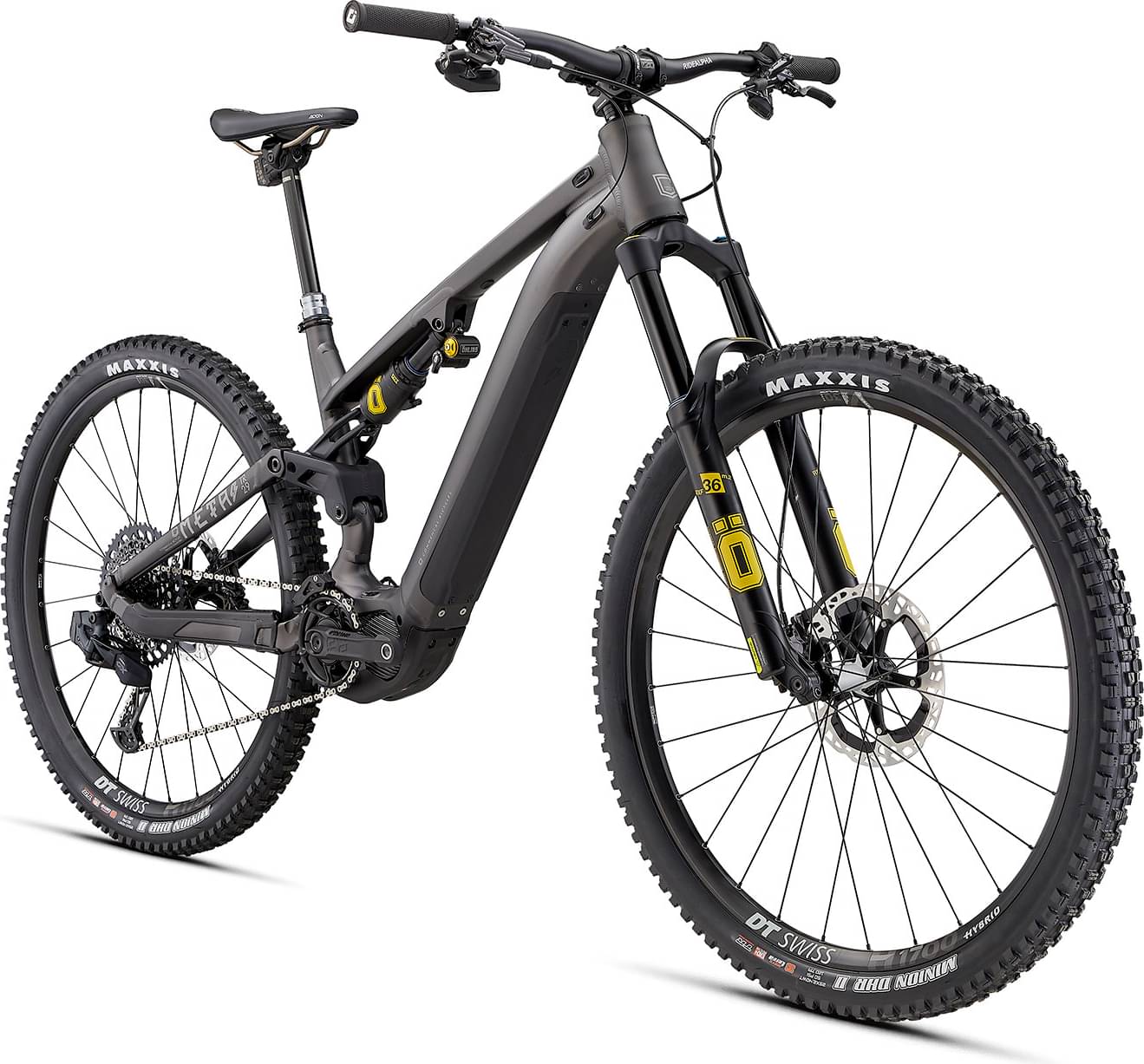

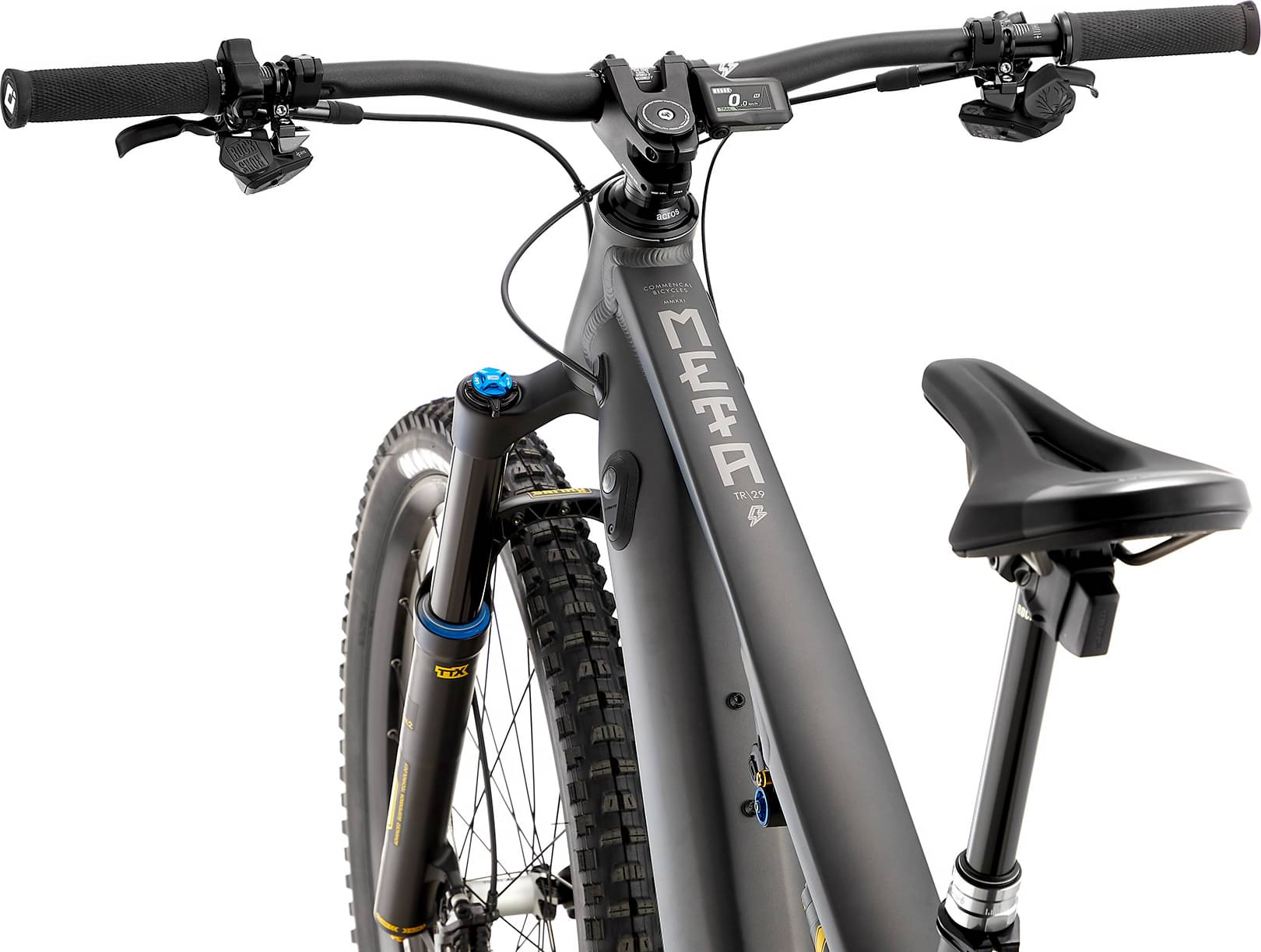

Commençal META POWER 29 TR OHLINS EDITION AXS 2021
2021 E-bike
Estimate price |
8,500$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Öhlins RXF36
-
Groupset GX Eagle AXS, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-E8036, 630Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2021 Meta Power TR, 140 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Suspension Fork
ÖHLINS RXF 36 M.2 Air, 150mm, 29", TTX18 cartridge, HSC 3 positions, LSC, rebound Boost (15 x 110 mm), 44 mm offset
Rear Shock
ÖHLINS TTX2 Air, 210 x 55 mm, climb mode, Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and Rebound damping
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS, 12sp, Electrical, with battery
Shift Levers
SRAM GX Eagle AXS, 12sp, Electrical, with battery
Cassette
SRAM GX Eagle, 12sp, 12s, 10-52t
Crank
E13 or SHIMANO, 160 MM crank arms
Bottom Bracket
SHIMANO
Chain
SRAM GX Eagle, 12sp, 12s
Chain Guide
RIDE ALPHA EP8, 32-34t
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, e-bike specific - Front: 32h, sealed bearings
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, e-bike specific - Front: 32h, sealed bearings
Rims
DT SWISS H1700 Spline, 29'', 32h, 30 mm inner width
Tires
Rear: MAXXIS DHRII, 29 x 2.40 WT - Front: MAXXIS DHRII, 29 x 2.40 WT, Rear: 3C MaxxTerra EXO+ TR - Front: 3C MaxxTerra EXO+ TR
Brakes
Brakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Cockpit
Stem
RIDE ALPHA Freeride 50, 50 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 E-Bike, 31,8 mm, 780 mm width, 20 mm rise, Alloy 6061, electric wire internal routing
Grips
YES
Headset
ACROS ZS56 / ZS66, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Aidon X3, E-bike specific, 145 mm width, wingflex rails
Seatpost
ROCKSHOX reverb AXS, 31.6 mm 125 mm on S, 150 mm on M, 170 mm on L/XL, Electrical, with battery
Motor & Battery
Motor
SHIMANO DU-EP800, 250 W, 85 Nm
Battery
SHIMANO BT-E8036, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.27 mm | 1.2 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 778 mm | 800 mm | 827 mm | 852 mm |
| Rake | 54 mm | 53 mm | 53 mm | 53 mm |
| Trail | 119 mm | 120 mm | 120 mm | 120 mm |
| Stack | 601 mm | 606 mm | 610 mm | 610 mm |
| Reach | 437 mm | 457 mm | 482 mm | 507 mm |
| Top Tube Length | 576 mm | 597 mm | 623 mm | 648 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 425 mm | 450 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1227 mm | 1249 mm | 1276 mm | 1301 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 754 mm | 756 mm | 759 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 172 cm | 182 cm | 192 cm | 203 cm |
About this model
META POWER 29 TR OHLINS EDITION AXS is a Commencal E Meta Power model. Commençal released 89 e-bikes variations of this model so far. You can easily view all of the Commencal E Meta Power e-bikes models from 2021, here.
Model range prices
The most economical model, the Commençal META POWER TR RIDE 2021 has a starting price of 5499$. Commençal META POWER TR OHLINS AXS 2021 on the other hand is the most expensive at 9025$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Commençal META POWER 29 TR OHLINS EDITION AXS price was 8500$. Comparing the average cost of a Trail e-bike to this one, you will see that META POWER 29 TR OHLINS EDITION AXS price is 152.6% more expensive.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.4 kg (53.79 lbs), Commençal e-bike is slightly heavier than average. To sum up, it’s 2.95% heavier than the average weight of Trail e-bikes.
Overview of components
Fork
Commençal META POWER 29 TR OHLINS EDITION AXS 2021 e-bike is equipped with the Öhlins RXF36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is ÖHLINS TTX2 Air, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the META POWER 29 TR OHLINS EDITION AXS e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Commençal META POWER 29 TR OHLINS EDITION AXS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
META POWER 29 TR OHLINS EDITION AXS comes in 4 sizes, that range from 160 cm – 203 cm (5.25 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Commençal META POWER 29 TR OHLINS EDITION AXS comes with a dropper post. Therefore, climbing or descending will be a breeze.
