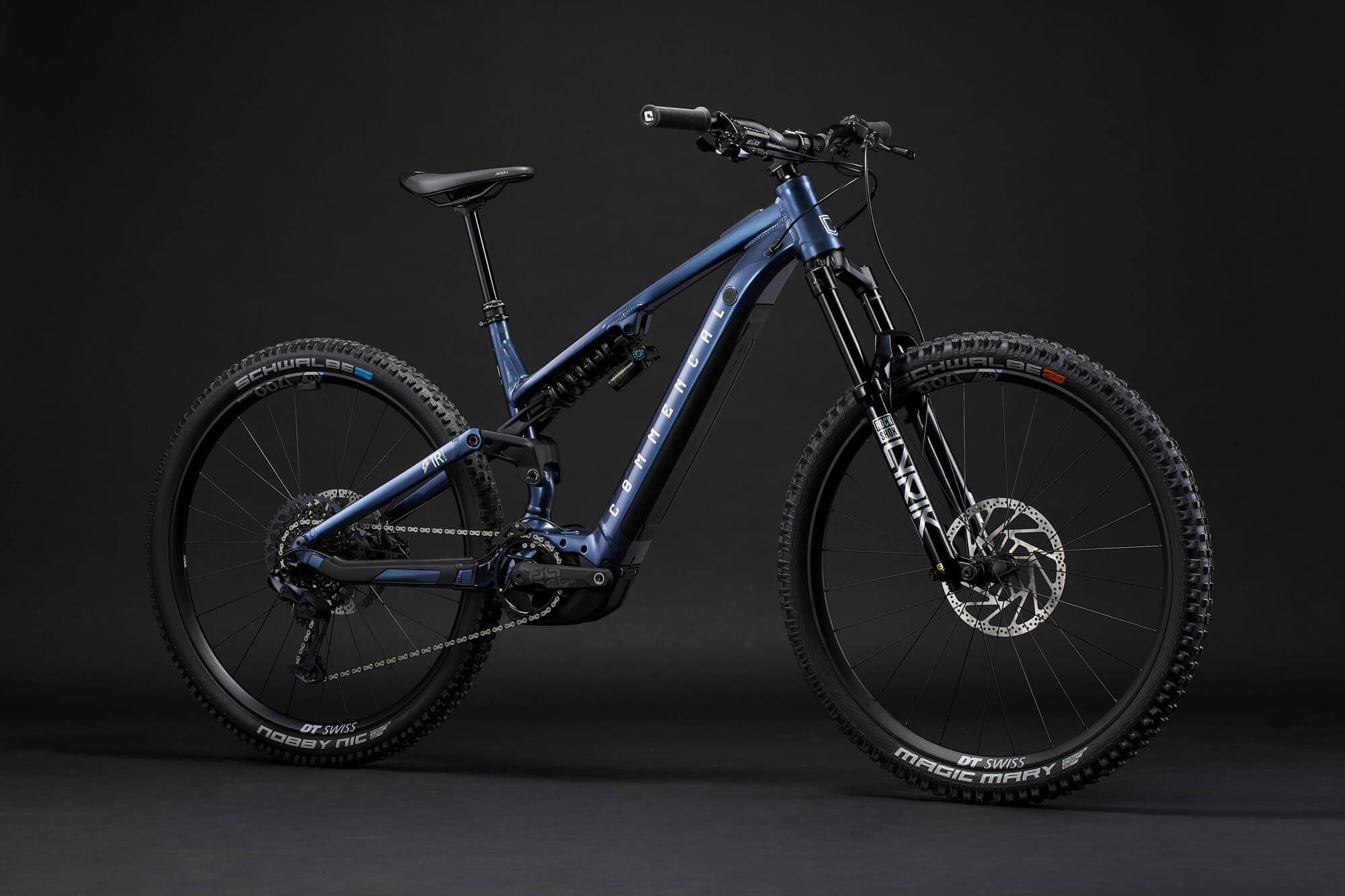

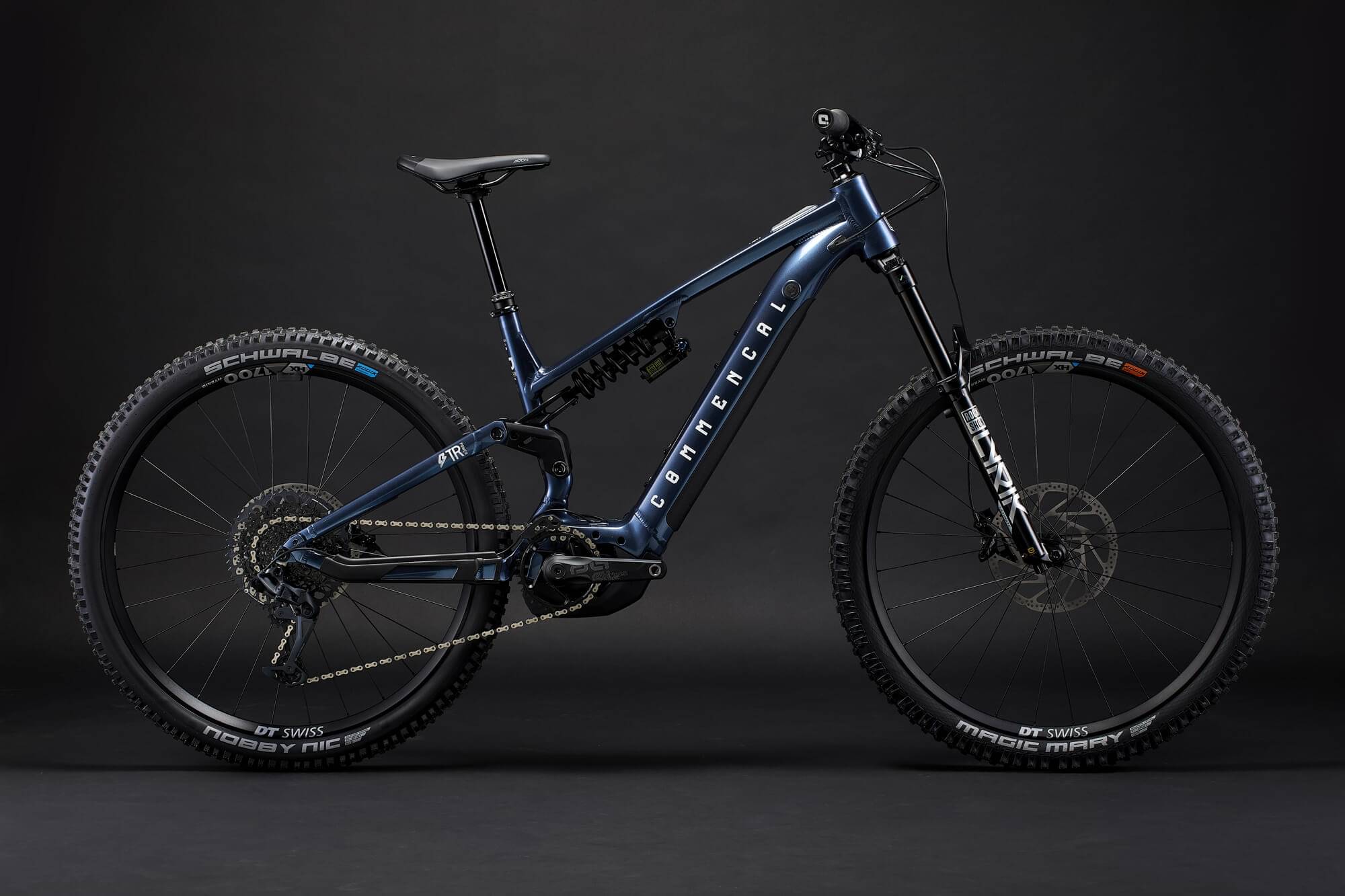

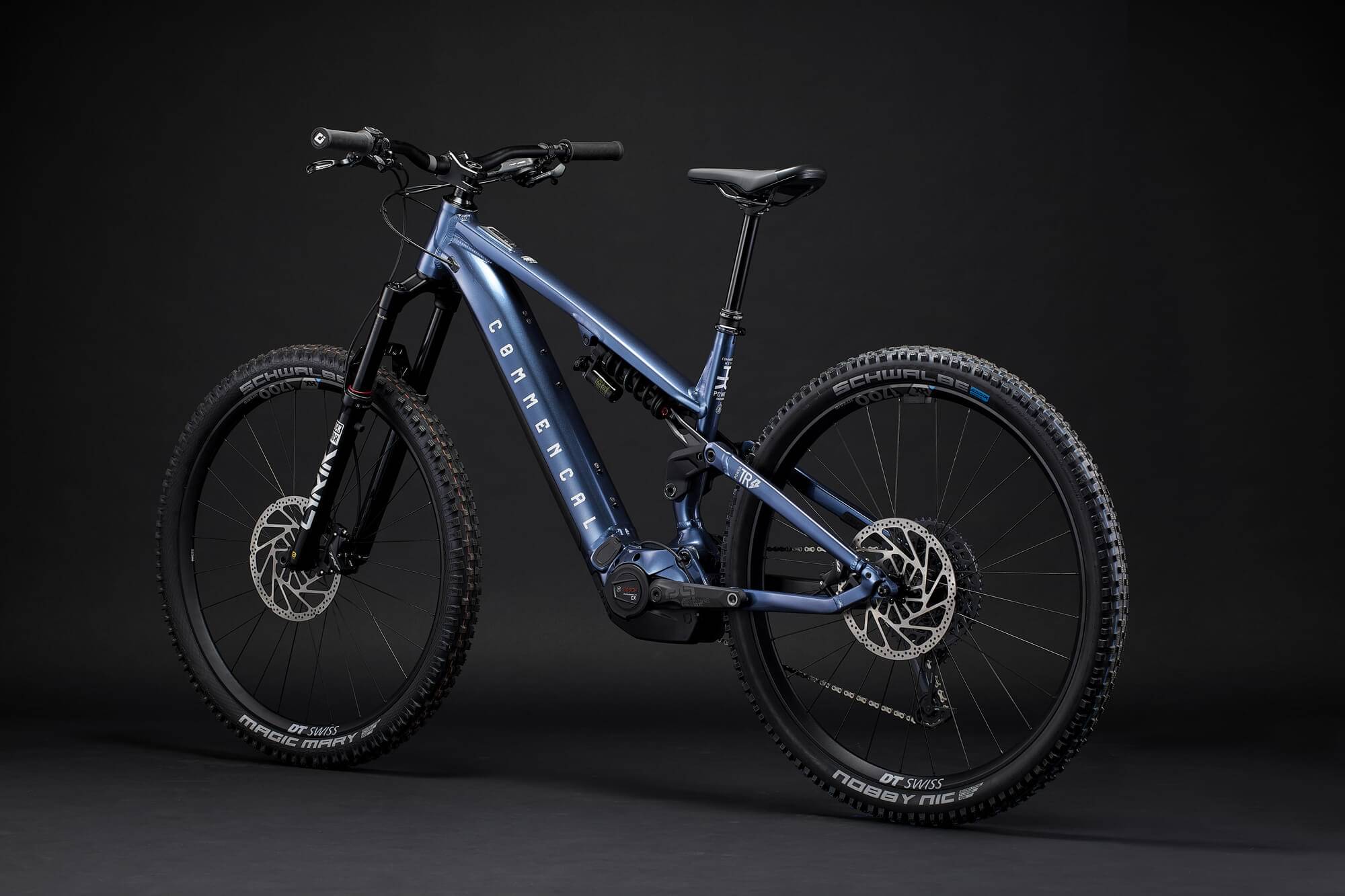

Commençal META POWER TR BOSCH RACE 2022
2022 E-bike
Estimate price |
6,900$
Weight | 24.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle, e*thirteen -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625, 625Wh, BOSCH 4A Charger, Compact size & lightweight, Compatible w/Bosch PowerMore 250 for extra range -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
META POWER TR BOSCH, 140 mm, 29", Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

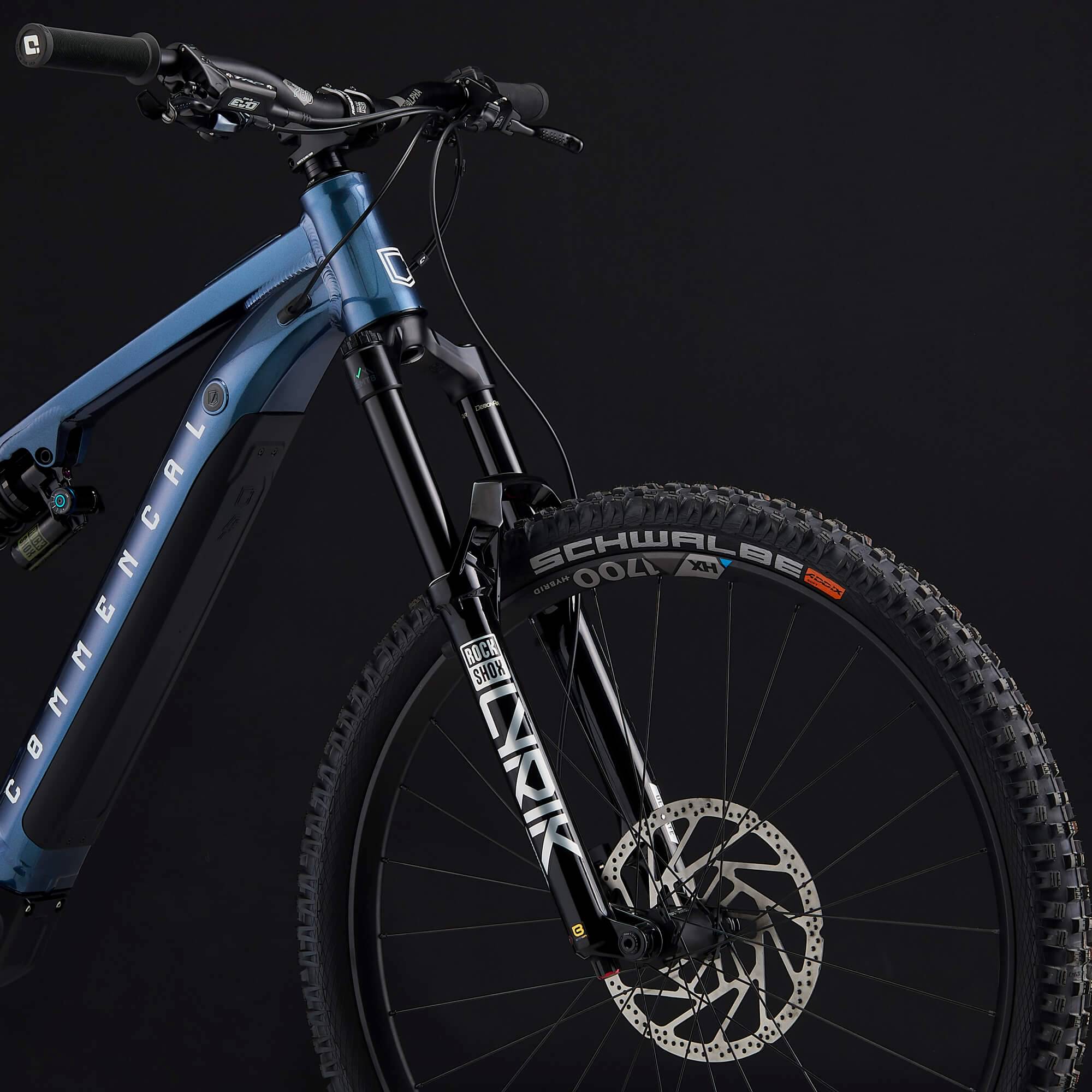

Suspension Fork
ROCKSHOX Lyrik Ultimate, 160 mm travel, 29", DebonAir+ W/ButterCups, Charger 3 RC2 W/ButterCups damper, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 Token

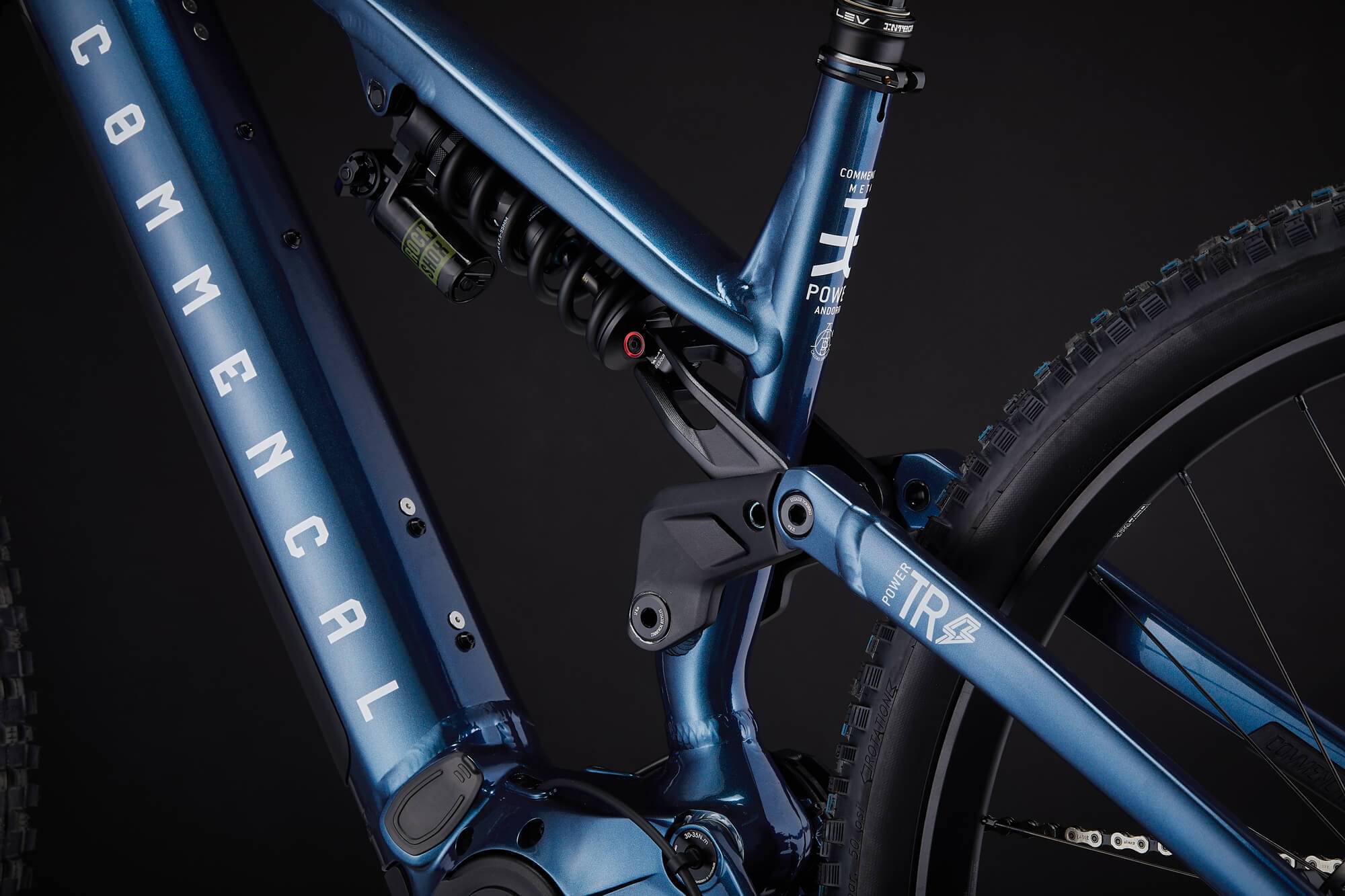

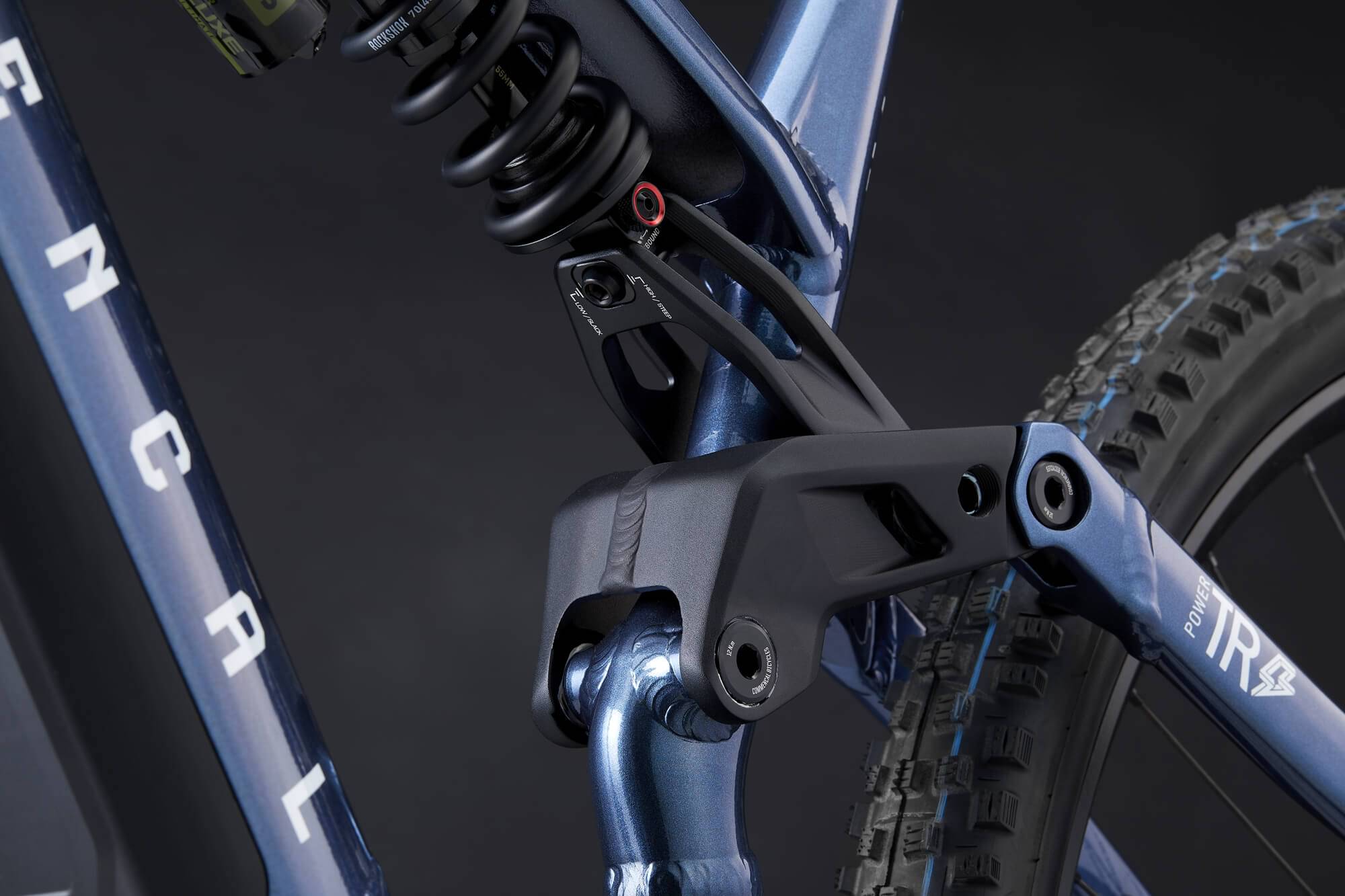

Rear Shock
ROCKSHOX Super Deluxe Ultimate, 210 x 55 mm, RC2T Adj. Hydraulic Bottom Out, HSC, LSC, rebound, 2-position adjustment. Spring rates : 350lbs on S, 350 on M, 400lbs on L, 450lbs on XL, 2-position adjustment

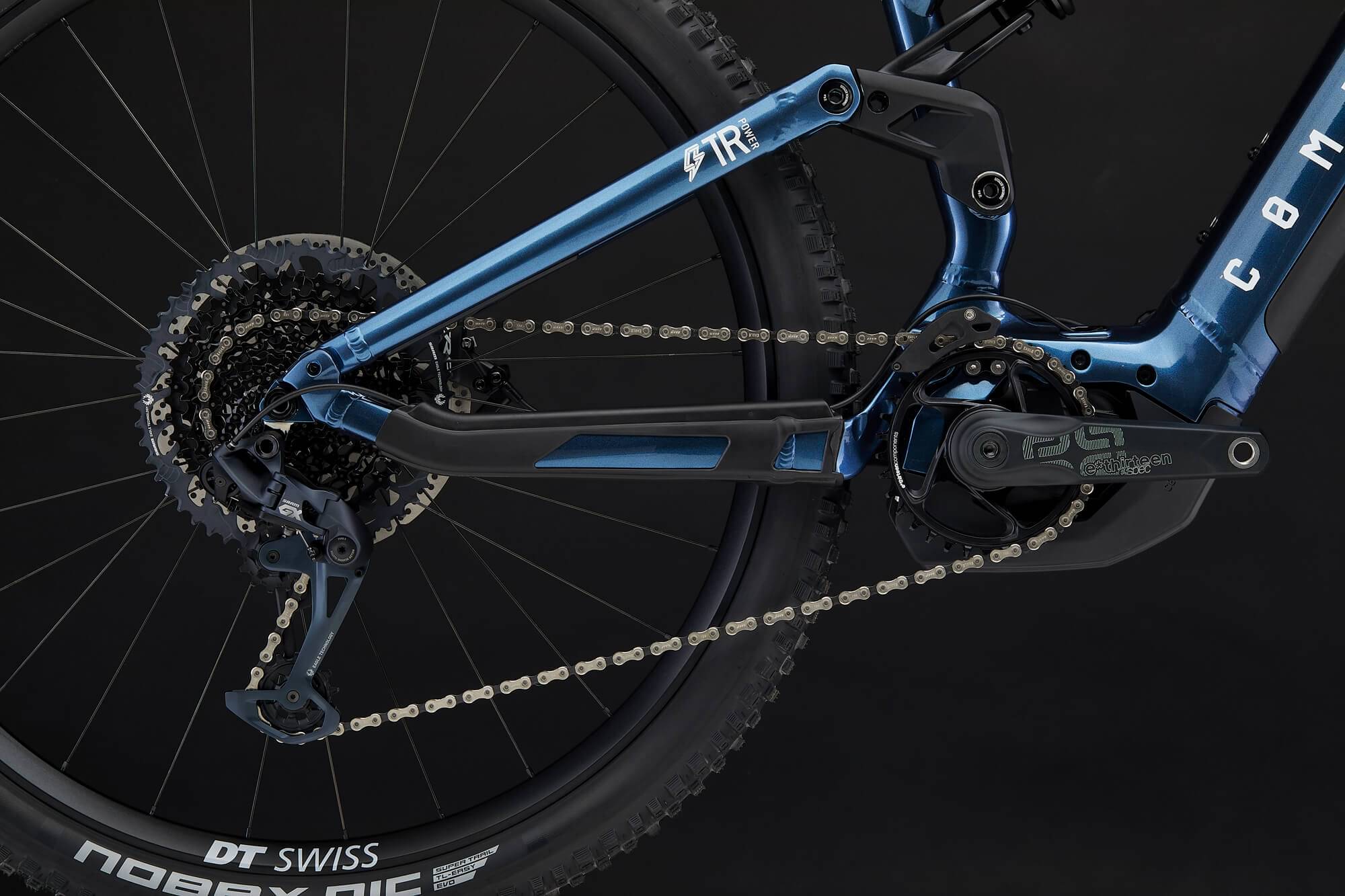

Drivetrain
Rear Derailleur
SRAM GX Eagle, 12s
Shift Levers
SRAM GX Eagle, 12s, Single Click
Cassette
SRAM GX Eagle, 12s, 10-52t
Crank
E13 E*Spec Plus Bosch CX, 160 mm crank arms, Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mount
Bottom Bracket
BOSCH
Chain
SRAM GX Eagle, 12s
Chain Guide
RIDE ALPHA Upper Guide, 32-34t
Wheels
Front Hub
Rear: DT SWISS 370 - Front: DT SWISS 370, Rear: 28h, sealed bearings, 18t, e-bike specific - Front: 28h, sealed bearings
Rear Hub
Rear: DT SWISS 370 - Front: DT SWISS 370, Rear: 28h, sealed bearings, 18t, e-bike specific - Front: 28h, sealed bearings
Rims
Rear: DT SWISS H1900 Spline - Front: DT SWISS H1900 Spline, Rear: 29'', 28h, sleeved, 30 mm inner width - Front: 29'', 28h, sleeved, 30 mm inner width
Tires
Rear: MAXXIS DHR II - Front: MAXXIS DHR II, Rear: 29"x2.4" WT, 3C Maxx Terra, Exo+ casing, TR - Front: 29"x2.4" WT, 3C Maxx Terra, Exo+ casing, TR
Brakes
Brakes
TRP DH-R Evo, 4 pistons, Rotor: TRP R1 220 mm, 6-bolt, 2.3 mm width

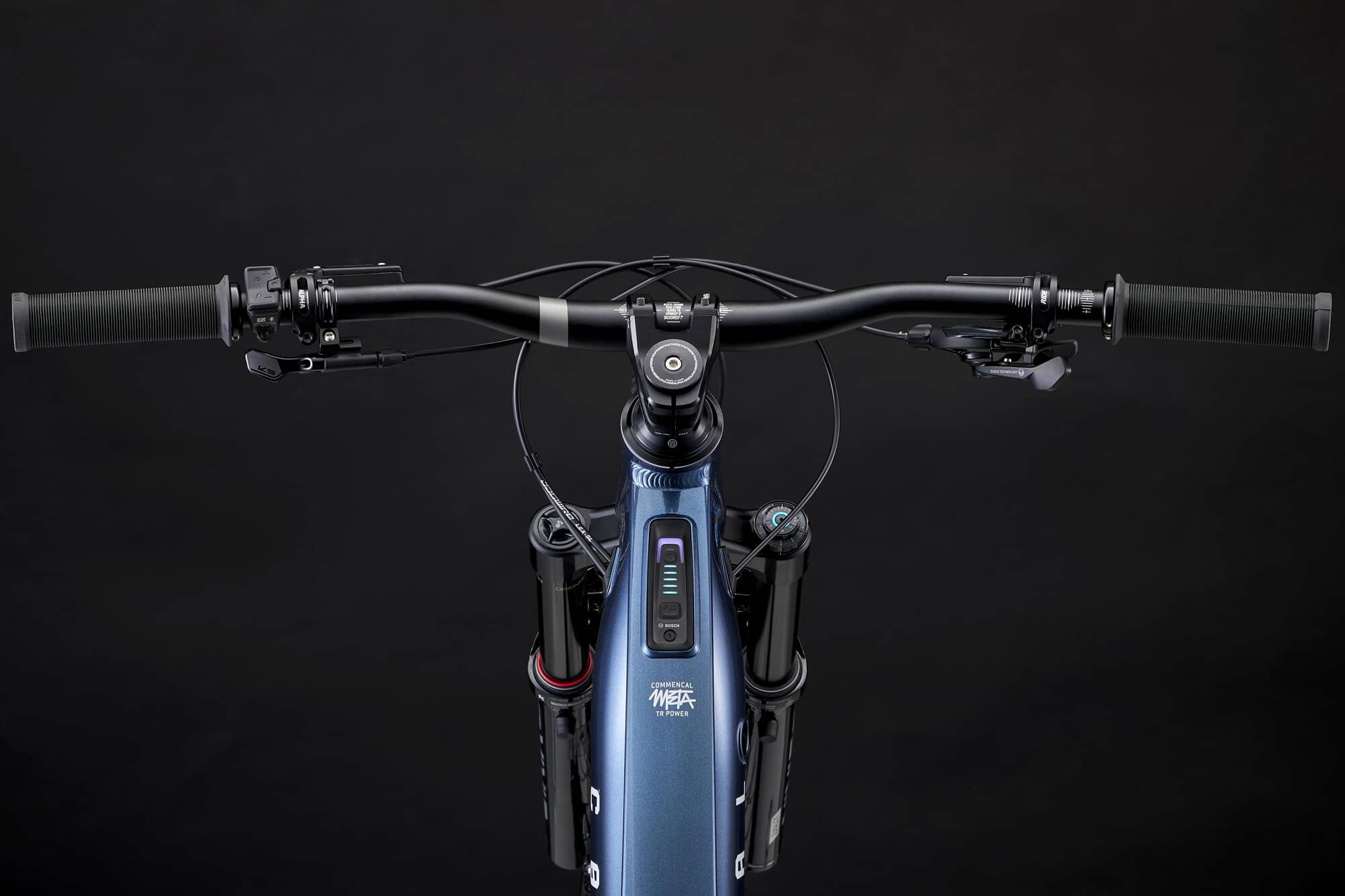

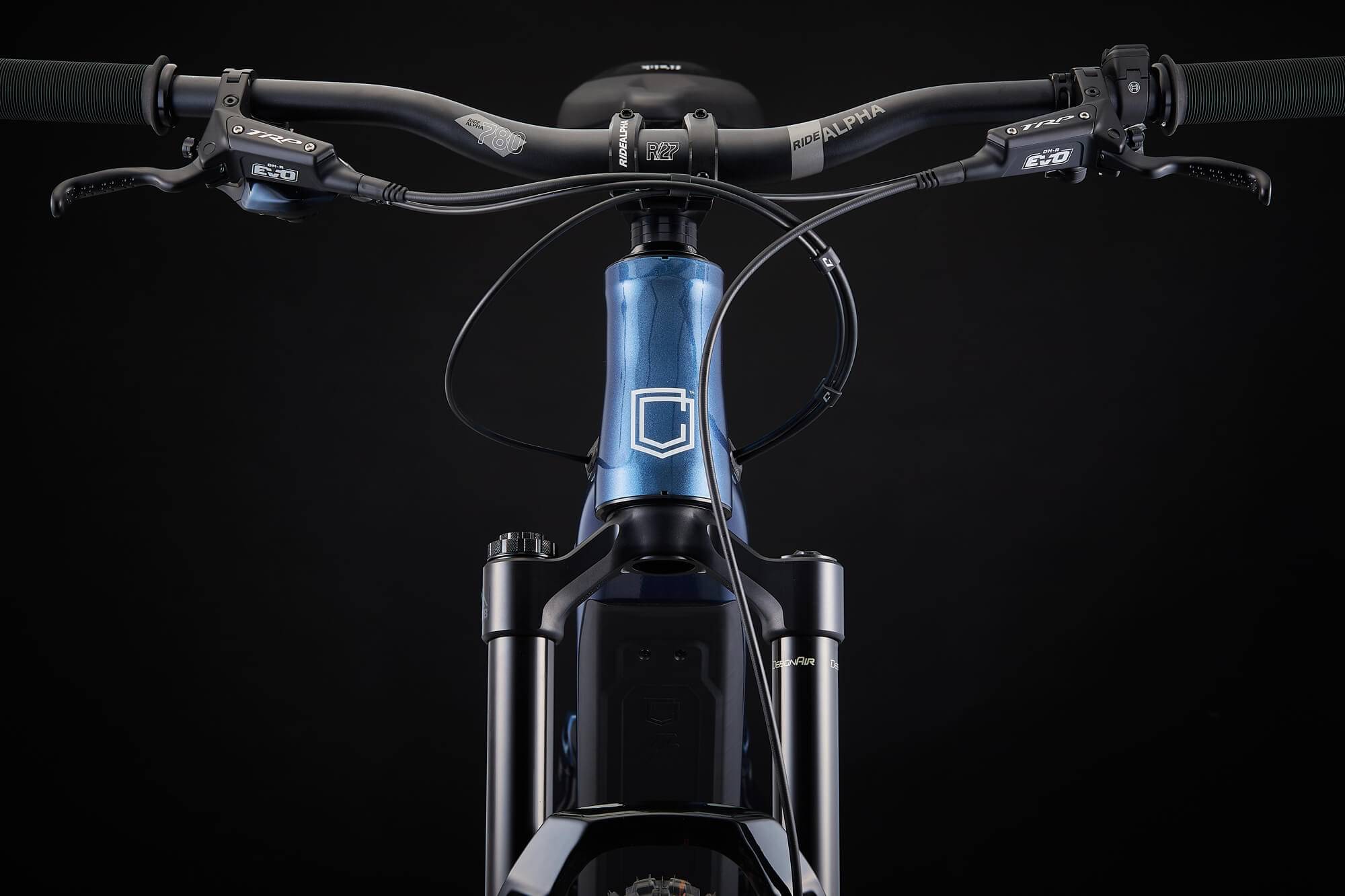

Cockpit
Stem
RIDE ALPHA 40 EXTERNAL, 40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL, Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS66, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Terra Aidon X5, 145 mm width, S-Alloy Mobius rails
Seatpost
KS Rage I, 31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remote
Motor & Battery
Motor
BOSCH Performance Line CX, Max. torque: 85N.m, 250W
Battery
BOSCH PowerTube 625, 625Wh, BOSCH 4A Charger, Compact size & lightweight, Compatible w/Bosch PowerMore 250 for extra range
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.33 mm | 1.34 mm | 1.27 mm | 1.28 mm | 1.2 mm | 1.22 mm |
| Bottom Bracket Height | 353 mm | 349 mm | 353 mm | 349 mm | 353 mm | 349 mm | 353 mm | 349 mm |
| Front Center | 778 mm | 778 mm | 800 mm | 800 mm | 827 mm | 827 mm | 852 mm | 852 mm |
| Rake | 54 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 119 mm | 123 mm | 120 mm | 123 mm | 120 mm | 123 mm | 120 mm | 123 mm |
| Stack | 601 mm | 604 mm | 606 mm | 609 mm | 610 mm | 613 mm | 610 mm | 613 mm |
| Reach | 437 mm | 433 mm | 457 mm | 453 mm | 482 mm | 478 mm | 507 mm | 503 mm |
| Top Tube Length | 576 mm | 577 mm | 597 mm | 598 mm | 623 mm | 624 mm | 648 mm | 649 mm |
| Seat Tube Angle | 77.5 ° | 77.1 ° | 77.5 ° | 77.1 ° | 77.5 ° | 77.1 ° | 77.5 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 420 mm | 440 mm | 440 mm | 460 mm | 460 mm |
| Head Tube Angle | 64.5 ° | 64.1 ° | 64.5 ° | 64.1 ° | 64.5 ° | 64.1 ° | 64.5 ° | 64.1 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 125 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 450 mm | 451 mm | 450 mm | 451 mm | 450 mm | 451 mm | 450 mm | 451 mm |
| Wheelbase | 1227 mm | 1228 mm | 1249 mm | 1250 mm | 1276 mm | 1277 mm | 1301 mm | 1302 mm |
| Bottom Bracket Drop | 21 mm | 25 mm | 21 mm | 25 mm | 21 mm | 25 mm | 21 mm | 25 mm |
| Standover Height | 754 mm | 754 mm | 756 mm | 756 mm | 759 mm | 759 mm | 762 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
META POWER TR BOSCH RACE belongs to the Commencal E Meta Power model. Commençal released 89 e-bikes variations of this model so far. Take a sneak peek at all Commencal E Meta Power e-bikes models from 2022, by clicking here.
Model range prices
Commençal META POWER 29 TEAM 2022 is the cheapest e-bike model and costs 5700$. Commençal META POWER SX SHIMANO SIGNATURE 2022 is the most expensive one and costs 9344$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6900$. In conclusion, this e-bike price is 105.05% higher than the price of the average Trail e-bike.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Commençal META POWER TR BOSCH RACE it’s weighing 24.1 kg (53.13 lbs). At this weight, is slightly heavier than average. To sum up, it’s 1.69% heavier than the average weight of Trail e-bikes.
Overview of components
Fork
Commençal META POWER TR BOSCH RACE 2022 e-bike is equipped with the RockShox Lyrik Ultimate fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the ROCKSHOX Super Deluxe Ultimate rear shock model, which has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the META POWER TR BOSCH RACE e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The META POWER TR BOSCH RACE has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Commençal META POWER TR BOSCH RACE includes a dropper post. Therefore, climbing or descending will be a breeze.
