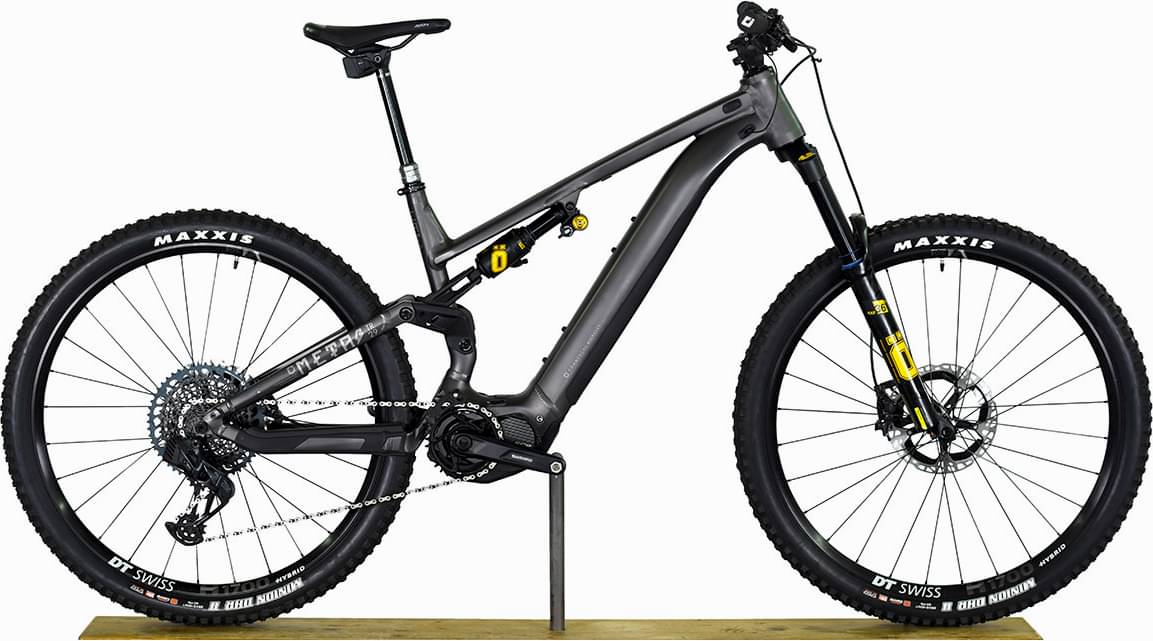

Commençal META POWER TR OHLINS AXS 2023
2023 E-bike
Estimate price |
7,685$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Groupset GX Eagle AXS, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-E8036, 630Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2021 Meta Power TR, 140 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

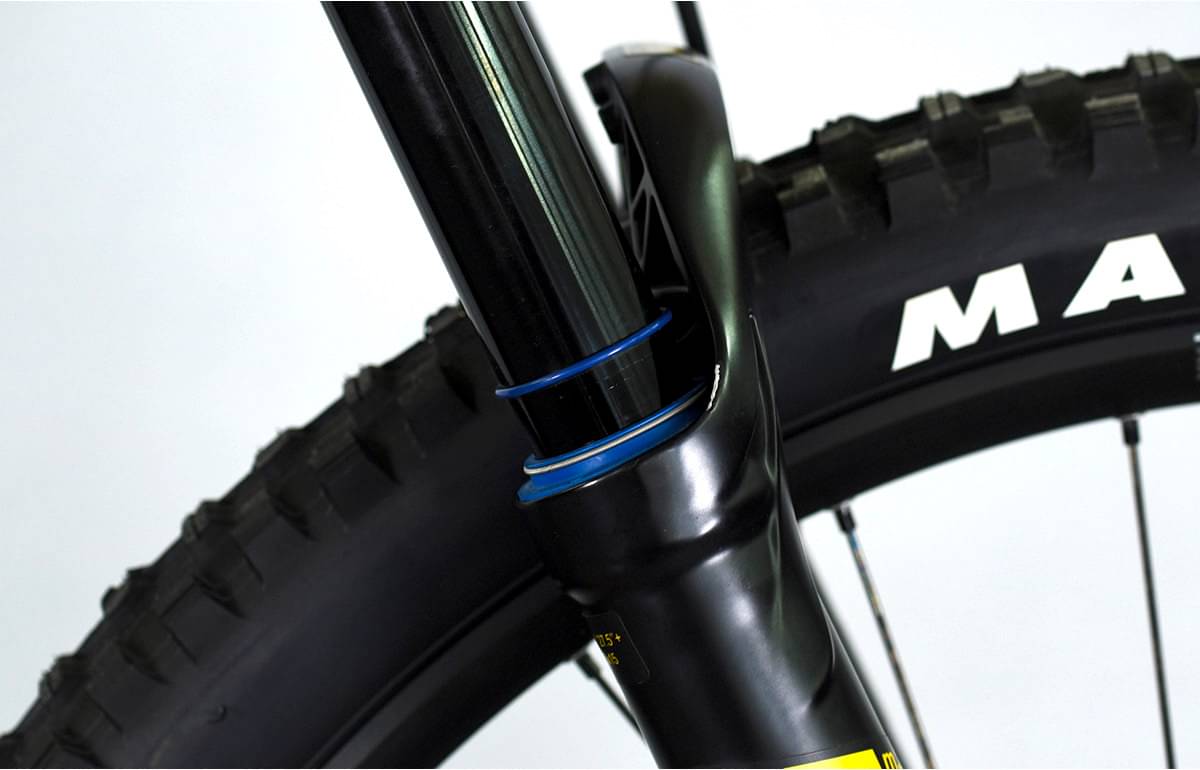

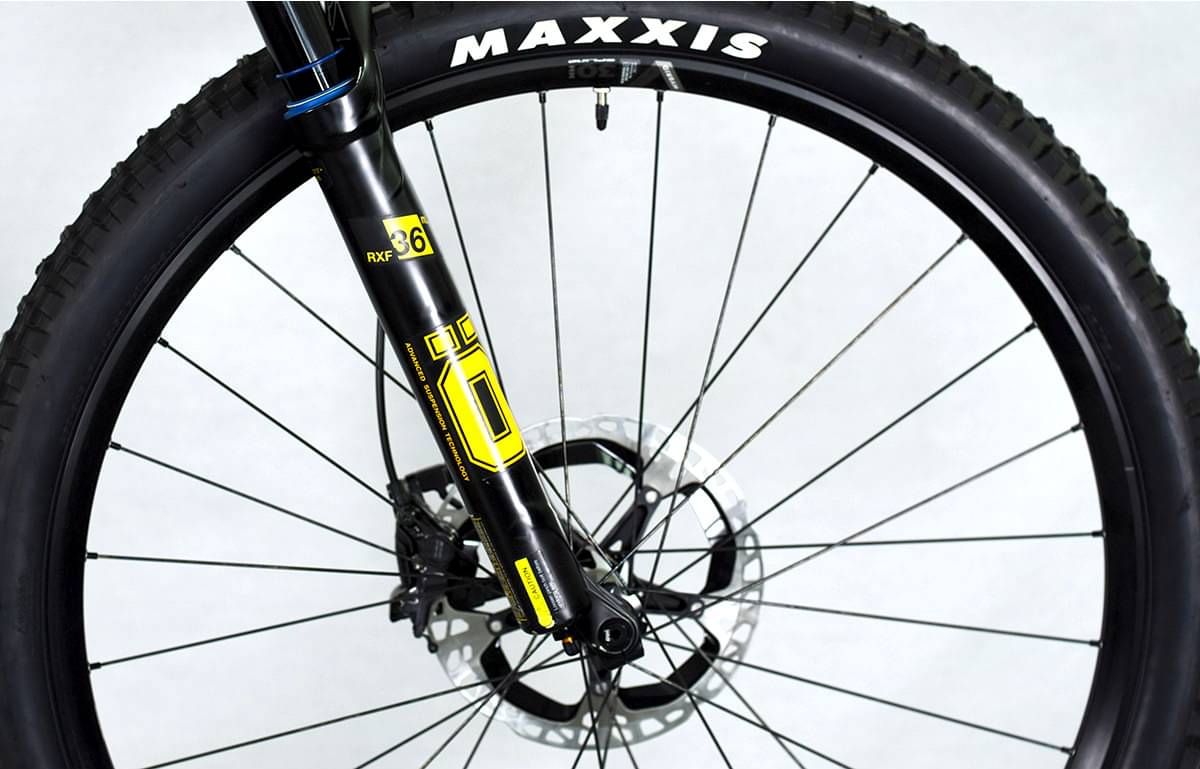

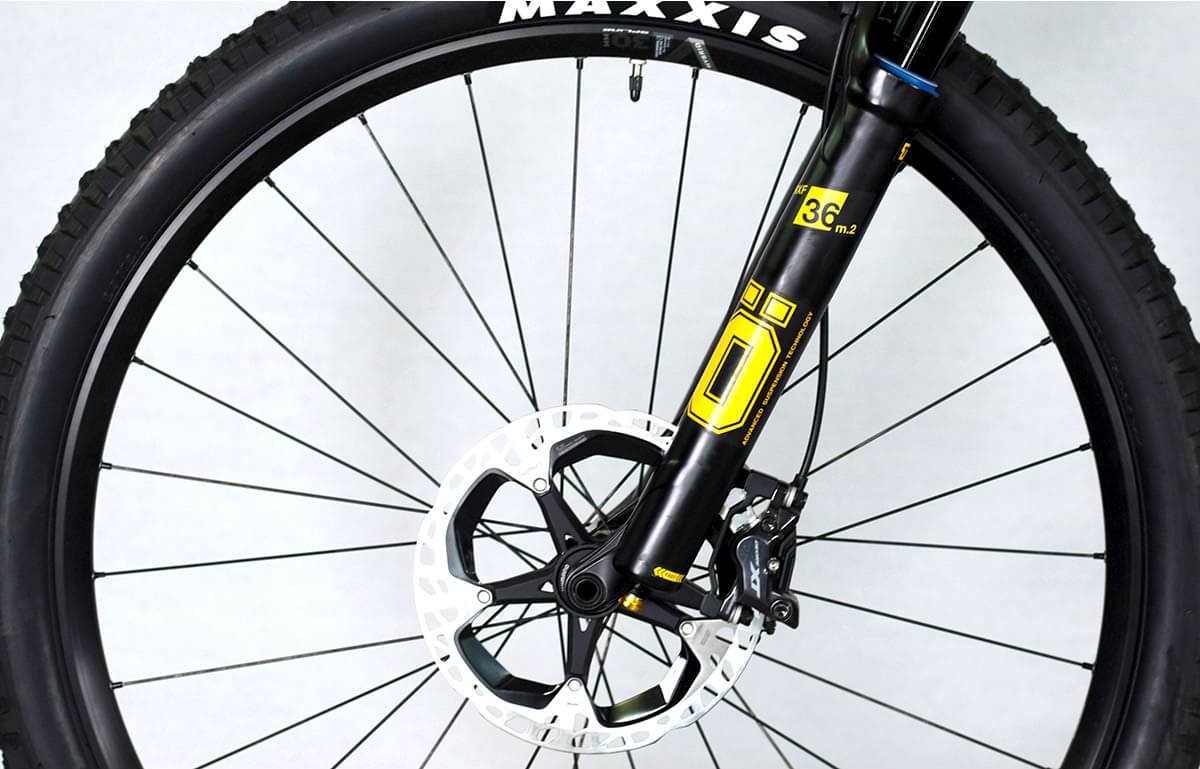

Suspension Fork
?HLINS RXF 36 M.2 Air, 150mm, 29", TTX18 cartridge, HSC 3 positions, LSC, rebound Boost (15 x 110 mm), 44 mm offset
Rear Shock
?HLINS TTX2 Air, 210 x 55 mm, climb mode, Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and Rebound damping
Drivetrain

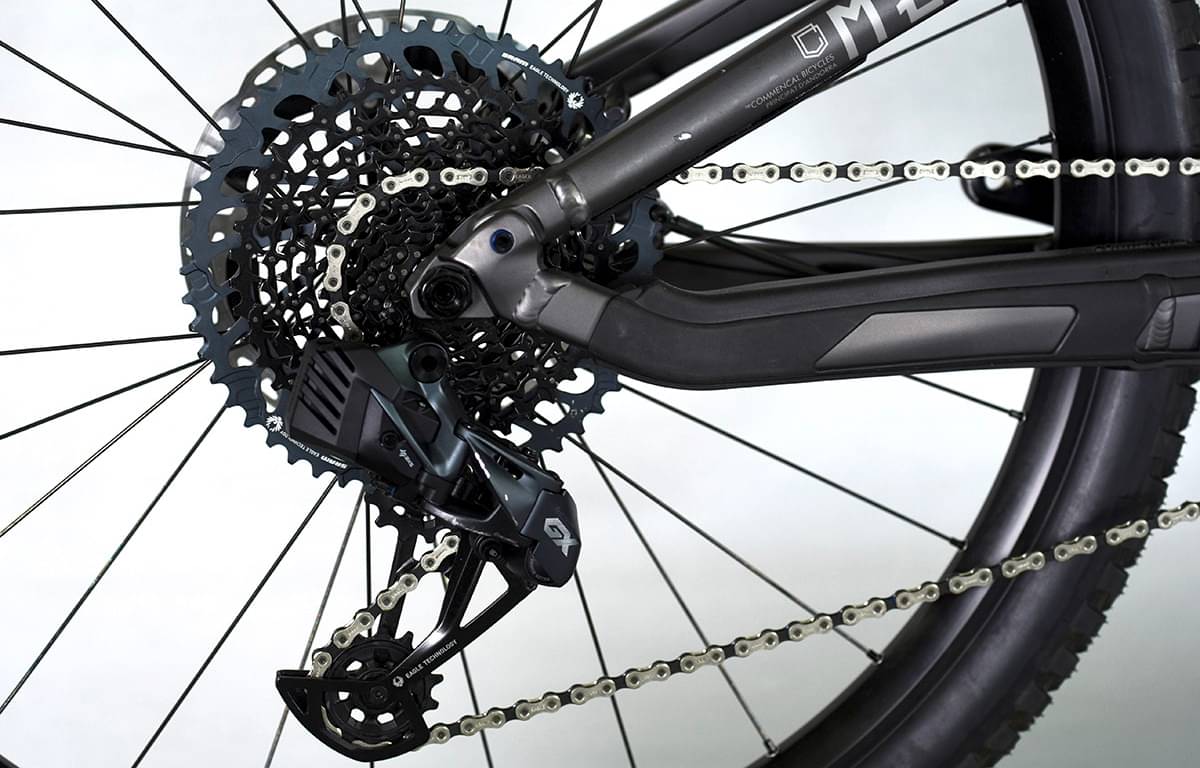

Rear Derailleur
SRAM GX Eagle AXS, 12sp, Electrical, with battery
Shift Levers
SRAM GX Eagle AXS, 12sp, Electrical, with battery
Cassette
SRAM GX Eagle, 12sp, 12s, 10-52t
Crank
E13 or SHIMANO, 160 MM crank arms
Bottom Bracket
SHIMANO
Chain
SRAM GX Eagle, 12sp, 12s

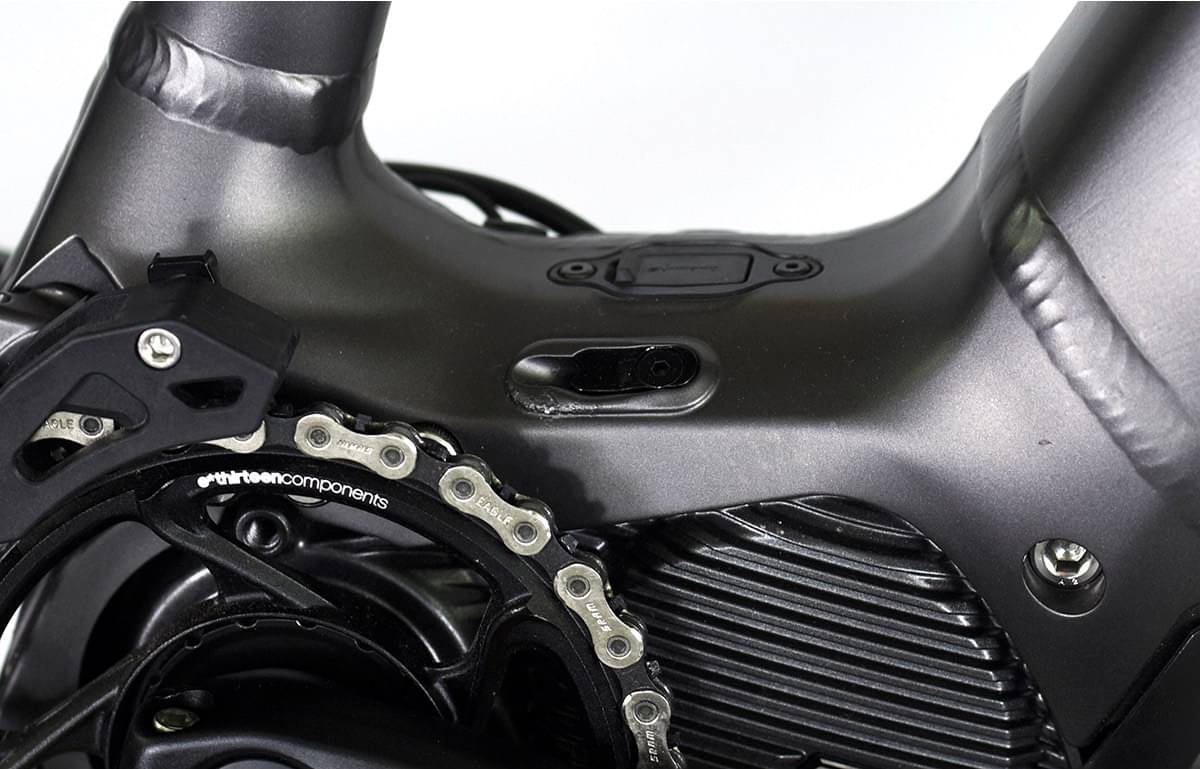

Chain Guide
RIDE ALPHA EP8, 32-34t
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, e-bike specific - Front: 32h, sealed bearings
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, e-bike specific - Front: 32h, sealed bearings
Rims
DT SWISS H1700 Spline, 29'', 32h, 30 mm inner width
Tires
Rear: MAXXIS DHRII, 29 x 2.40 WT - Front: MAXXIS DHRII, 29 x 2.40 WT, Rear: 3C MaxxTerra EXO+ TR - Front: 3C MaxxTerra EXO+ TR

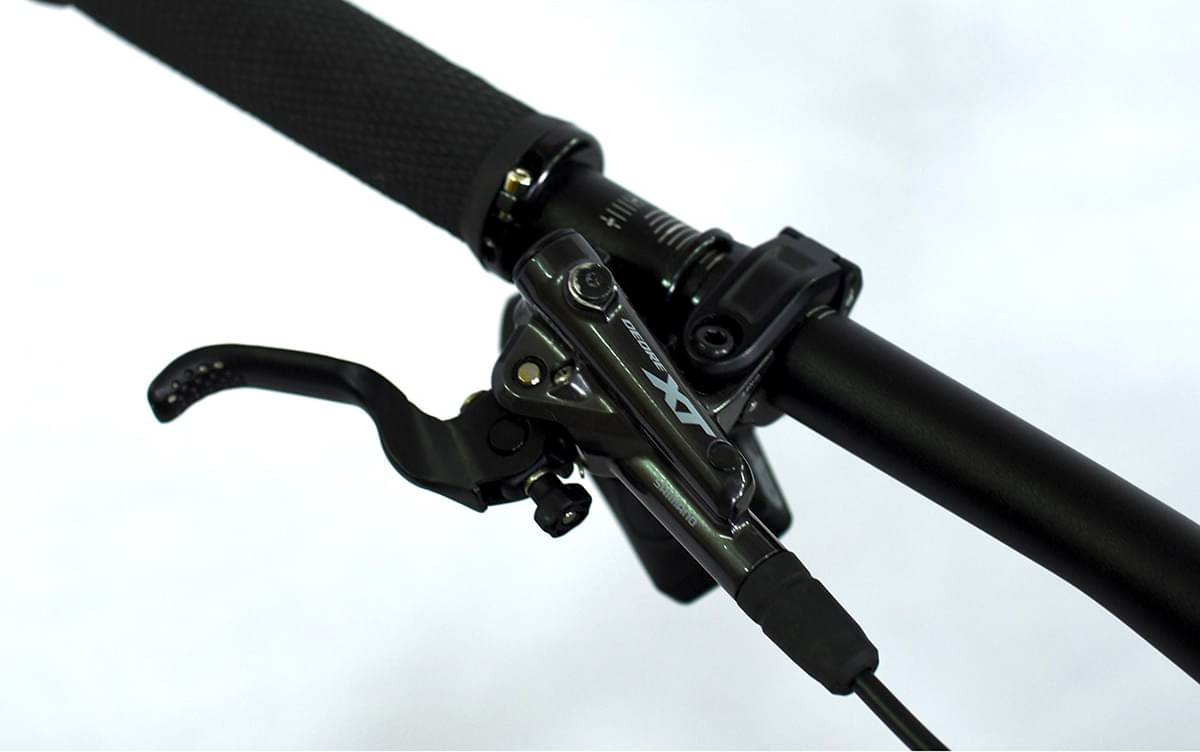

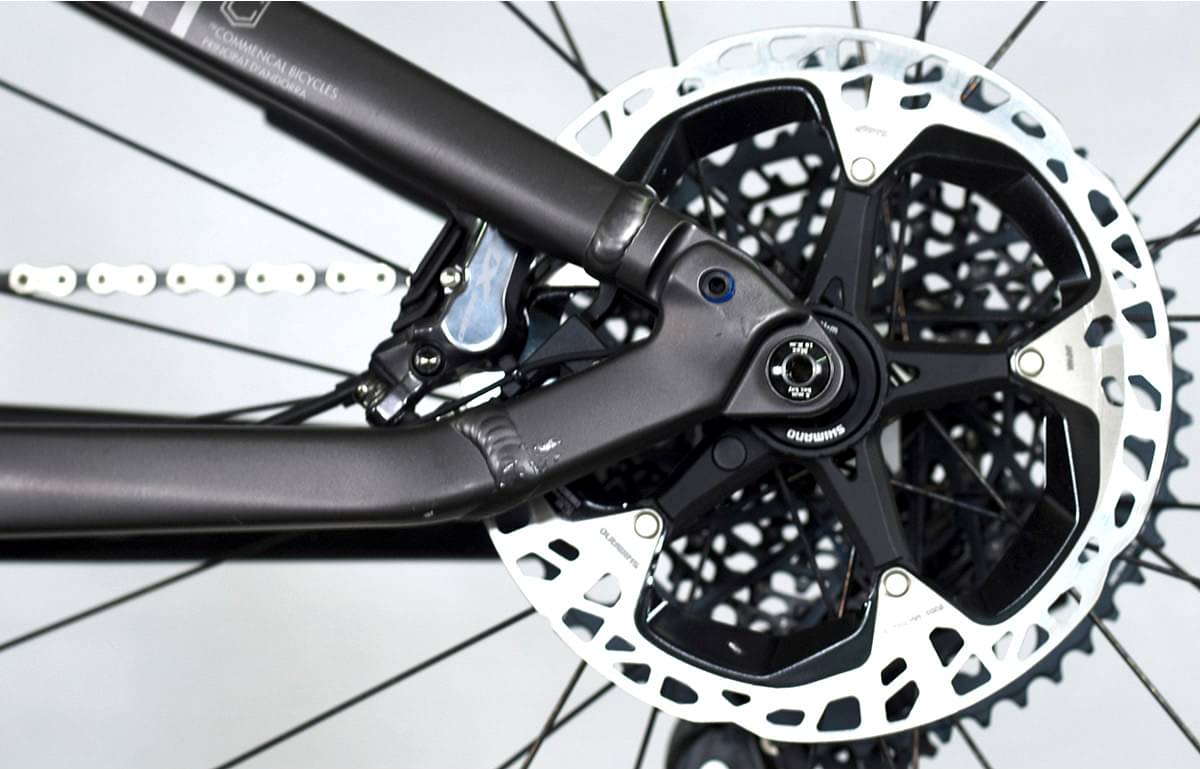

Brakes
Brakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Cockpit
Stem
RIDE ALPHA Freeride 50, 50 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 E-Bike, 31,8 mm, 780 mm width, 20 mm rise, Alloy 6061, electric wire internal routing
Grips
YES

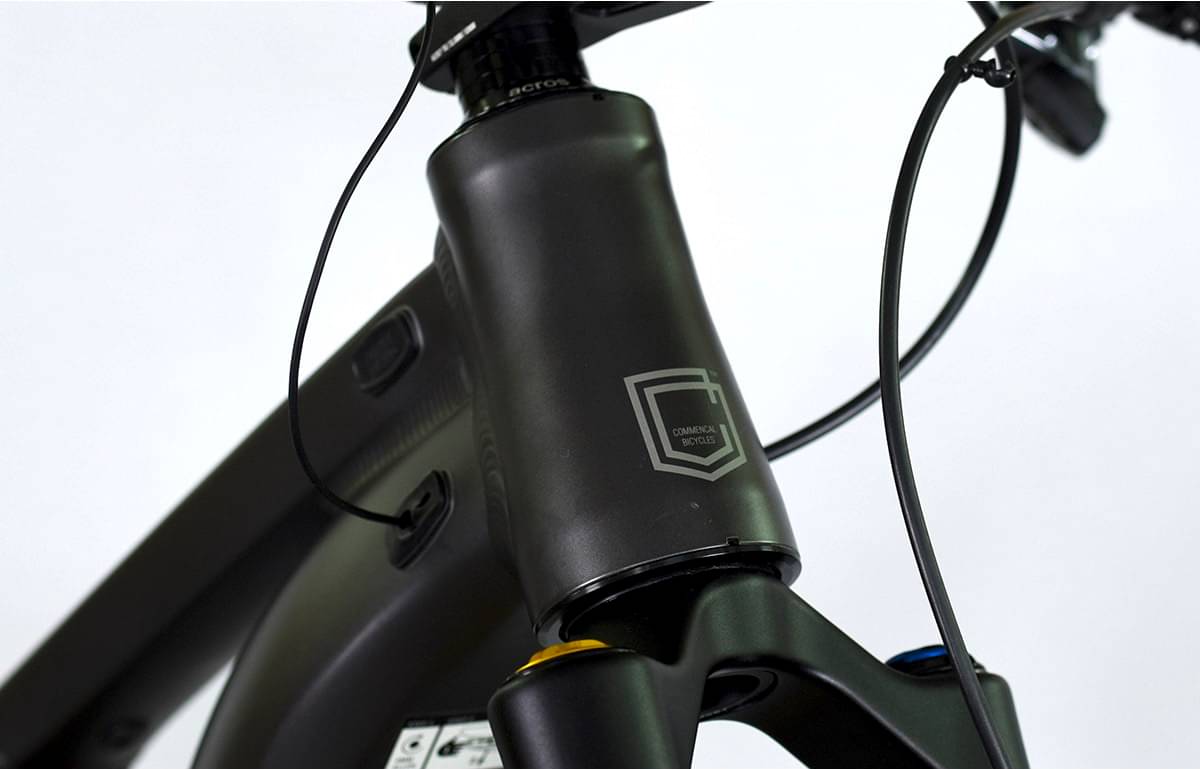

Headset
ACROS ZS56 / ZS66, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Aidon X3, E-bike specific, 145 mm width, wingflex rails
Seatpost
ROCKSHOX reverb AXS, 31.6 mm 125 mm on S, 150 mm on M, 170 mm on L/XL, Electrical, with battery
Motor & Battery

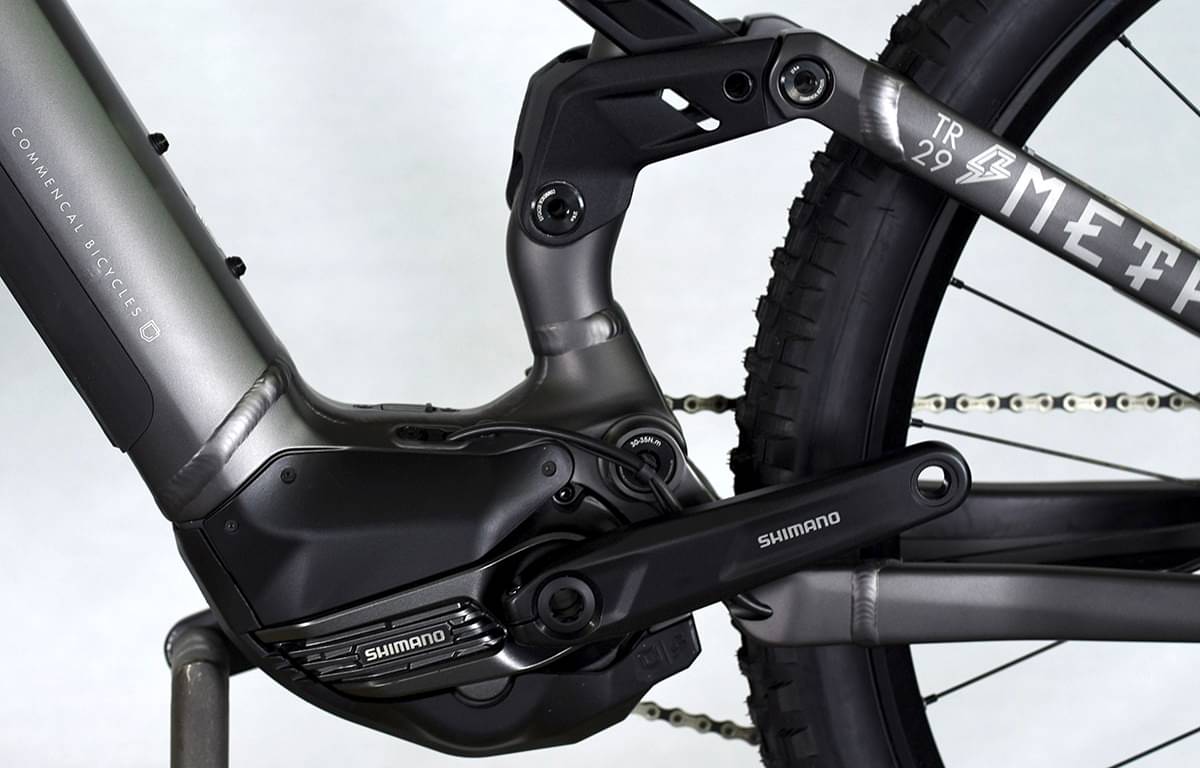

Motor
SHIMANO DU-EP800, 250 W, 85 Nm
Battery
SHIMANO BT-E8036, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.27 mm | 1.2 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 778 mm | 800 mm | 827 mm | 852 mm |
| Rake | 54 mm | 53 mm | 53 mm | 53 mm |
| Trail | 119 mm | 120 mm | 120 mm | 120 mm |
| Stack | 601 mm | 606 mm | 610 mm | 610 mm |
| Reach | 437 mm | 457 mm | 482 mm | 507 mm |
| Top Tube Length | 576 mm | 597 mm | 623 mm | 648 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 425 mm | 450 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1227 mm | 1249 mm | 1276 mm | 1301 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 754 mm | 756 mm | 759 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 172 cm | 182 cm | 192 cm | 203 cm |
Model Overview
META POWER TR OHLINS AXS belongs to the Commencal E Meta Power model. 89 e-bikes variations carry this model name so far. You can easily view all of the Commencal E Meta Power e-bikes models from 2023, here.
Model range prices
Commençal KIT COMMENCAL META POWER 29 – Frame 2023 is the most economical model, with a starting price of 2654$. Commençal META POWER SX TEAM 2023 on the other hand costs 7326$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Commençal META POWER TR OHLINS AXS price was 7114$. In conclusion, this e-bike price is 111.41% higher than the price of the average Trail e-bike.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 24.4 kg (53.79 lbs), the META POWER TR OHLINS AXS model is slightly heavier than average. In conclusion, the average Trail e-bike weighs 2.95% less than META POWER TR OHLINS AXS.
META POWER TR OHLINS AXS components
Rear Shock
Commençal META POWER TR OHLINS AXS e-bike has the ?HLINS TTX2 Air model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on META POWER TR OHLINS AXS are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Commençal META POWER TR OHLINS AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Commençal META POWER TR OHLINS AXS e-bike has 4 sizes, in the range of 160 cm – 203 cm (5.25 ft – 6.66 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Commençal META POWER TR OHLINS AXS includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
