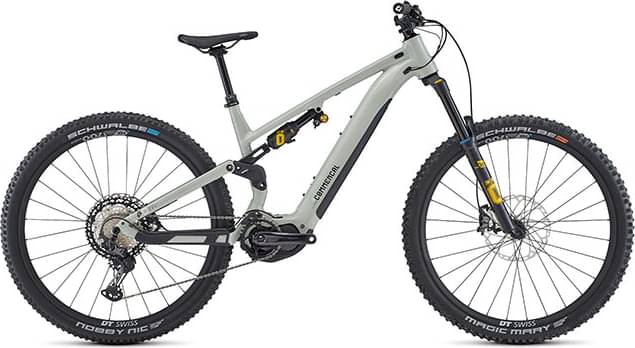

Commençal META POWER TR OHLINS EDITION 2022
2022 E-bike
Estimate price |
9,061$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Öhlins RXF36
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-E8036, 630Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2022 META POWER TR, 140 mm, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Suspension Fork
OHLINS RXF36 m.2 Air, 150 mm travel, 29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset
Rear Shock
OHLINS TTX2 Air, 210 x 55 mm, LSC, HSC, rebound
Drivetrain
Rear Derailleur
SHIMANO XT, 12s
Shift Levers
SHIMANO XT, 12s
Cassette
SHIMANO XT, 12s, 10-51t
Crank
SHIMANO FC-M8150, 160 mm crank arms
Bottom Bracket
SHIMANO
Chain
SHIMANO XT, 12s
Chain Guide
RIDE ALPHA EP8, 32-34t
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, e-bike specific - Front: 28h, sealed bearings
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, e-bike specific - Front: 28h, sealed bearings
Rims
Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 Spline, Rear: 29'', 28h, welded, 30 mm inner width - Front: 29'', 28h, welded, 30 mm inner width
Tires
Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary, Rear: 29"x2.4", Super Trail, Addix SpeedGrip, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless Easy
Brakes
Brakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Disk Rotors
SHIMANO SM-RT66 220 mm, 6-bolt, bolt-on magnet
Cockpit
Stem
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL, Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS66, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Terra Aidon X3, Kium Mobius rails
Seatpost
KS Lev Integra, 31.6 mm, travel: 125 mm on S, 175 mm on M/L, 200 mm on XL, SouthPaw alloy remote
Motor & Battery
Motor
SHIMANO DU-EP800, Max. torque: 85N.m, 250W
Battery
SHIMANO BT-E8036, 630Wh
Remote
SHIMANO SC-EM800, LCD colored display featuring: Clock, Assist mode display, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Estimated range, Range overview, Cadence, Human output power (as scale indicator), Calorie setting, Maintenance alert, Bluetooth LE connection (for E-Tube Project communication)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.33 mm | 1.34 mm | 1.27 mm | 1.28 mm | 1.2 mm | 1.22 mm |
| Bottom Bracket Height | 353 mm | 349 mm | 353 mm | 349 mm | 353 mm | 349 mm | 353 mm | 349 mm |
| Front Center | 778 mm | 778 mm | 800 mm | 800 mm | 827 mm | 827 mm | 852 mm | 852 mm |
| Rake | 54 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 119 mm | 123 mm | 120 mm | 123 mm | 120 mm | 123 mm | 120 mm | 123 mm |
| Stack | 601 mm | 604 mm | 606 mm | 609 mm | 610 mm | 613 mm | 610 mm | 613 mm |
| Reach | 437 mm | 433 mm | 457 mm | 453 mm | 482 mm | 478 mm | 507 mm | 503 mm |
| Top Tube Length | 576 mm | 577 mm | 597 mm | 598 mm | 623 mm | 624 mm | 648 mm | 649 mm |
| Seat Tube Angle | 77.5 ° | 77.1 ° | 77.5 ° | 77.1 ° | 77.5 ° | 77.1 ° | 77.5 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 420 mm | 440 mm | 440 mm | 460 mm | 460 mm |
| Head Tube Angle | 64.5 ° | 64.1 ° | 64.5 ° | 64.1 ° | 64.5 ° | 64.1 ° | 64.5 ° | 64.1 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 125 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 450 mm | 451 mm | 450 mm | 451 mm | 450 mm | 451 mm | 450 mm | 451 mm |
| Wheelbase | 1227 mm | 1228 mm | 1249 mm | 1250 mm | 1276 mm | 1277 mm | 1301 mm | 1302 mm |
| Bottom Bracket Drop | 21 mm | 25 mm | 21 mm | 25 mm | 21 mm | 25 mm | 21 mm | 25 mm |
| Standover Height | 754 mm | 754 mm | 756 mm | 756 mm | 759 mm | 759 mm | 762 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
META POWER TR OHLINS EDITION is a Commencal E Meta Power model. Commençal launched 89 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Commençal META POWER 29 TEAM 2022 has a starting price of 5700$. Commençal META POWER SX SHIMANO SIGNATURE 2022 on the other hand is the most expensive at 9344$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8388$. In conclusion, this e-bike price is 149.27% higher than the price of the average Trail e-bike.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.8 kg (54.67 lbs), the META POWER TR OHLINS EDITION model is slightly heavier than average. In short, the average Trail e-bike weight is 4.64% lower than this one.
META POWER TR OHLINS EDITION components
Fork
The fork installed on this bike is the Öhlins RXF36 model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The META POWER TR OHLINS EDITION has a rear shock with a travel of 140mm. The model OHLINS TTX2 Air is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the META POWER TR OHLINS EDITION e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The META POWER TR OHLINS EDITION has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
The Commençal model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
