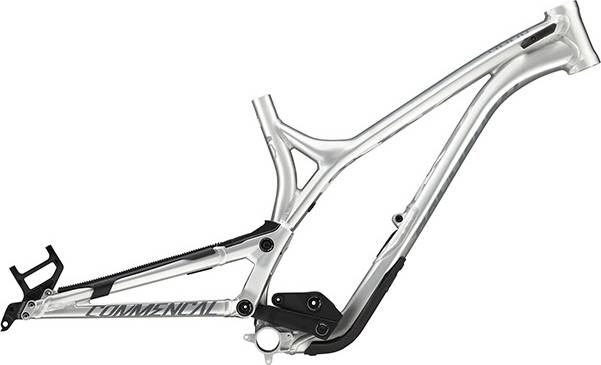

Commençal SUPREME DH 29 Frame 2019
2019 Mountain
Estimate price |
1,699$
Weight | 4.3 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEC + ULTRA XTRM (Aluminium 6066 Triple Butted)
Drivetrain
Bottom Bracket
Press fit BB107 (compatible with BB92)
Brakes
Brakes
Postmount 200 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.357 mm | 1.289 mm |
| Bottom Bracket Height | 359 mm | 359 mm | 359 mm |
| Front Center | 819 mm | 844 mm | 868 mm |
| Rake | 57 mm | 57 mm | 56 mm |
| Trail | 123 mm | 123 mm | 124 mm |
| Stack | 638 mm | 638 mm | 638 mm |
| Reach | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 619 mm | 644 mm | 669 mm |
| Seat Tube Angle | 63 ° | 63 ° | 63 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 118 mm | 118 mm | 118 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1258 mm | 1283 mm | 1307 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 703 mm | 703 mm | 703 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
SUPREME DH 29 Frame completes the Commencal Supreme model. There are 120 frames that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Commençal SUPREME DH 29 Frame 2019 is the most affordable frame of this model and has a price of 1699$. On the other hand, Commençal SUPREME DH 29 ANODIZED Frame 2019, is the most expensive and costs 1999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill frames
According to our calculations, the average cost of a Downhill frame that is reliable is 1923$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 1699$. Comparing the average cost of a Downhill frame to this one, you will see that SUPREME DH 29 Frame price is 13.18% lower.
Downhill frames average weight
The average weight for Downhill frames is 4.28 kg (9.44 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 4.3 kg (9.48 lbs), the SUPREME DH 29 Frame model is slightly heavier than average. In other words, this model is 0.47% heavier than the average Downhill frame.
Overview of components
Brakes
When you want to stop the bike in time, the brakes are vital. The SUPREME DH 29 Frame has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
SUPREME DH 29 Frame comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
