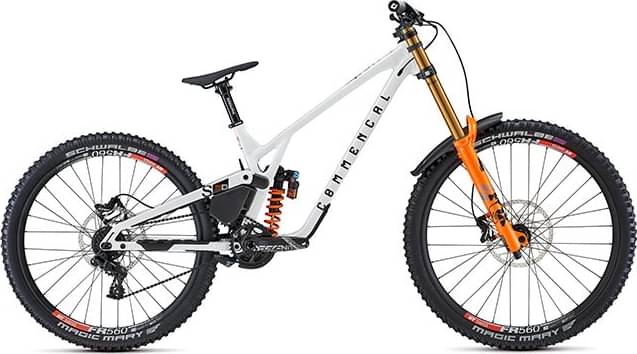

Commençal SUPREME DH V5 SIGNATURE 1 2022
2022 Mountain
Estimate price |
7,400$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 200mm -
Fork Fox Factory Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Supreme DH V5 29/27, 200 mm travel on S / M / L / XL, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Suspension Fork
FOX 40 Factory, 203 mm travel, 29", Fit Grip2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 Tokens
Rear Shock
FOX DHX2 Factory, 250 x 75 mm, HSC, LSC, HSR, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 475 lbs on L, 500 lbs on XL
Drivetrain
Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM GX DH, 7 sp
Cassette
SRAM GX DH, 7 sp, 11-25t
Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Bottom Bracket
SRAM DUB, Pressfit
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 32-34t
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rims
DT SWISS FR560, REAR: 27.5'', 32h, 30 mm inner width on S / M / L / XL - FRONT: 29'', 32h, 30 mm inner width on S/M/L/XL
Tires
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary, REAR: 27.5'' x 2.4'', Super DH, Addix Ultra Soft on S / M / L / XL - FRONT: 29" x 2.4", Super DH, Addix Ultra Soft on S / M / L / XL
Brakes
Brakes
TRP DH-R Evo, 4 pistons, resin pads, Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width
Cockpit
Stem
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, MG rails, flexible "wings"
Seatpost
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.42 mm | 1.41 mm | 1.34 mm | 1.33 mm | 1.28 mm | 1.28 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 801 mm | 810 mm | 848 mm | 847 mm | 876 mm | 875 mm | 896 mm | 895 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 134 mm | 120 mm | 110 mm | 108 mm | 110 mm | 108 mm | 110 mm | 108 mm |
| Stack | 649 mm | 653 mm | 649 mm | 653 mm | 649 mm | 653 mm | 649 mm | 653 mm |
| Reach | 434 mm | 439 mm | 458 mm | 464 mm | 486 mm | 492 mm | 506 mm | 512 mm |
| Top Tube Length | 591 mm | 597 mm | 616 mm | 622 mm | 644 mm | 650 | 664 mm | 670 mm |
| Seat Tube Angle | 67 ° | 67.5 ° | 67 ° | 67.5 ° | 67 ° | 67.5 ° | 67 ° | 67.5 ° |
| Seat Tube Length | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Head Tube Angle | 63.2 ° | 63.7 ° | 63.2 ° | 63.7 ° | 63.2 ° | 63.7 ° | 63.2 ° | 63.7 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 446 mm | 444 mm | 446 mm | 444 mm | 446 mm | 444 mm | 446 mm | 444 mm |
| Wheelbase | 1247 mm | 1254 mm | 1294 mm | 1291 mm | 1322 mm | 1319 mm | 1342 mm | 1339 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
SUPREME DH V5 SIGNATURE 1 is a Commencal Supreme model. There are 120 bikes that carry this model name. You can easily view all of the Commencal Supreme bikes models from 2022, here.
Model range prices
Commençal SUPREME DH 29 TEAM 2022 is the cheapest bike model and costs 4194$. Commençal SUPREME DH V5 SIGNATURE 1 2022 is the most expensive one and costs 7400$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 7400$. Doing a quick comparison, we notice that SUPREME DH V5 SIGNATURE 1 price is 118.22% more expensive than the average cost of a Downhill bike.
SUPREME DH V5 SIGNATURE 1 components
Fork
The SUPREME DH V5 SIGNATURE 1 comes factory-installed with the Fox Factory Float 40 fork. This has a travel range of 203mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX DHX2 Factory model, with a travel of 200mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Commençal SUPREME DH V5 SIGNATURE 1 2022, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Commençal SUPREME DH V5 SIGNATURE 1 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
