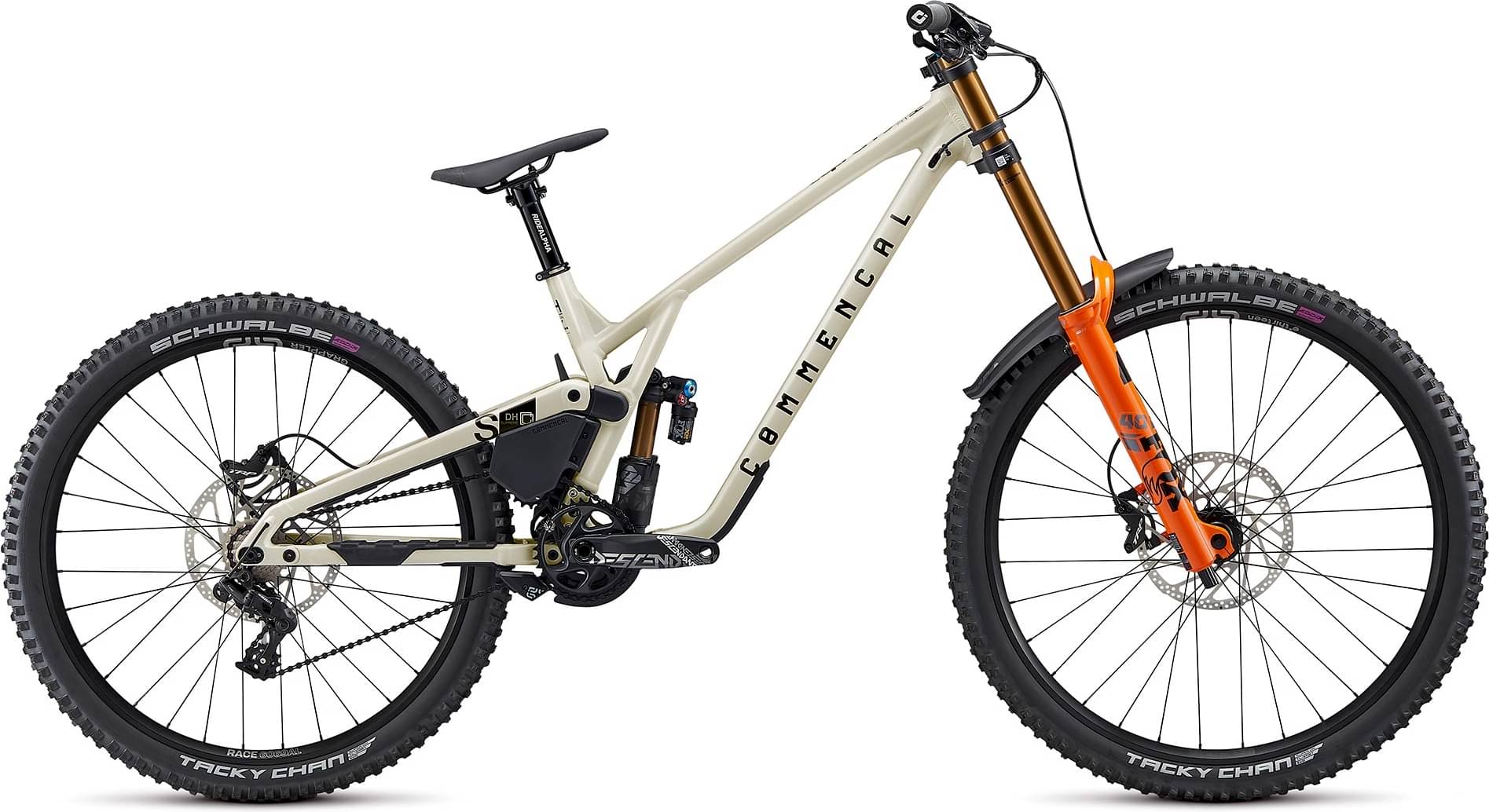

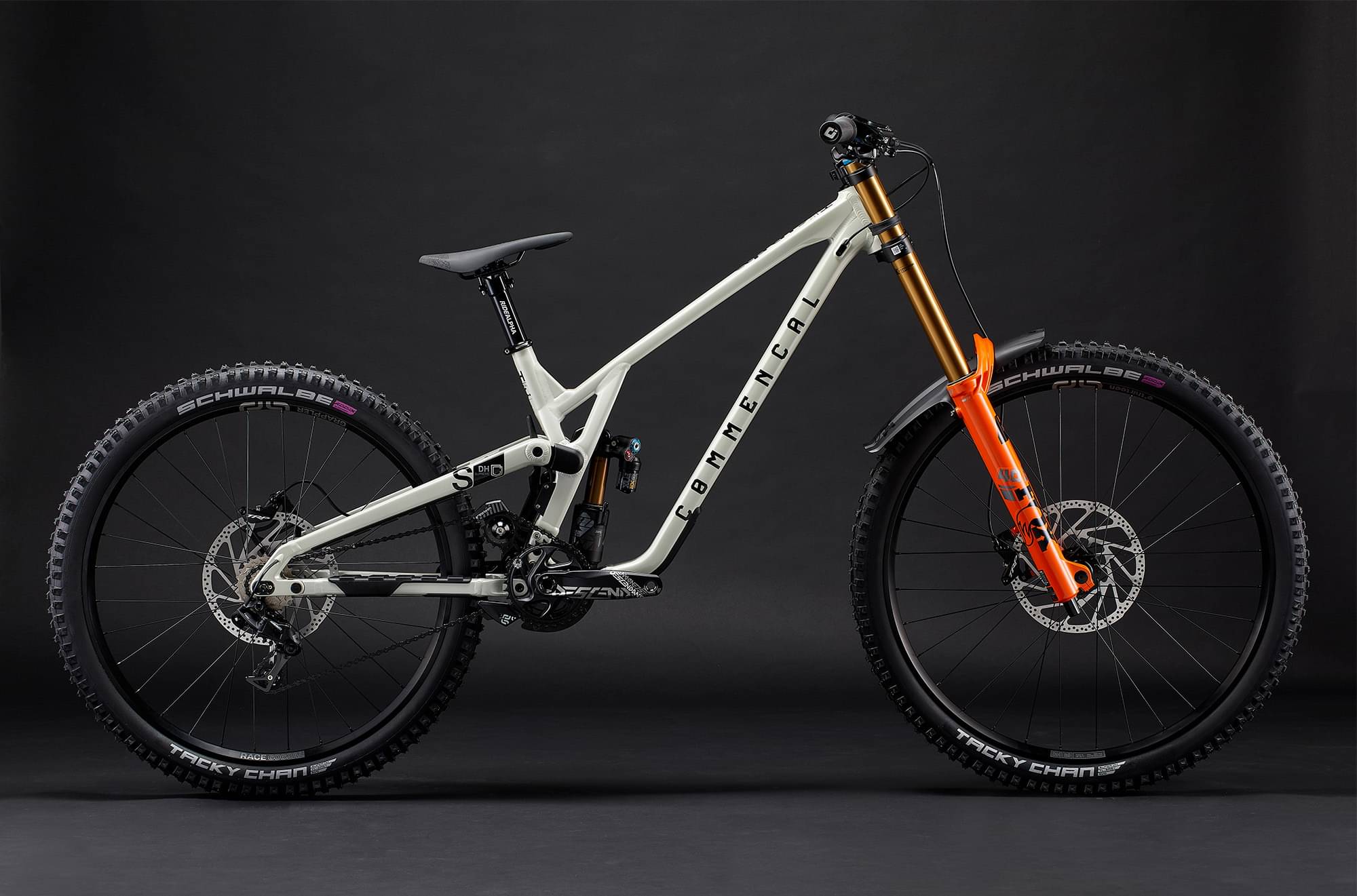

Commençal SUPREME DH V5 SIGNATURE 2023
2023 Mountain
Estimate price |
7,400$
Weight | 18.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 220mm -
Fork Fox Factory Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Supreme DH V5 29/27, 220 mm travel on S / M / L / XL, 29'', Alloy 6066, triple butted tubes, T4, T6

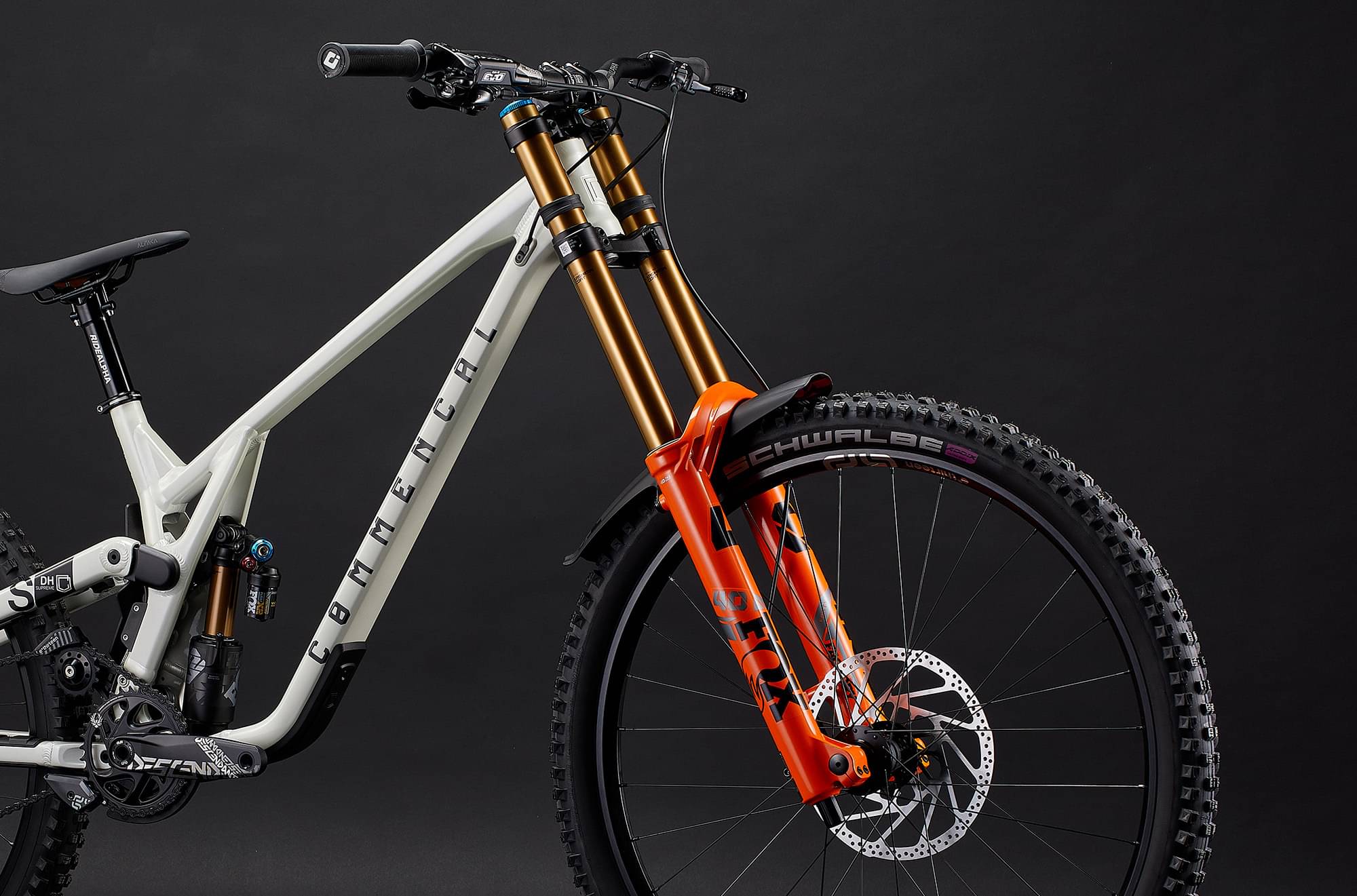

Suspension Fork
FOX 40 Factory, 203 mm travel, 29", Fit Grip2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 Tokens. More information here

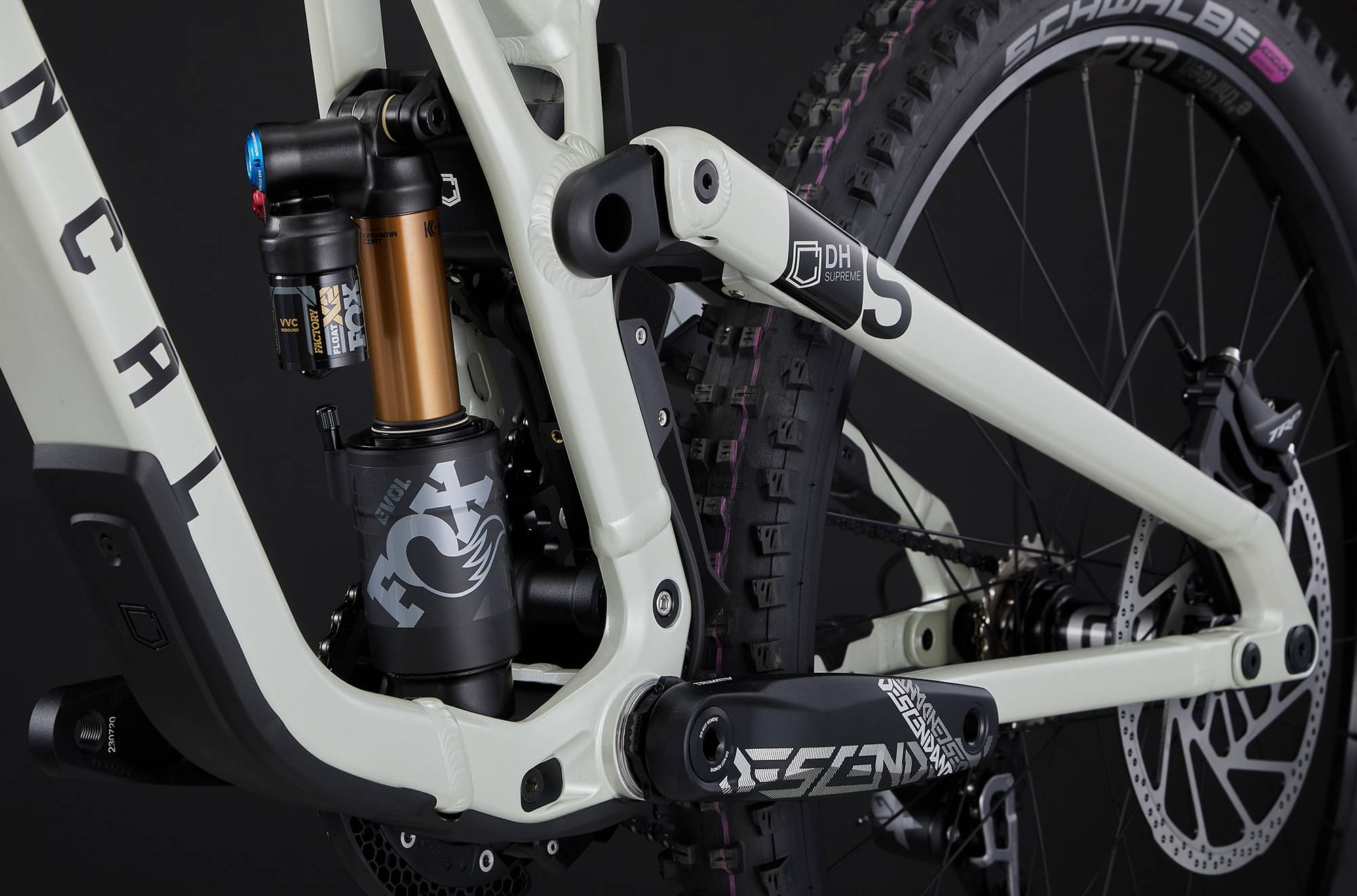

Rear Shock
FOX FLOAT X2 Factory, 250 x 75 mm, HSC, LSC, HSR, LSR, rebound. More information here

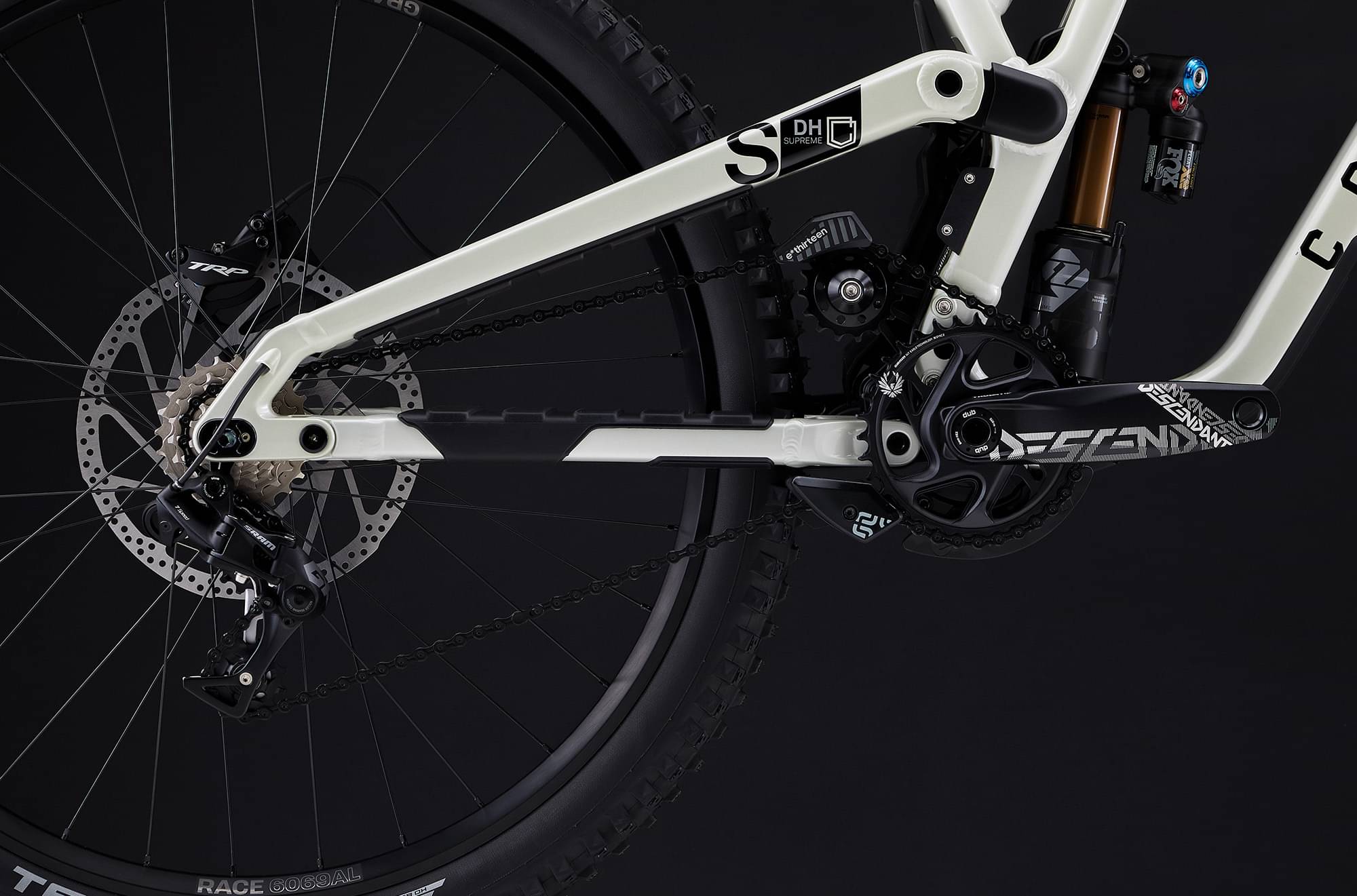

Drivetrain
Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM GX DH, 7 sp
Cassette
E13 Grappler Race Alloy, 7 sp, 9-24t
Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Bottom Bracket
SRAM DUB, Pressfit
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 32-34t
Wheels
Front Hub
Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy, Rear: 32h, sealed bearings, 12x157mm, black - Front: 32h, sealed bearings, 20x110mm Boost, black
Rear Hub
Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy, Rear: 32h, sealed bearings, 12x157mm, black - Front: 32h, sealed bearings, 20x110mm Boost, black
Rims
E13 GRAPPLER Race Alloy, REAR: 27.5'', 32h, 30mm inner width on S / M / L / XL - FRONT: 29'', 32h, 30mm inner width on S / M / L / XL
Tires
Rear: SCHWALBE TACKY CHAN - Front: SCHWALBE TACKY CHAN, REAR: 27.5''x2.4'', Super DH, Addix Ultra Soft on S / M / L / XL, Tubeless Easy - FRONT: 29"x2.4", Super DH, Addix Ultra Soft on S / M / L / XL, Tubeless Easy

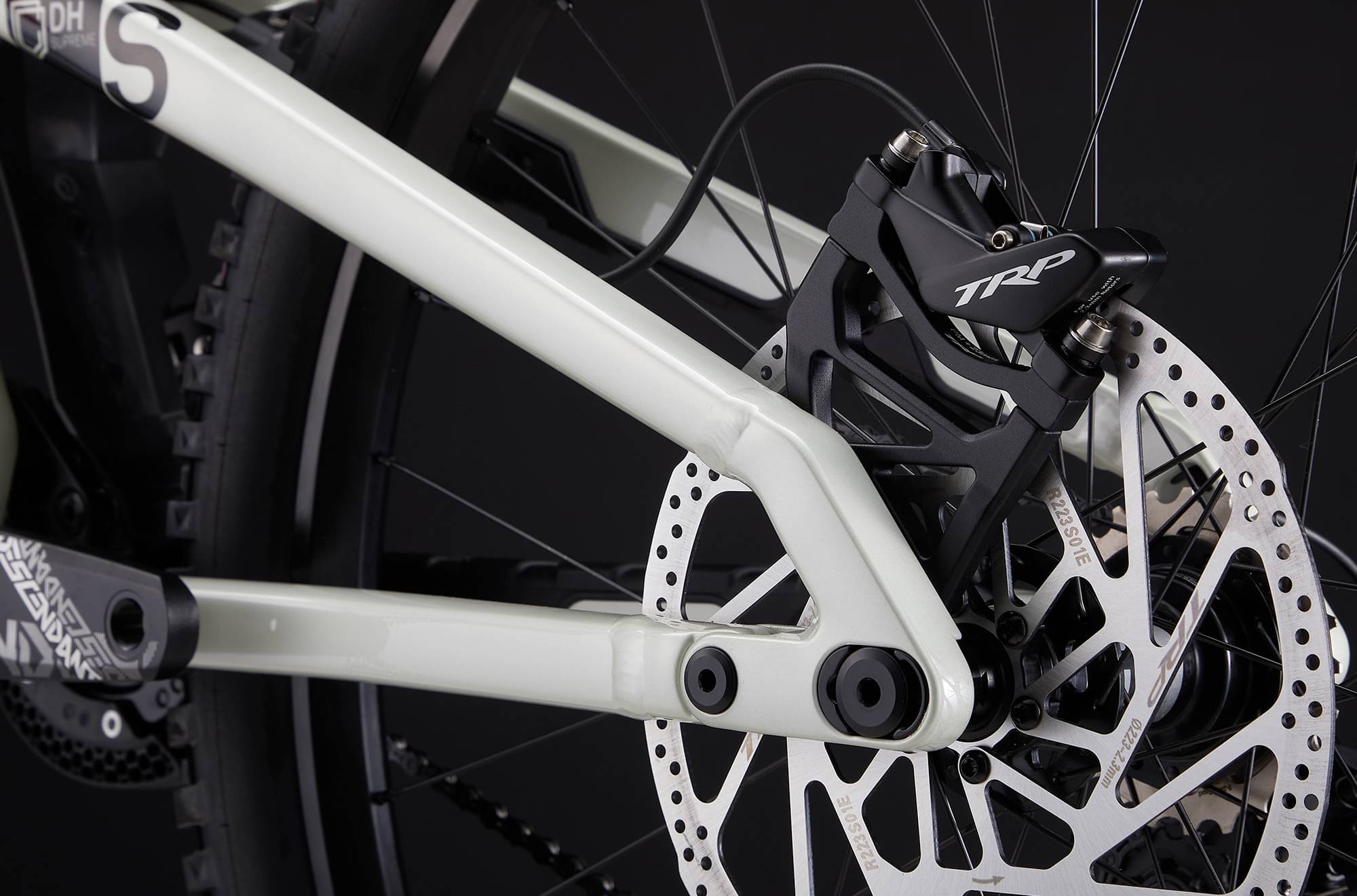

Brakes
Brakes
TRP DH-R Evo, 4 pistons, resin pads, Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width

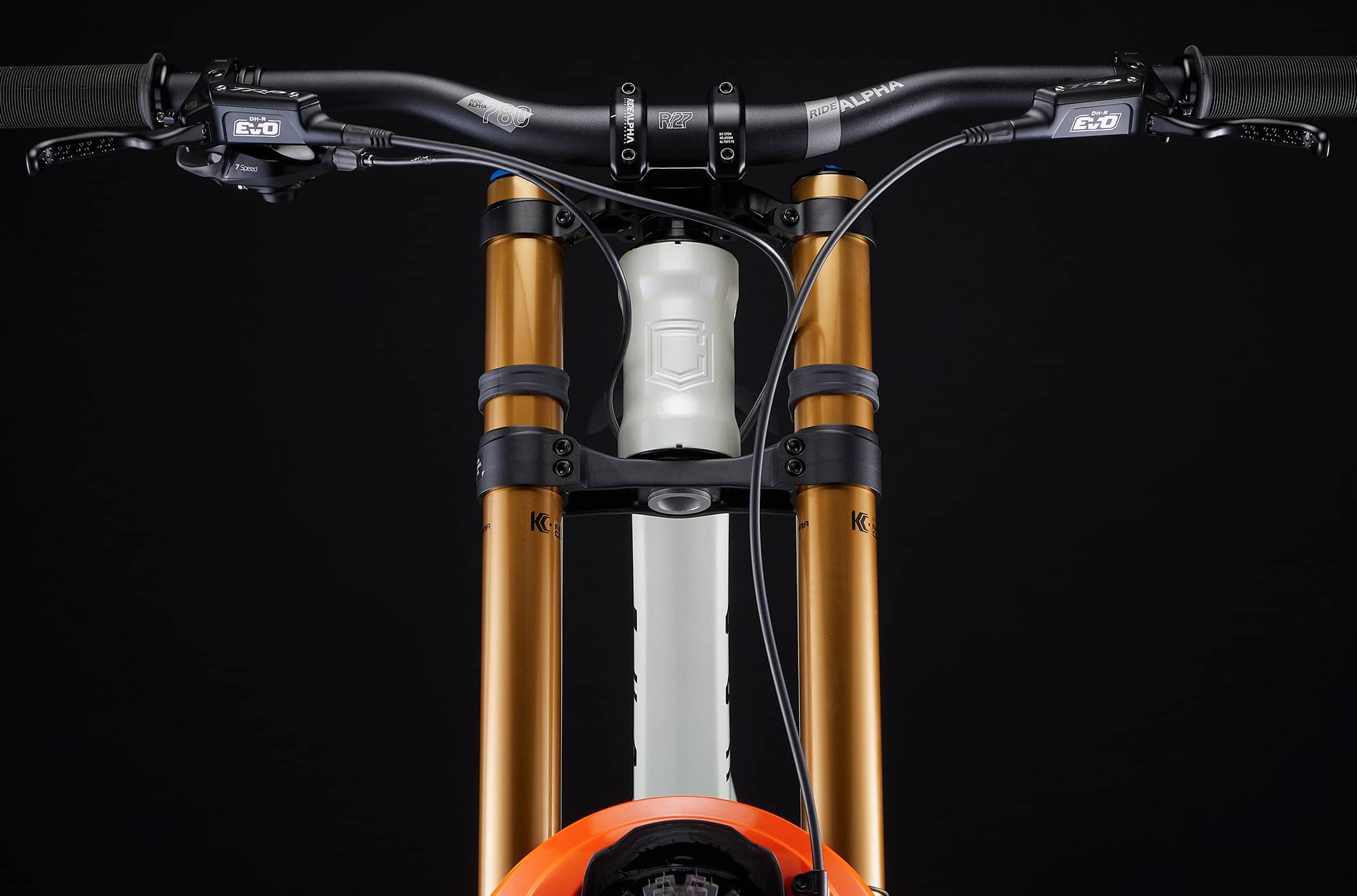

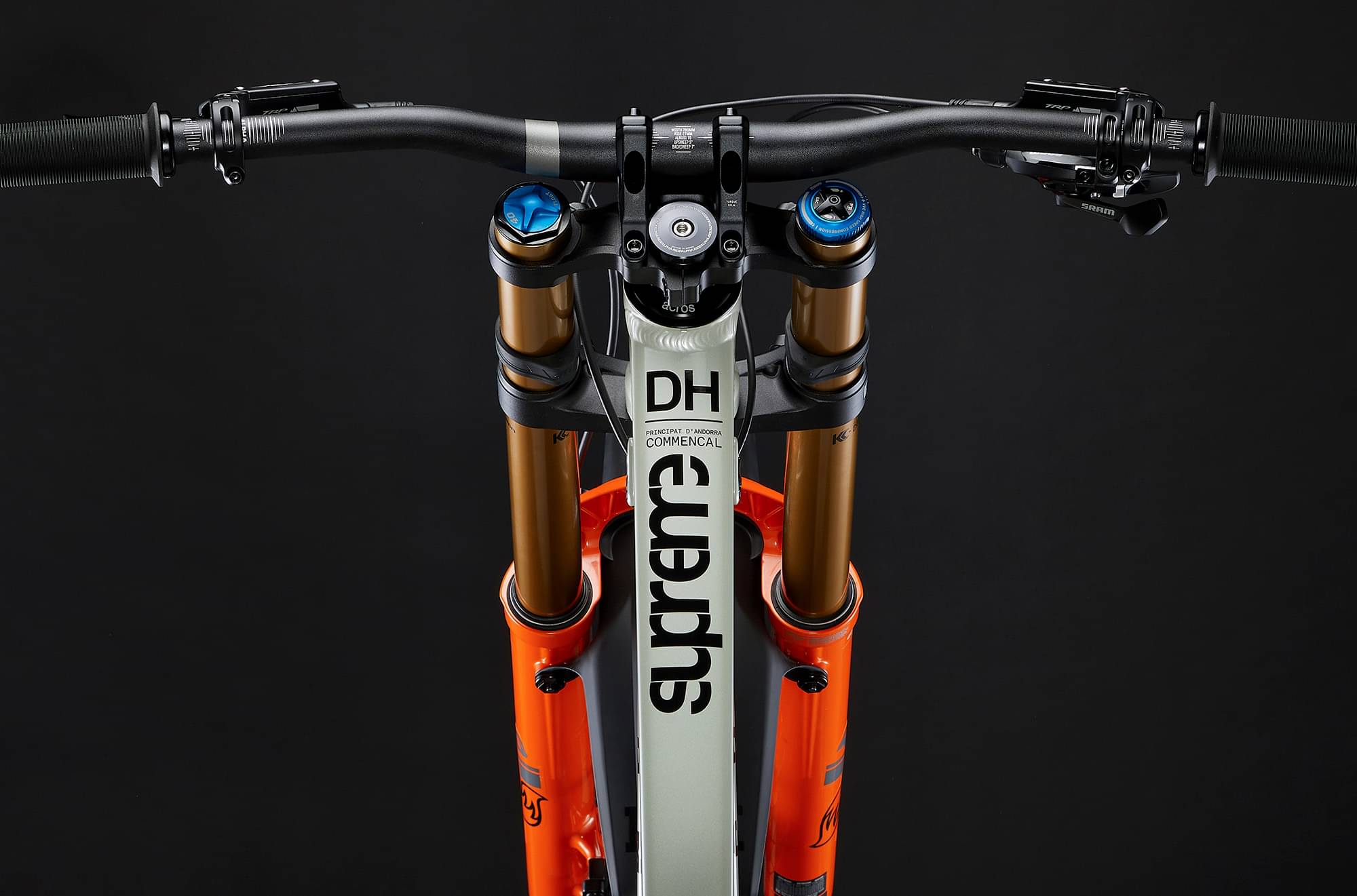

Cockpit
Stem
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Longneck, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, MG rails, flexible "wings"
Seatpost
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.4 mm | 1.42 mm | 1.32 mm | 1.34 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 352 mm | 353 mm | 352 mm | 353 mm | 352 mm | 353 mm | 352 mm | 353 mm |
| Front Center | 804 mm | 804 mm | 829 mm | 829 mm | 857 mm | 857 mm | 877 mm | 877 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 124 mm | 131 mm | 124 mm | 131 mm | 124 mm | 131 mm | 124 mm | 131 mm |
| Stack | 650 | 653 mm | 650 | 653 mm | 650 | 653 mm | 650 | 653 mm |
| Reach | 439 mm | 435 mm | 464 mm | 460 mm | 492 mm | 488 mm | 512 mm | 508 mm |
| Top Tube Length | 598 mm | 600 mm | 623 mm | 625 mm | 651 mm | 653 mm | 671 mm | 673 mm |
| Seat Tube Angle | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° |
| Seat Tube Length | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Head Tube Angle | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 444 mm | 446 mm | 456 mm | 458 mm | 456 mm | 458 mm | 456 mm | 458 mm |
| Wheelbase | 1248 mm | 1250 mm | 1285 mm | 1287 mm | 1313 mm | 1315 mm | 1333 mm | 1335 mm |
| Bottom Bracket Drop | 3 mm | 2 mm | 3 mm | 2 mm | 3 mm | 2 mm | 3 mm | 2 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
SUPREME DH V5 SIGNATURE belongs to the Commencal Supreme model. 120 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Commençal SUPREME DH TEAM 2023 is the most economical model, with a starting price of 3600$. Commençal SUPREME DH V5 SIGNATURE 2023 on the other hand costs 7400$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 7400$. If we compare this with the average Downhill bike cost we notice that the price is 118.22% higher.
Average weight for Downhill bikes
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, SUPREME DH V5 SIGNATURE has a weight of 18.3 kg (40.34 lbs). In conclusion, the average Downhill bike weighs 15.17% less than SUPREME DH V5 SIGNATURE.
SUPREME DH V5 SIGNATURE components
Fork
The Fox Factory Float 40 is included from the factory. It has a travel distance of 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX FLOAT X2 Factory model, with a travel of 220mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the SUPREME DH V5 SIGNATURE bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
