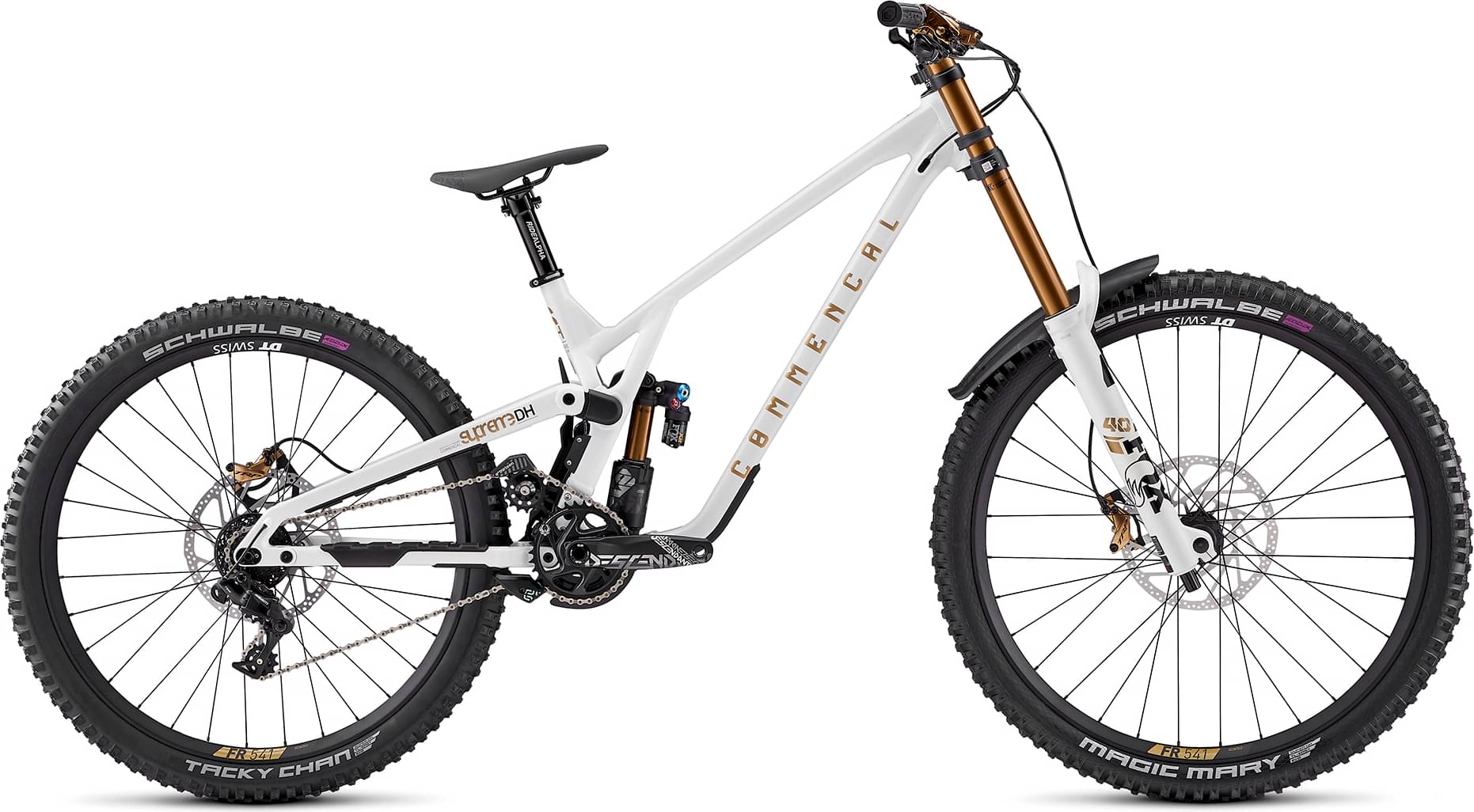

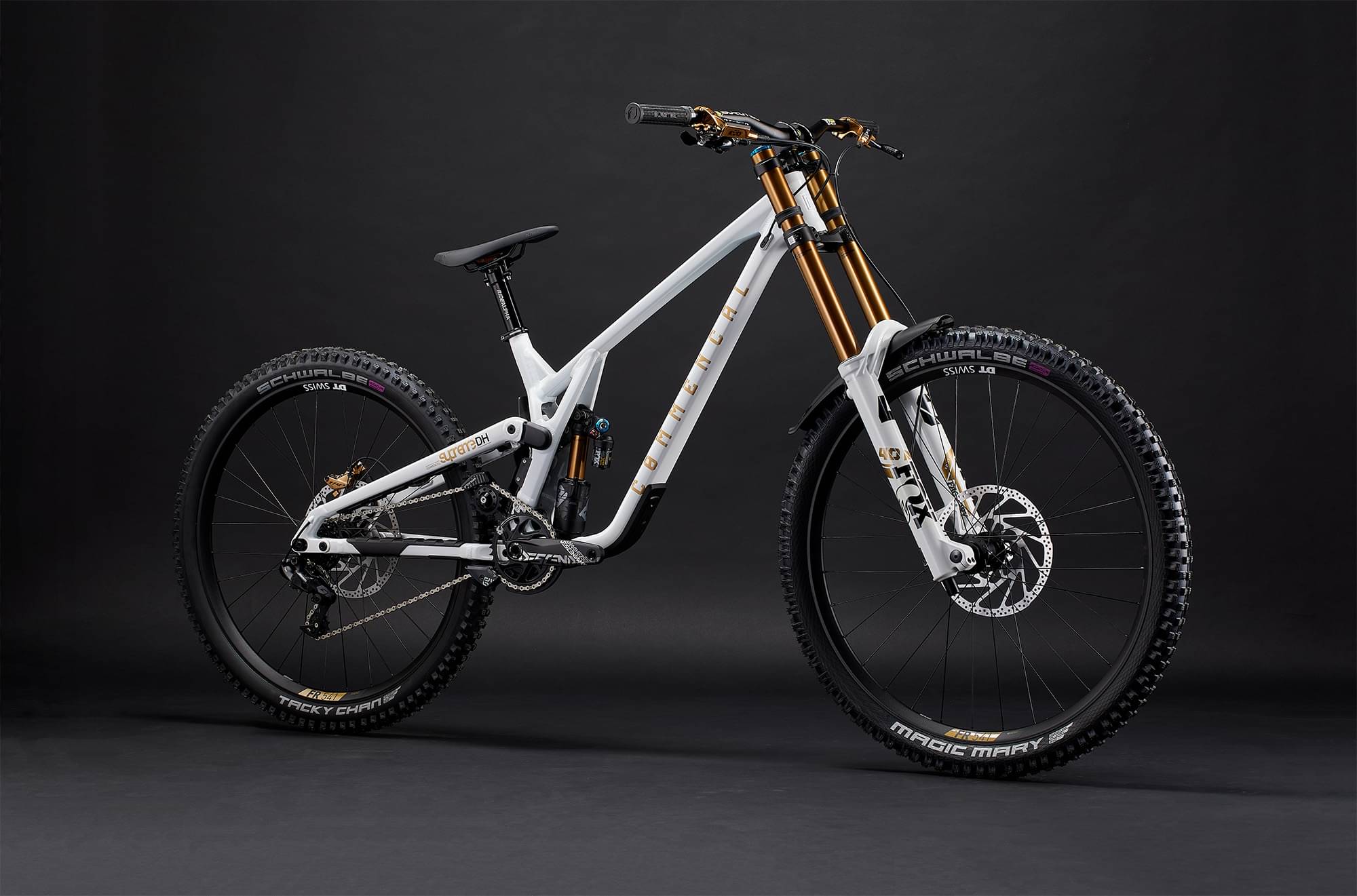

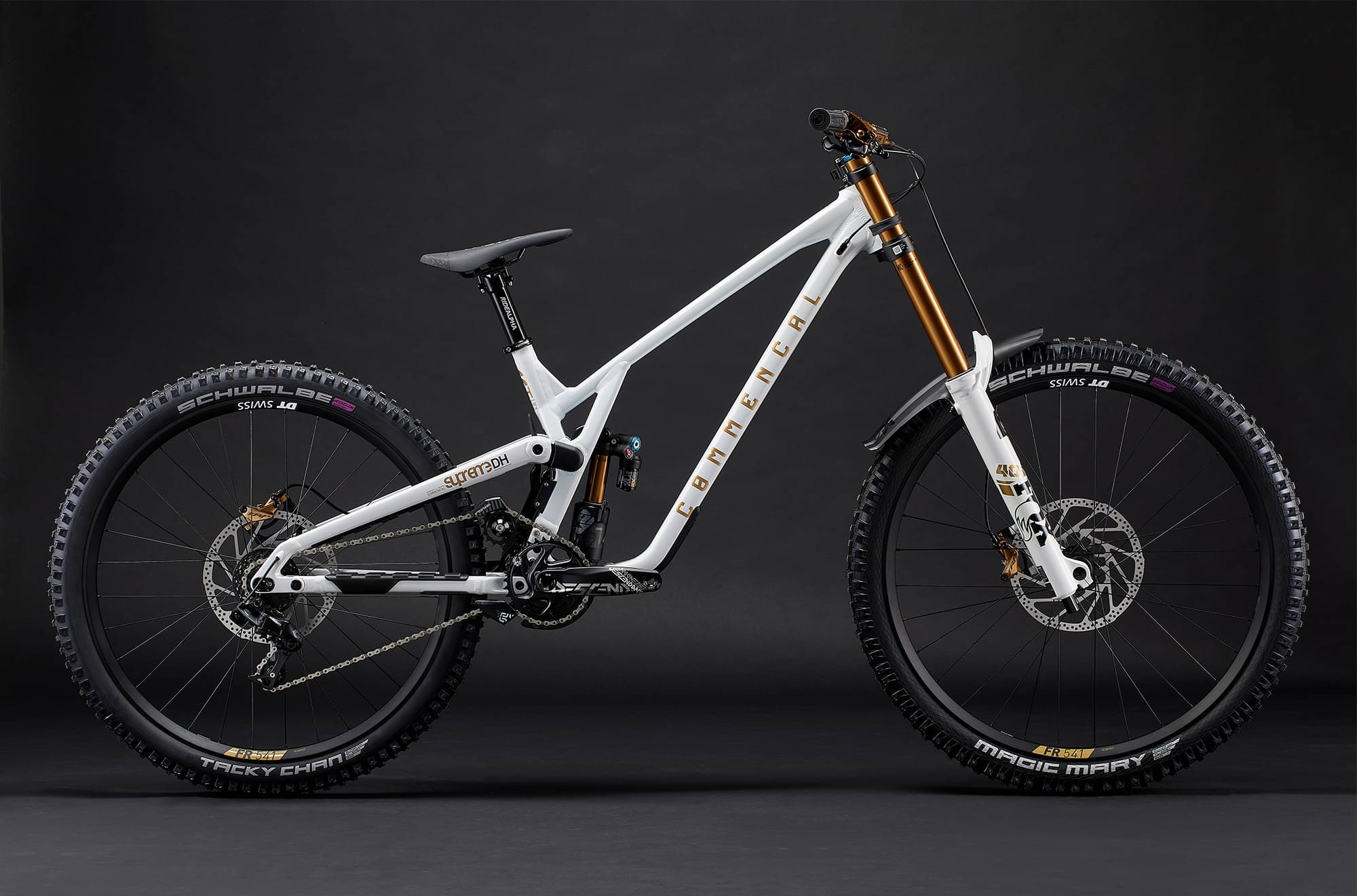

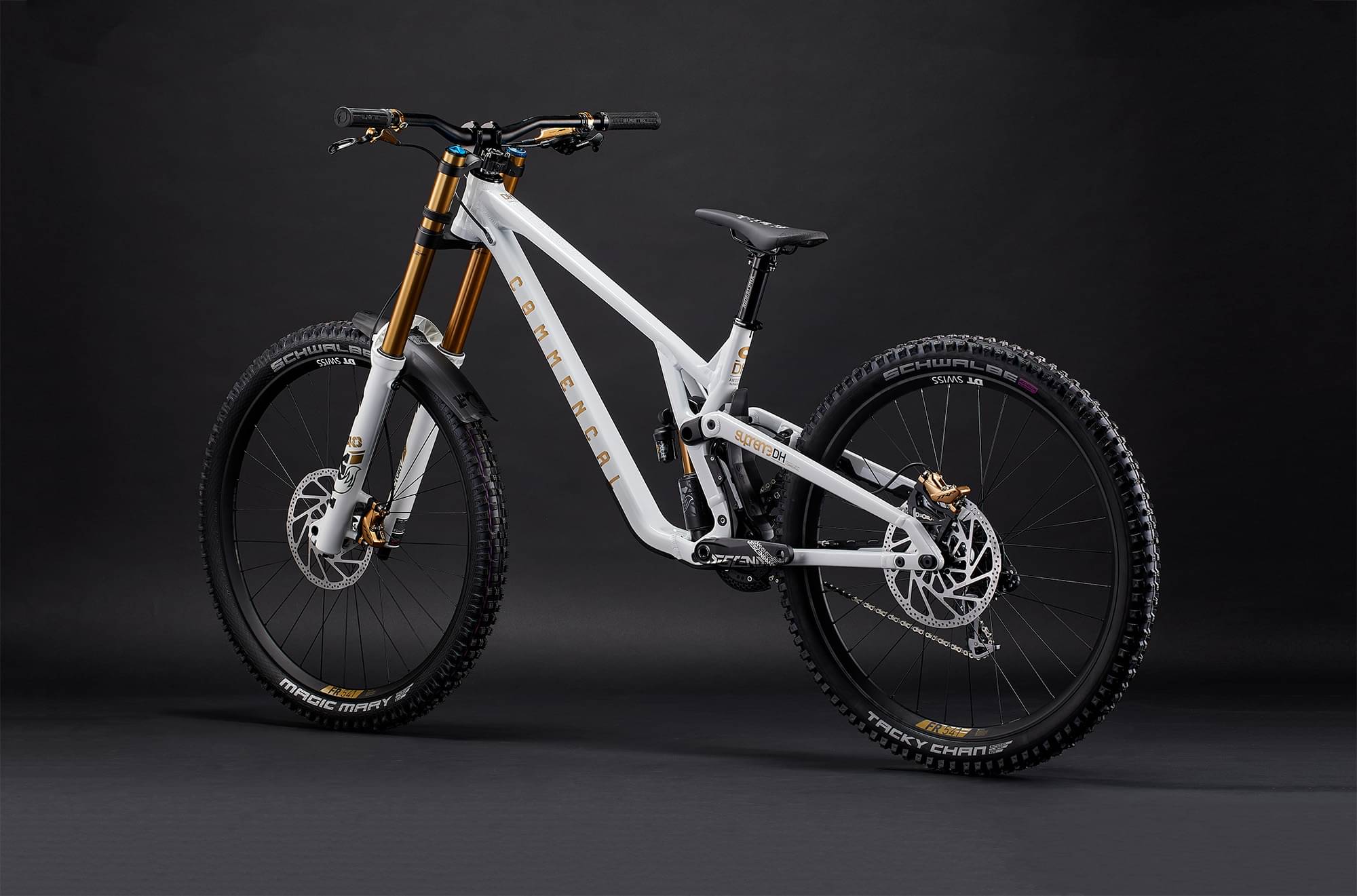

Commençal SUPREME DH V5 SIGNATURE LTD 2023
2023 Mountain
Estimate price |
8,882$
Weight | 5.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 220mm -
Fork Fox Factory Float 40
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SUPREME DH V5 29/27, 220 mm travel, 27/29'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
Suspension Fork
FOX 40 Factory, 200 mm travel, 29", Grip2 damper, HSC, LSC, HSR, LSR, Boost (20 x 110 mm), 52 mm offset, 2 spacers
Rear Shock
FOX Float X2 Factory, 250 x 75 mm, HSC, LSC, HSR, LSR, 0.3 spacer x3

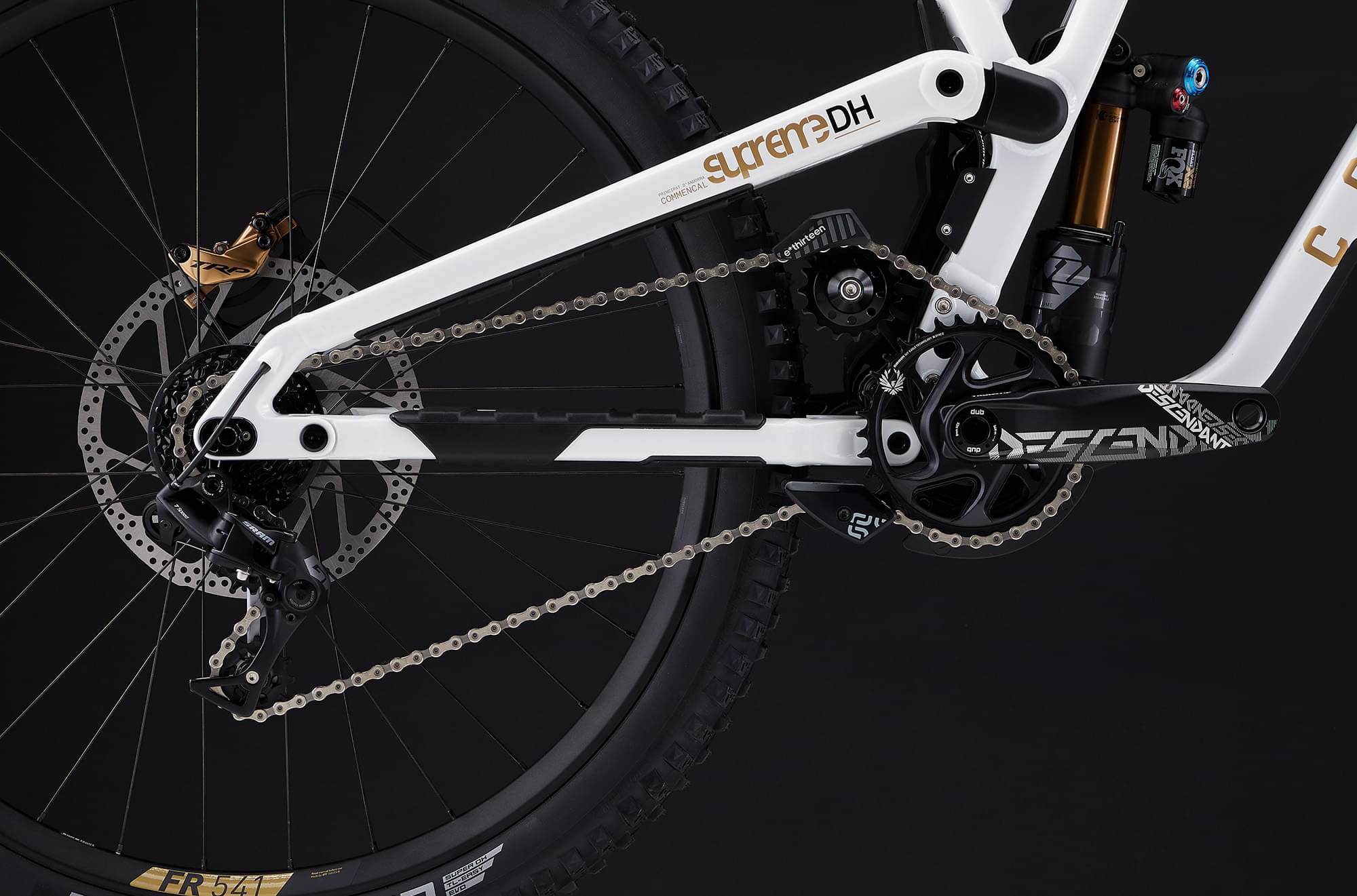

Drivetrain
Rear Derailleur
SRAM GX Eagle, 7s
Shift Levers
SRAM GX DH, 7s
Cassette
SRAM PG-720 DH, 7s, 11-25t
Crank
SRAM Descendant DH, 165 mm crank arms, DUB, Chainring: SRAM Descendant DH, 34t
Bottom Bracket
Press Fit BB 107
Chain
SRAM PC 1130, 11s
Chain Guide
E13 LG1 + Bottom Guide, 32-34t
Wheels
Front Hub
DT SWISS DT 350, Rear: 32h, sealed bearings, 12 x 157 mm, 36t, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost
Rear Hub
DT SWISS DT 350, Rear: 32h, sealed bearings, 12 x 157 mm, 36t, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost
Rims
DT SWISS FR 541, Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width
Tires
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary, Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless Easy

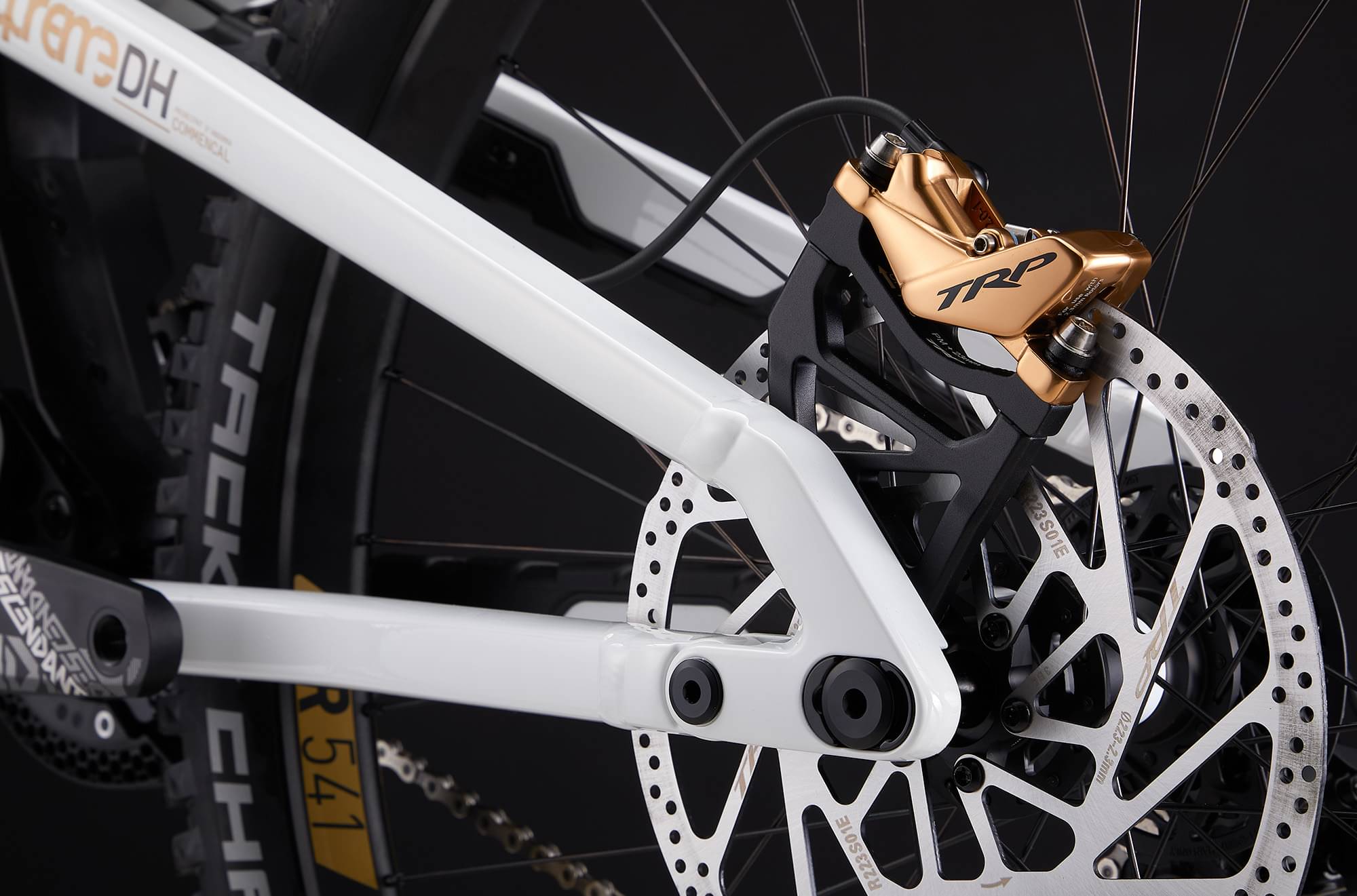

Brakes
Brakes
TRP DH-R EVO, 4 pistons, resin pads, Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm width

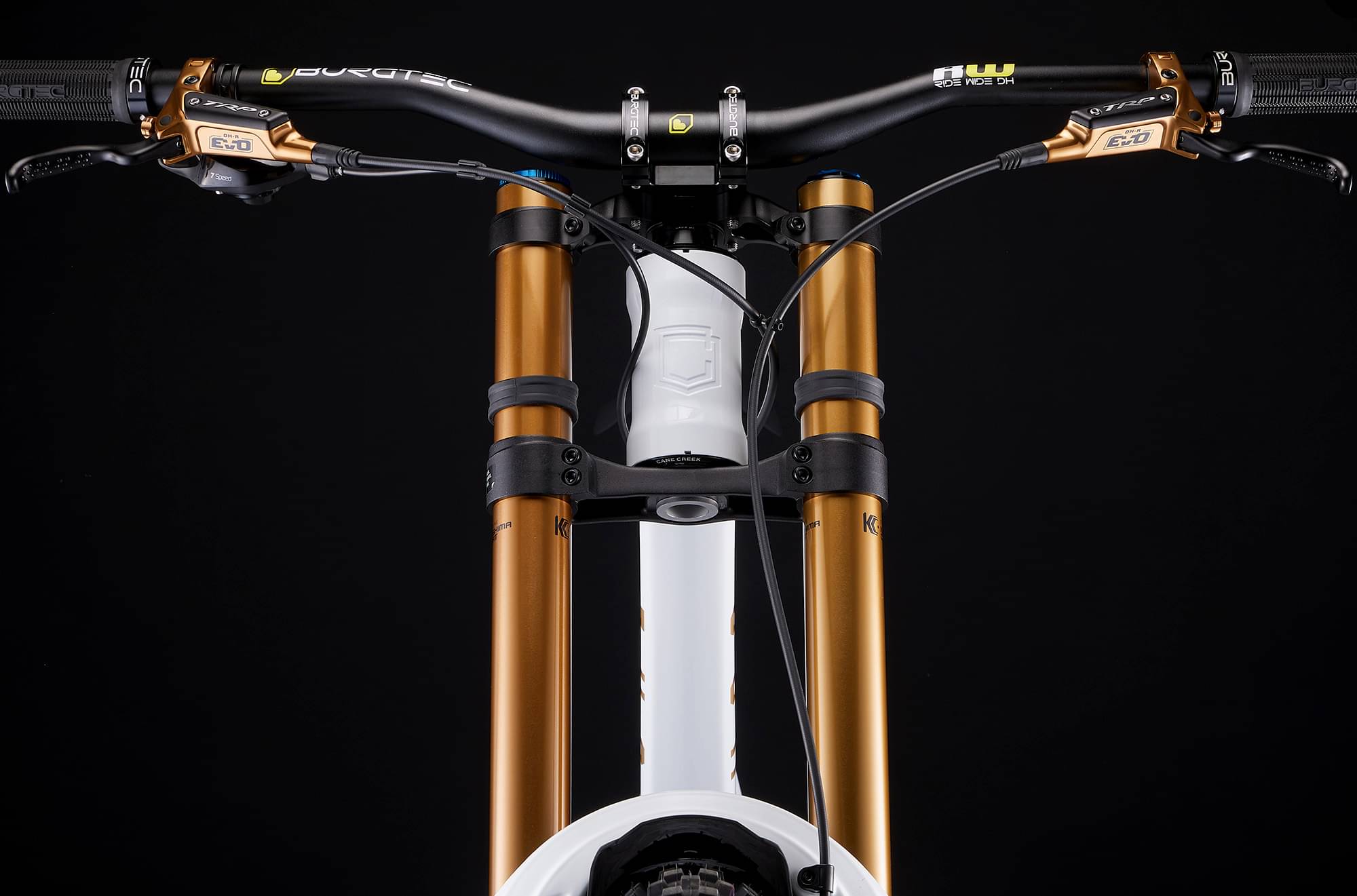

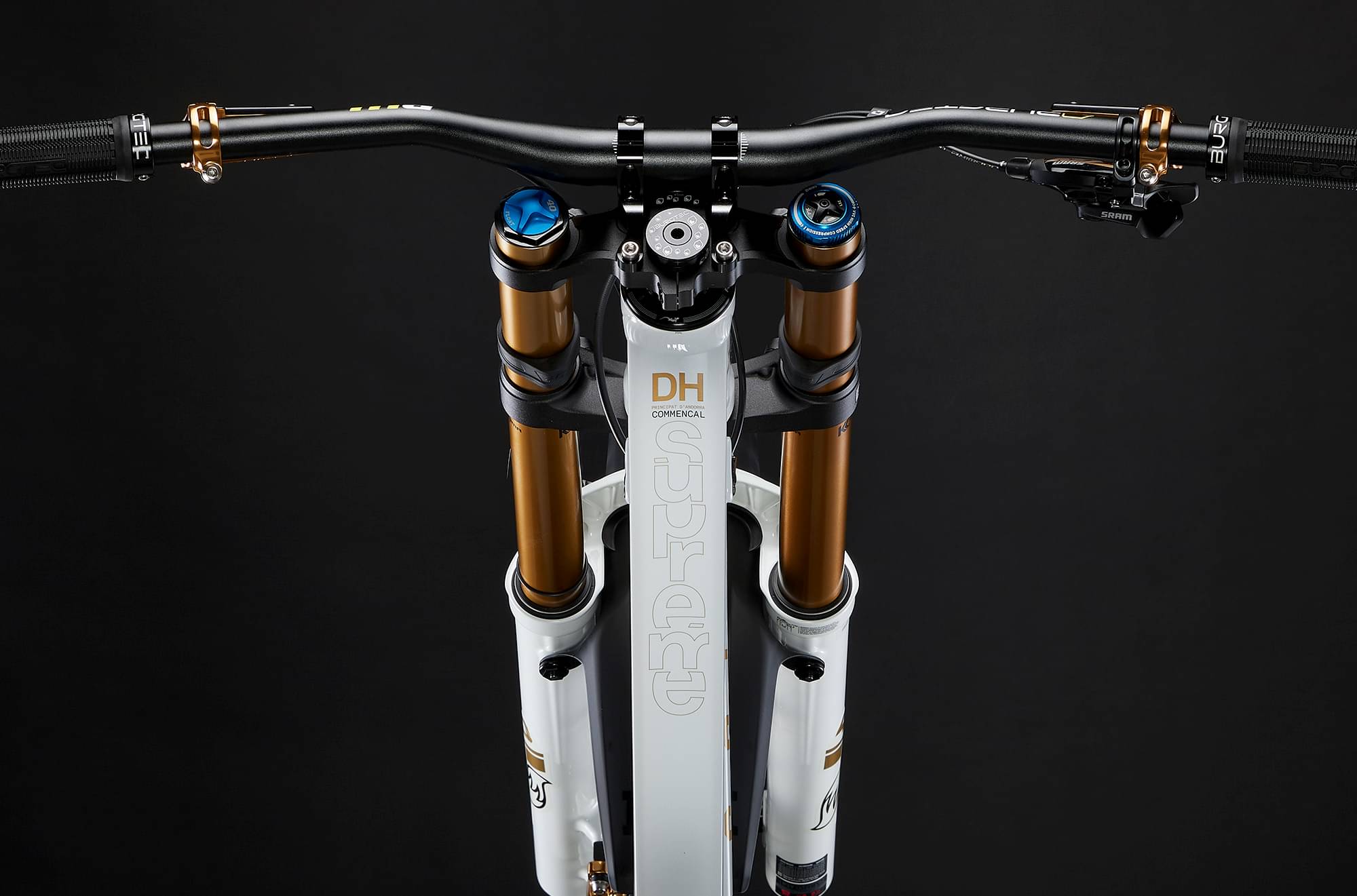

Cockpit
Stem
BURGTEC MK3, 45 mm extension, direct mount, 31.8 mm
Handlebar
BURGTEC Ride Wide Alloy, 31.8 mm, 800 mm width, 30 mm rise on S / M / L / XL
Grips
BURGTEC Bartender Pro Greg Minnaar Signature, Single clamp, black
Headset
CANECREEK ZS56/ZS56 SERIE 40, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails
Seatpost
Ride Alpha, 31.6 mm, 250 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.4 mm | 1.42 mm | 1.32 mm | 1.34 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 352 mm | 353 mm | 352 mm | 353 mm | 352 mm | 353 mm | 352 mm | 353 mm |
| Front Center | 804 mm | 804 mm | 829 mm | 829 mm | 857 mm | 857 mm | 877 mm | 877 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 124 mm | 131 mm | 124 mm | 131 mm | 124 mm | 131 mm | 124 mm | 131 mm |
| Stack | 650 | 653 mm | 650 | 653 mm | 650 | 653 mm | 650 | 653 mm |
| Reach | 439 mm | 435 mm | 464 mm | 460 mm | 492 mm | 488 mm | 512 mm | 508 mm |
| Top Tube Length | 598 mm | 600 mm | 623 mm | 625 mm | 651 mm | 653 mm | 671 mm | 673 mm |
| Seat Tube Angle | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° |
| Seat Tube Length | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Head Tube Angle | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 444 mm | 446 mm | 456 mm | 458 mm | 456 mm | 458 mm | 456 mm | 458 mm |
| Wheelbase | 1248 mm | 1250 mm | 1285 mm | 1287 mm | 1313 mm | 1315 mm | 1333 mm | 1335 mm |
| Bottom Bracket Drop | 3 mm | 2 mm | 3 mm | 2 mm | 3 mm | 2 mm | 3 mm | 2 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
SUPREME DH V5 SIGNATURE LTD is a Commencal Supreme model. 123 bikes variations carry this model name so far. Take a sneak peek at all Commencal Supreme bikes models from 2023, by clicking here.
Model range prices
Commençal SUPREME DH 27 2023 is the cheapest bike model and costs 3600$. Commençal SUPREME DH V5 SIGNATURE 70’S 2023 is the most expensive one and costs 8418$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8085$. Comparing the average cost of a Downhill bike to this one, you will see that SUPREME DH V5 SIGNATURE LTD price is 138.43% higher.
Average weight for Downhill bikes
If we make a quick analysis of the average weight of a Downhill bike, we get 15.89 kg (35.03 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 5.3 kg (11.68 lbs), the SUPREME DH V5 SIGNATURE LTD model is much lighter than average. In short, the average Downhill bike weight is 199.81% higher than this one.
Overview of components

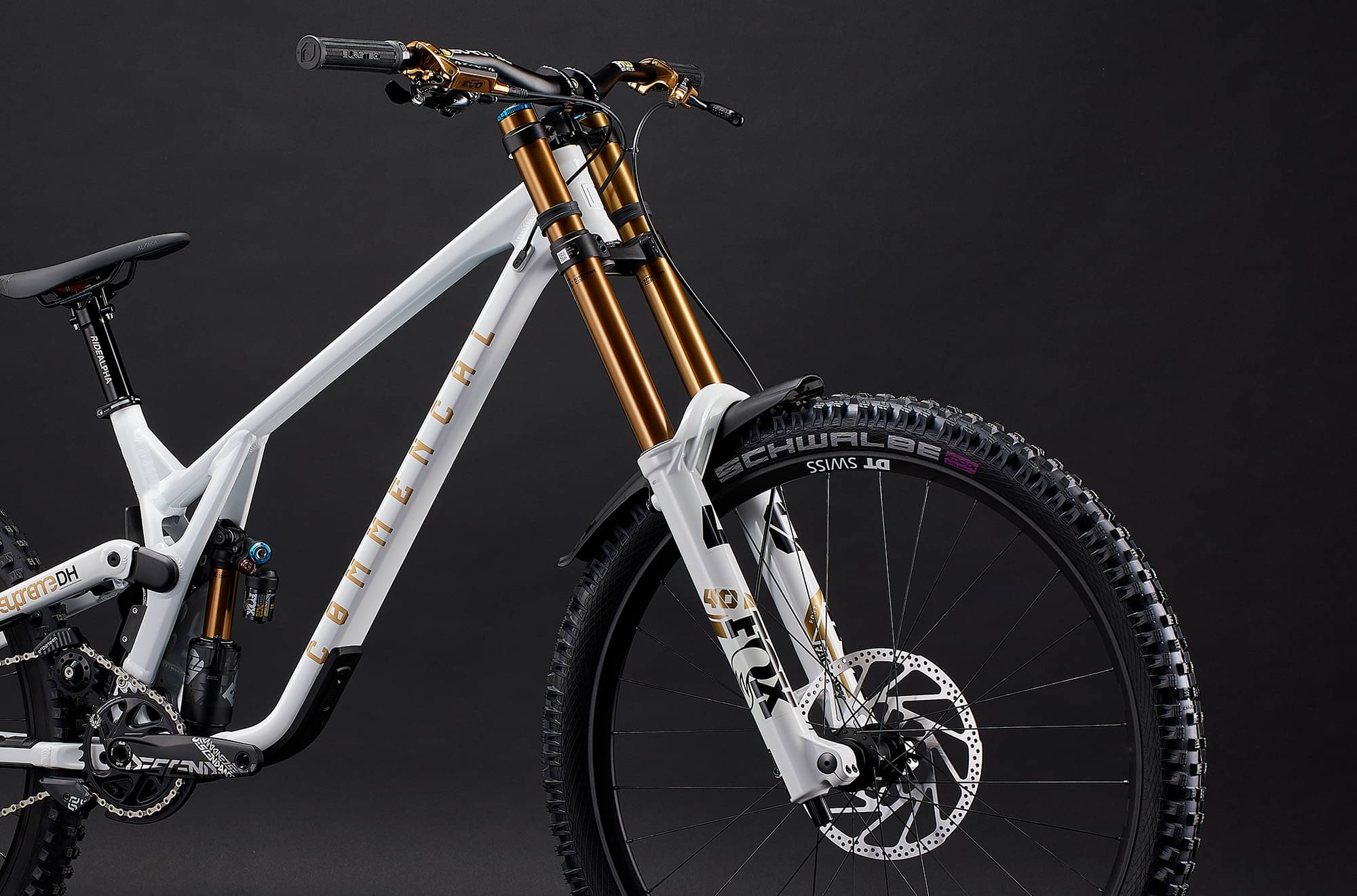

Fork
Commençal SUPREME DH V5 SIGNATURE LTD 2023 bike is equipped with the Fox Factory Float 40 fork, and has 200mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

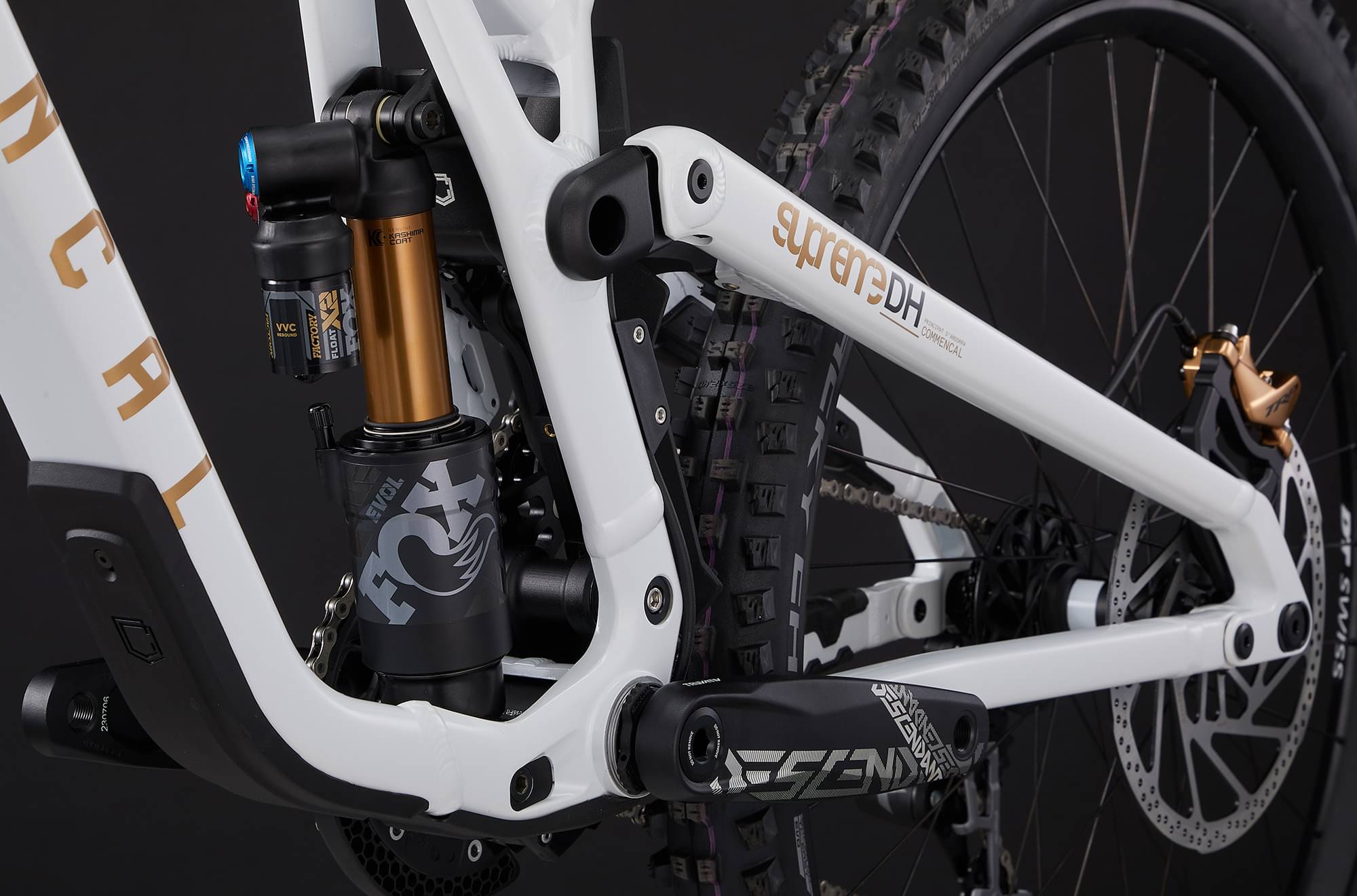

Rear Shock
The SUPREME DH V5 SIGNATURE LTD has a rear shock with a travel of 220mm. The model FOX Float X2 Factory is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on SUPREME DH V5 SIGNATURE LTD are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
