Conway Cairon C 2.0 500 diamond 2023
2023 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 500", 500 Wh, BES3 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen. 4, BES3, aluminium, diamond, 41cm
Suspension Fork
RST suspension fork "Blaze ML", 27,5", 120mm travel, tapered, post mount, black
Drivetrain
Rear Derailleur
TEKTRO "RD-M350"
Shift Levers
TEKTRO "SL-M350R", 9-speed
Cassette
TEKTRO "CS-M350", 9-speed, 11-46 teeth
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Pedals
VP COMPONENTS "VPE-506"
Wheels
Front Hub
SHIMANO "Tourney TX" HB-TX505, Center Lock, 32 holes, QR, black
Rear Hub
SHIMANO "Tourney TX" FH-TX505, Center Lock, 8-/9-/10-speed, 32 holes, QR, black
Rims
RODI "Ready 30", 30-584, 32 holes, disc brake, easy eyelets, black
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-584, reflex
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Straight", 140mm, G-Link, black / grey
Headset
GLORY WHEEL "SIT3 Strummer", ZS56/28,6 / ZS56/40, 20mm stack, ACB bearing
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", gents
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black
Motor & Battery

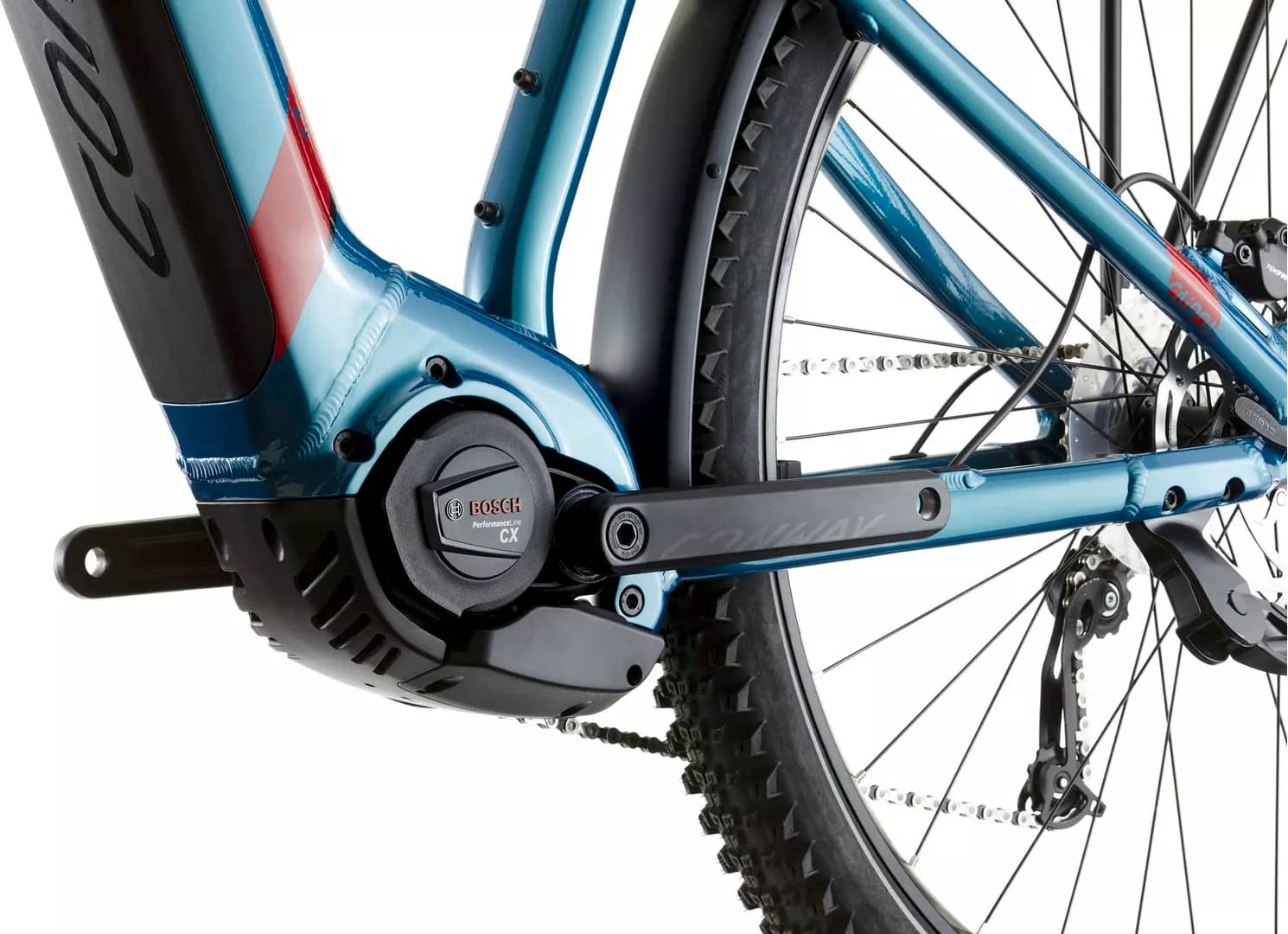

Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 500", 500 Wh, BES3
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.53 mm | 1.49 mm | 1.41 mm | 1.38 mm |
| Stack | 612 mm | 642 mm | 651 mm | 651 mm | 660 mm |
| Reach | 394 mm | 419 mm | 438 mm | 461 mm | 480 mm |
| Top Tube Length | 568 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
Cairon C 2.0 500 diamond is part of the Conway E Cairon model. Conway released 351 e-bikes variations of this model so far. Take a sneak peek at all Conway E Cairon e-bikes models from 2023, by clicking here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the most economical model, with a starting price of 2646$. Conway Cairon SUV FS 7.7 2023 on the other hand costs 5823$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Conway released this model in 2023, its price was 3493$. Comparing the average cost of a Commuter e-bike to this one, you will see that Cairon C 2.0 500 diamond price is 35.97% more expensive.
Cairon C 2.0 500 diamond components
Fork
This e-bike has the RST BLAZE fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Cairon C 2.0 500 diamond e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon C 2.0 500 diamond has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
