Conway Cairon C 2.0 500 trapeze 2023
2023 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 500", 500 Wh, BES3 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen. 4, BES3, aluminium, trapeze, 37cm
Suspension Fork
RST suspension fork "Blaze ML", 27,5", 120mm travel, tapered, post mount, black
Drivetrain
Rear Derailleur
TEKTRO "RD-M350"
Shift Levers
TEKTRO "SL-M350R", 9-speed
Cassette
TEKTRO "CS-M350", 9-speed, 11-46 teeth
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Pedals
VP COMPONENTS "VPE-506"
Wheels
Front Hub
SHIMANO "Tourney TX" HB-TX505, Center Lock, 32 holes, QR, black
Rear Hub
SHIMANO "Tourney TX" FH-TX505, Center Lock, 8-/9-/10-speed, 32 holes, QR, black
Rims
RODI "Ready 30", 30-584, 32 holes, disc brake, easy eyelets, black
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-584, reflex
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Straight", 140mm, G-Link, black / grey
Headset
GLORY WHEEL "SIT3 Strummer", ZS56/28,6 / ZS56/40, 20mm stack, ACB bearing
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", ladies
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black
Motor & Battery

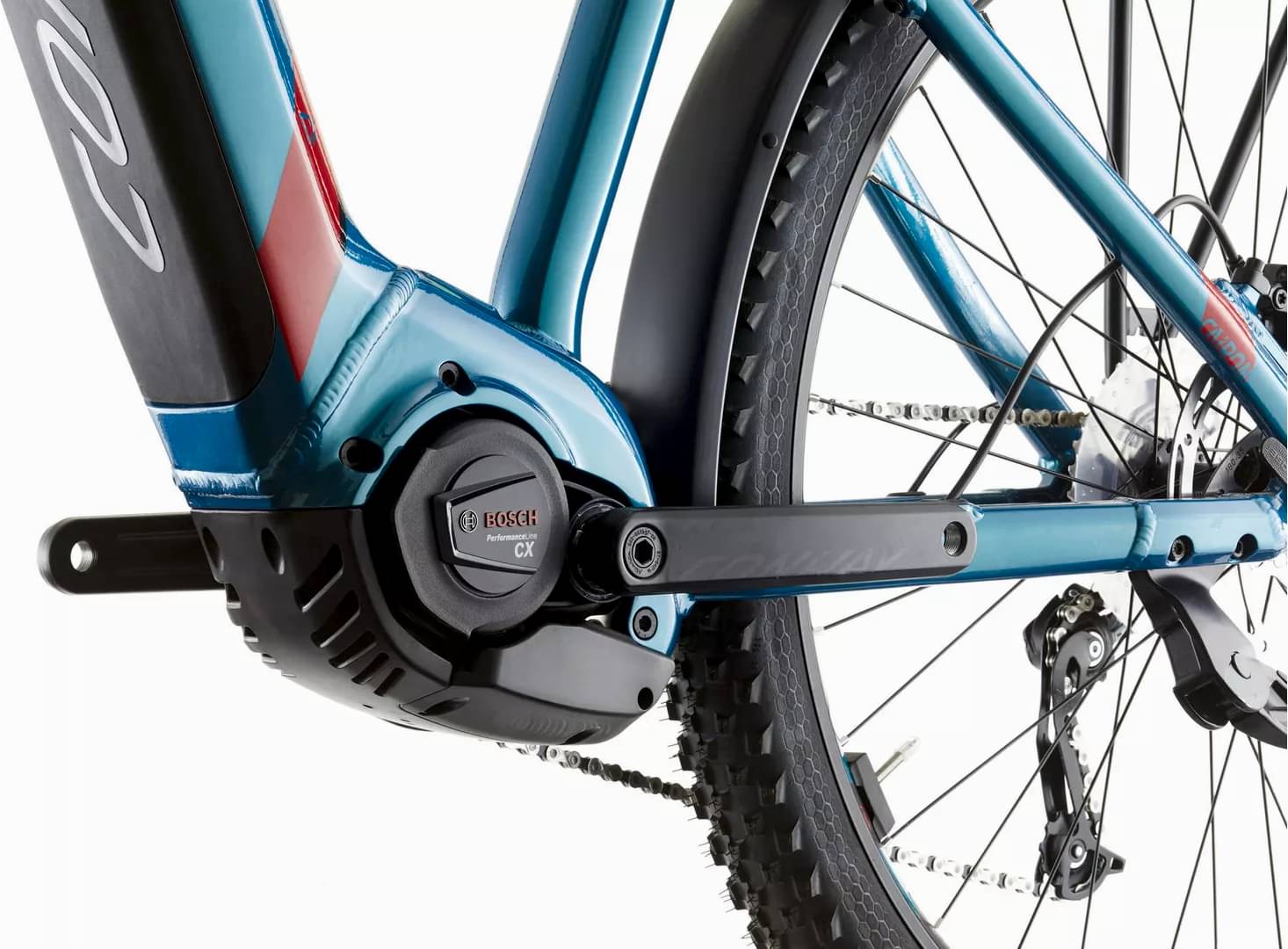

Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 500", 500 Wh, BES3
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.54 mm | 1.55 mm | 1.47 mm | 1.4 mm |
| Stack | 623 mm | 623 mm | 662 mm | 662 mm | 662 mm |
| Reach | 383 mm | 405 mm | 426 mm | 449 mm | 472 mm |
| Top Tube Length | 559 mm | 579 mm | 604 mm | 624 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 130 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 459 mm | 459 mm | 459 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Cairon C 2.0 500 trapeze is a Conway E Cairon model. 351 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Conway Cairon TF 1.7 wave 2023 has a starting price of 2646$. Conway Cairon SUV FS 7.7 2023 on the other hand is the most expensive at 5823$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 3493$. Comparing this to the average Commuter e-bike price, we see that the price is 35.97% higher.
Cairon C 2.0 500 trapeze components
Fork
The RST BLAZE is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Conway Cairon C 2.0 500 trapeze 2023, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Cairon C 2.0 500 trapeze comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
