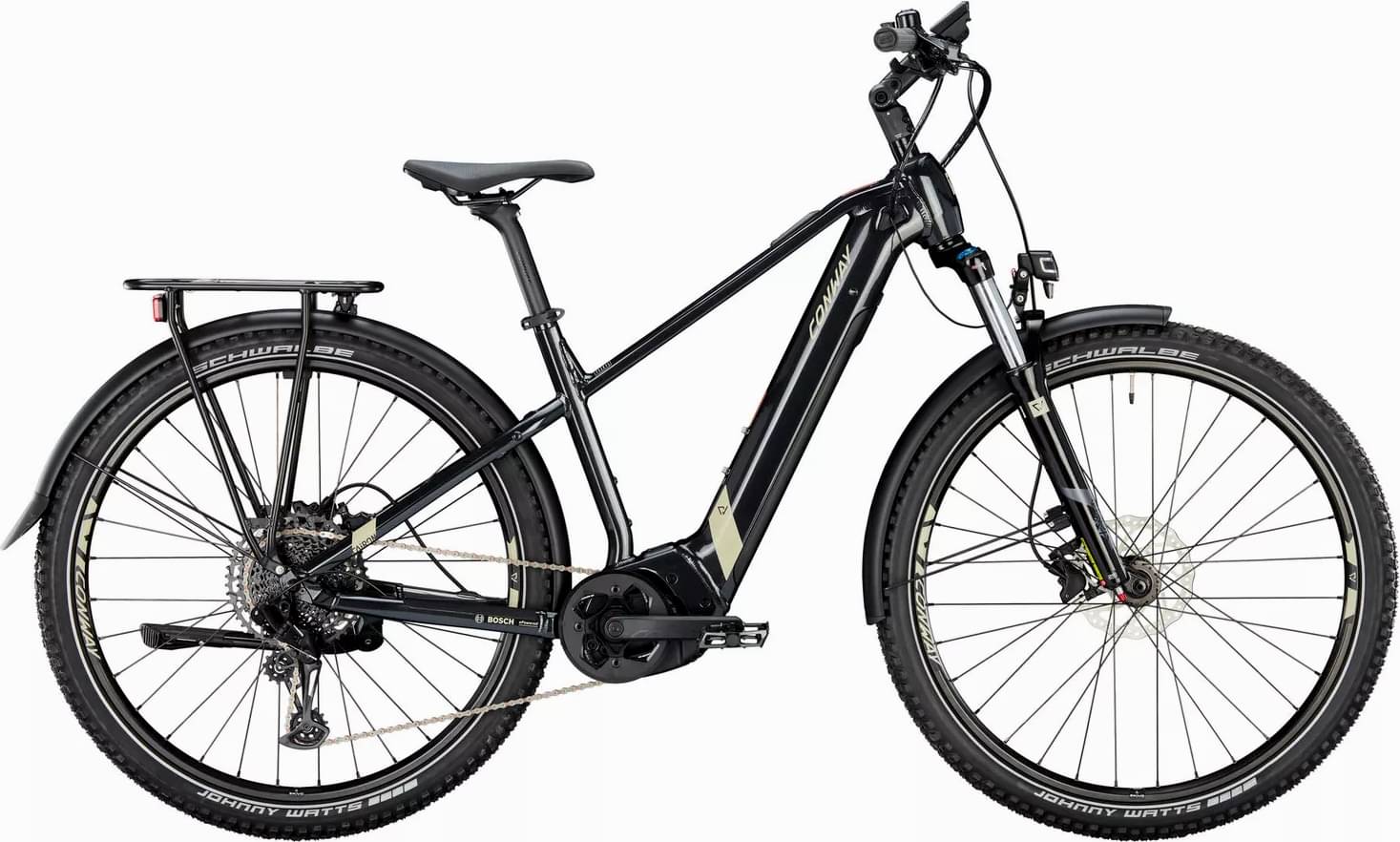

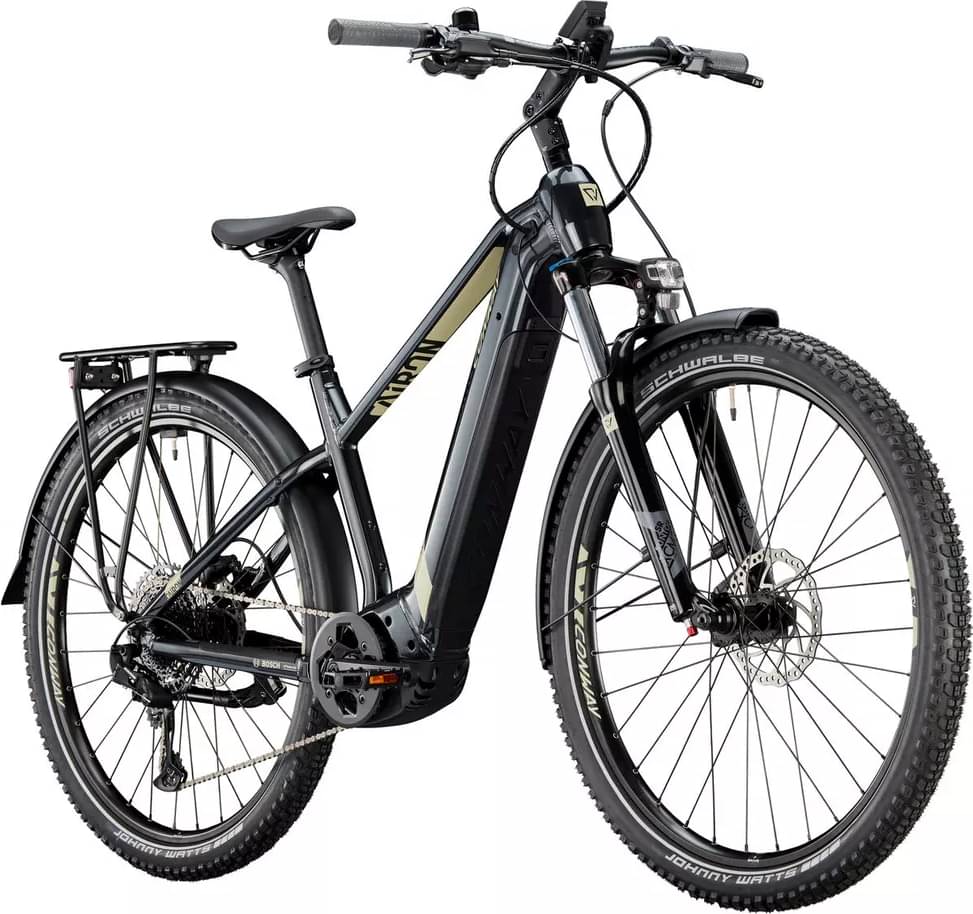

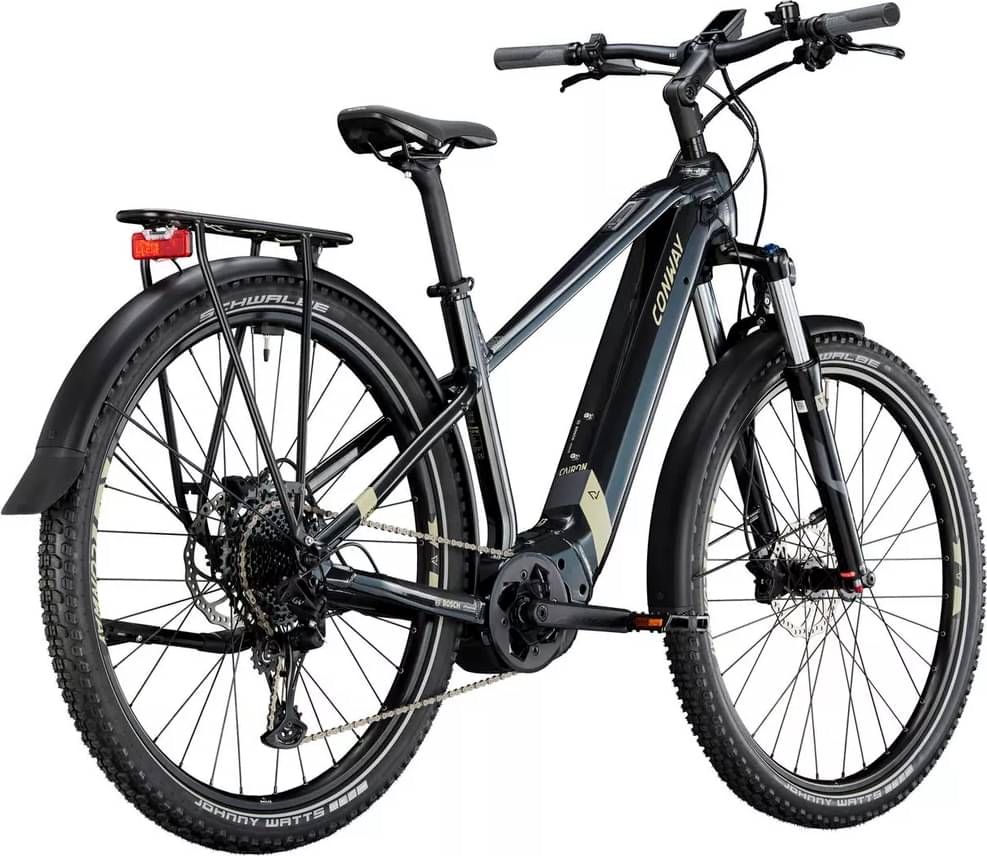

Conway Cairon C 3.0 diamond 2023
2023 E-bike
Estimate price |
4,472$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 625", 625 Wh, BES3, horizontal -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen. 4, BES3, aluminium, diamond, 41cm
Suspension Fork
SR SUNTOUR suspension fork "XCM34 LOR". 27,5", 120mm travel, tapered, 160mm shaft, post mount, boost, thru axle

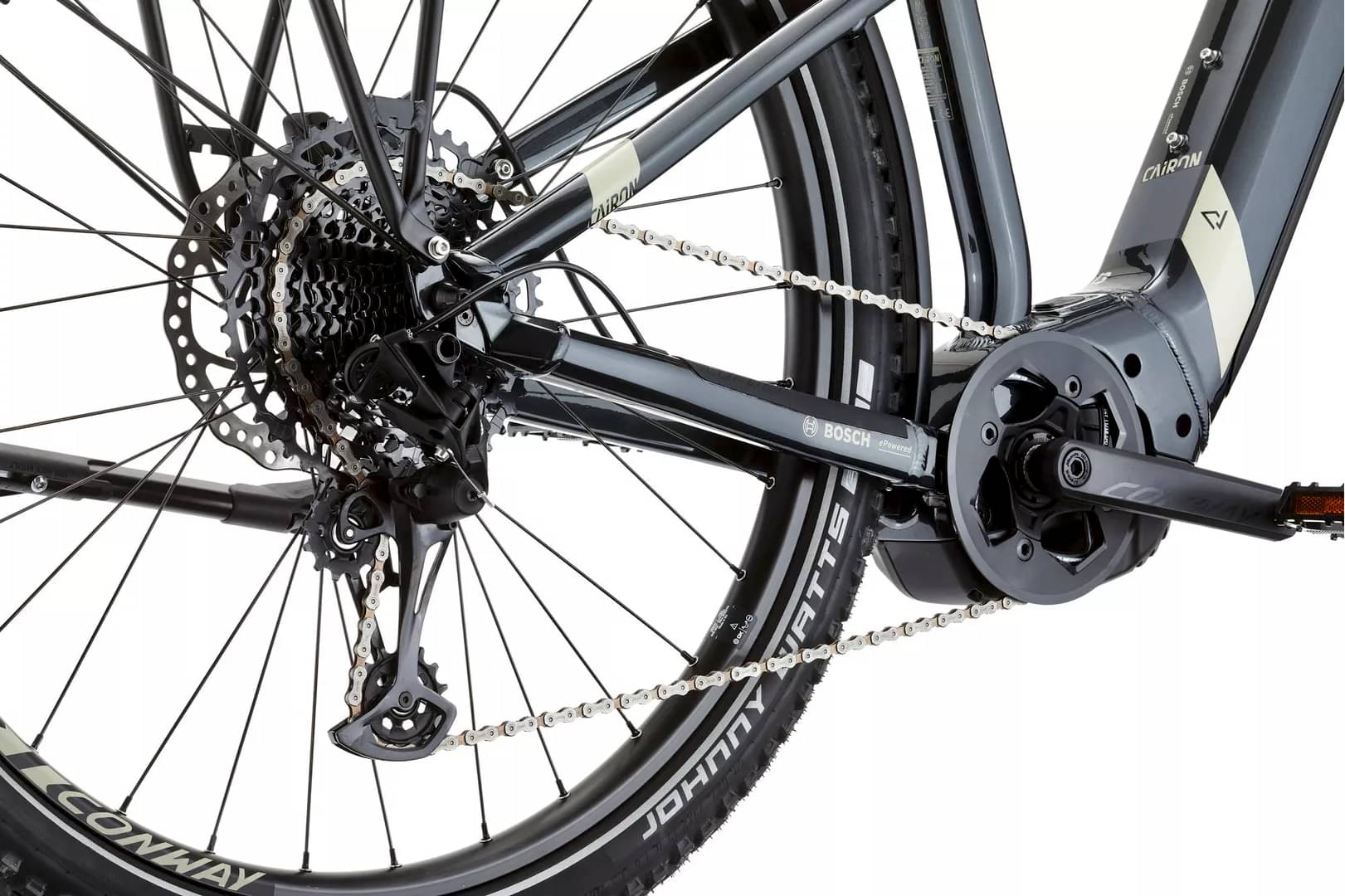

Drivetrain
Rear Derailleur
SRAM "SX Eagle"
Shift Levers
SRAM "SX Eagle", single click, 12-speed
Cassette
SRAM "PG-1210", 12-speed Eagle, 11-50 teeth
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Pedals
VP COMPONENTS "VPE-506"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110mm, 6-hole, 32 holes, thru axle, black
Rear Hub
FORMULA "EHL-135S", 6-hole, 11-speed HG, 32 holes, QR, black
Rims
MACH1 "MAXX", 25-584, 32 holes, disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
SCHWALBE "Johnny Watts" Performance Line, 60-584, DD, Race Guard, Addix, foldable, 67 TPI, E-50, reflex
Brakes
Brakes
hydraulic disc brake

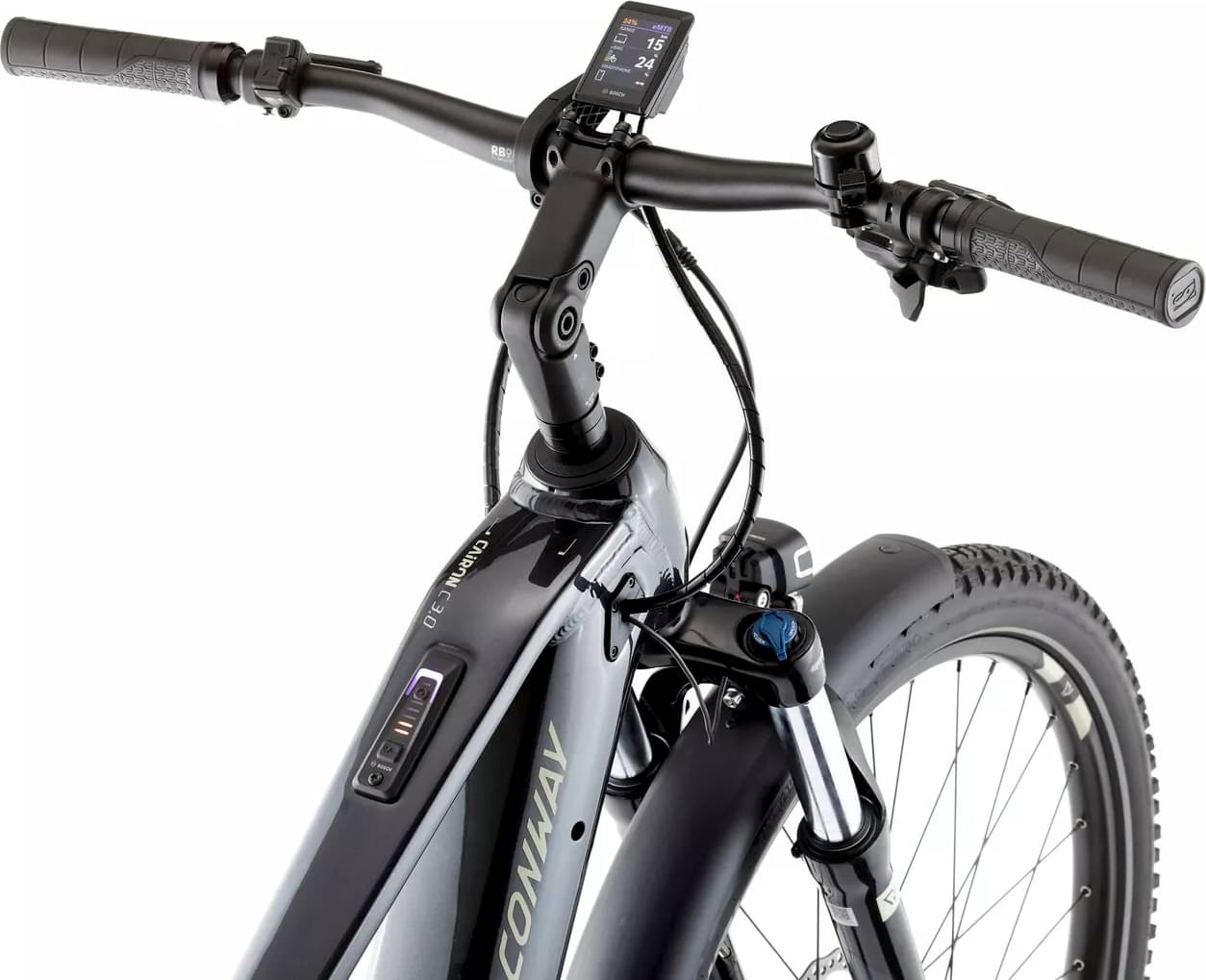

Cockpit
Stem
LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Straight", 140mm, G-Link, black / grey
Headset
ACROS ZS56/28,6 / ZS56/40, 1 1/8" - 1,5" tapered, 120° blocklock below
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", gents
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black
Motor & Battery

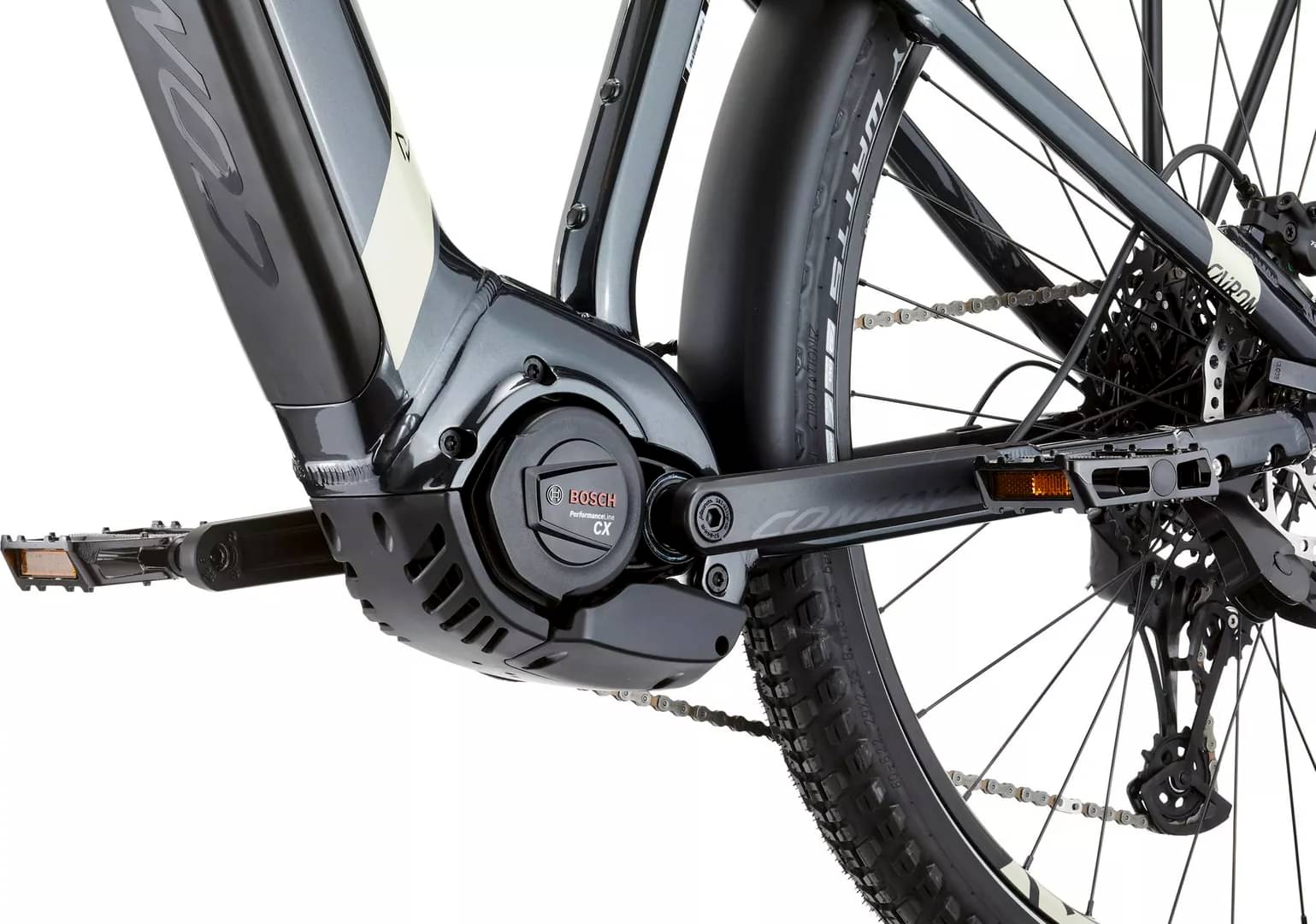

Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 625", 625 Wh, BES3, horizontal
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.53 mm | 1.49 mm | 1.41 mm | 1.38 mm |
| Stack | 612 mm | 642 mm | 651 mm | 651 mm | 660 mm |
| Reach | 394 mm | 419 mm | 438 mm | 461 mm | 480 mm |
| Top Tube Length | 568 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
Cairon C 3.0 diamond completes the Conway E Cairon model. There are 351 e-bikes that carry this model name. Take a sneak peek at all Conway E Cairon e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Conway Cairon TF 1.7 wave 2023 has a starting price of 2646$. Conway Cairon SUV FS 7.7 2023 on the other hand is the most expensive at 5823$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4129$. In conclusion, this e-bike price is 60.72% more expensive than the price of the average Commuter e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Cairon C 3.0 diamond are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon C 3.0 diamond comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
