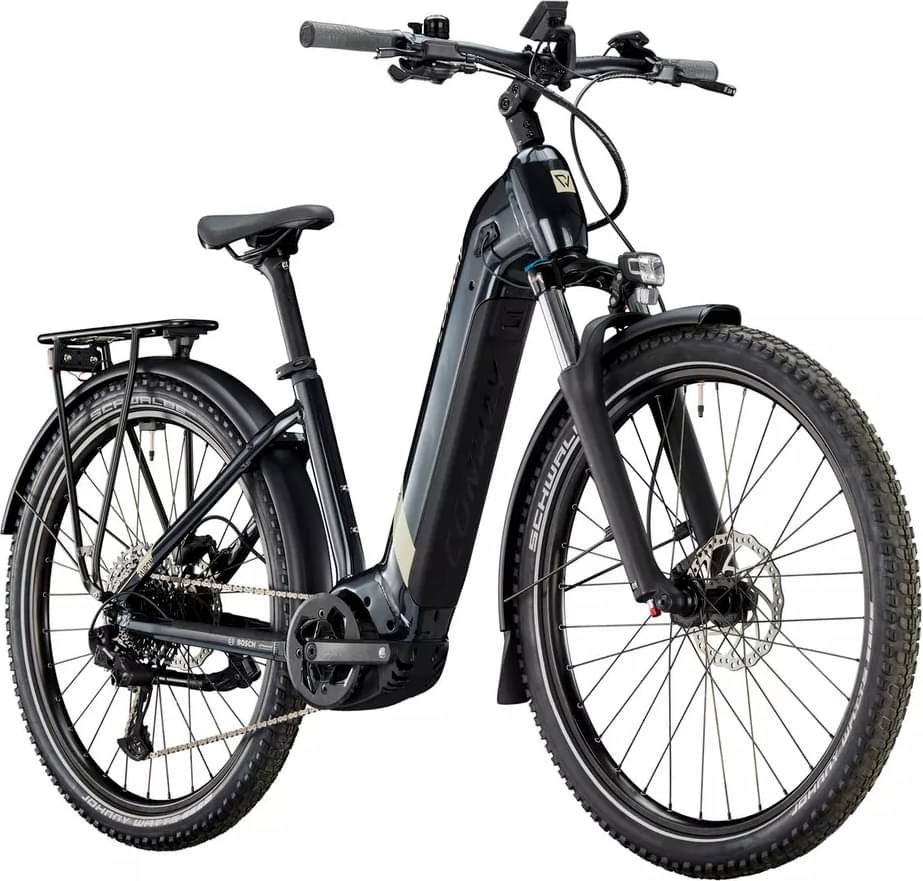

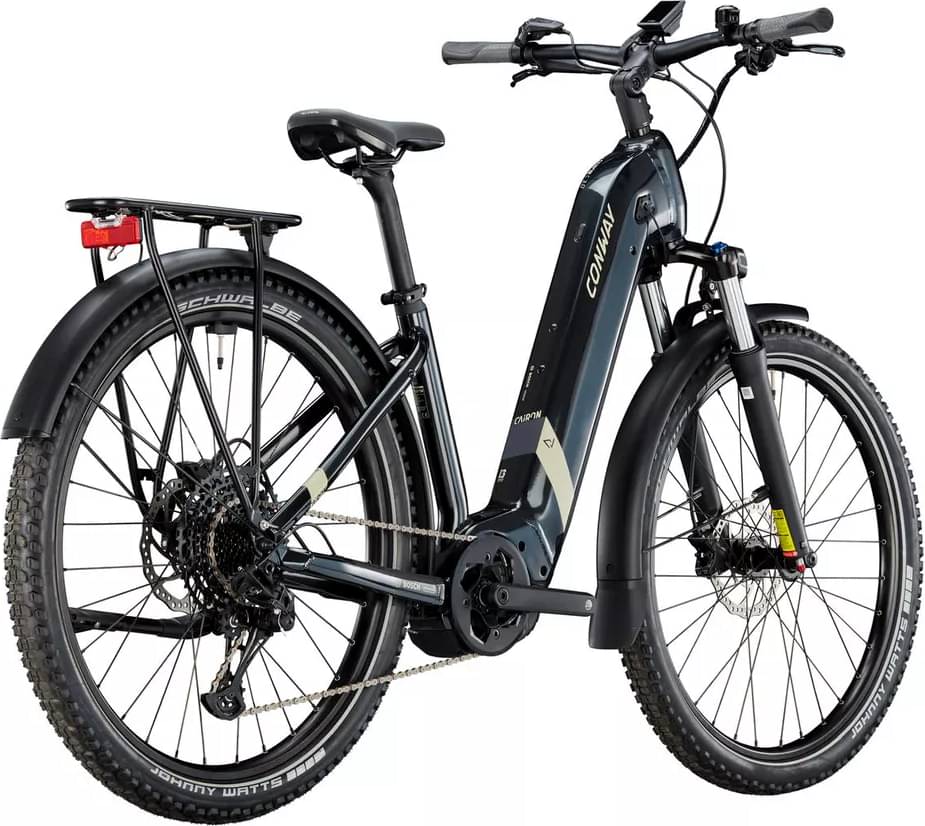

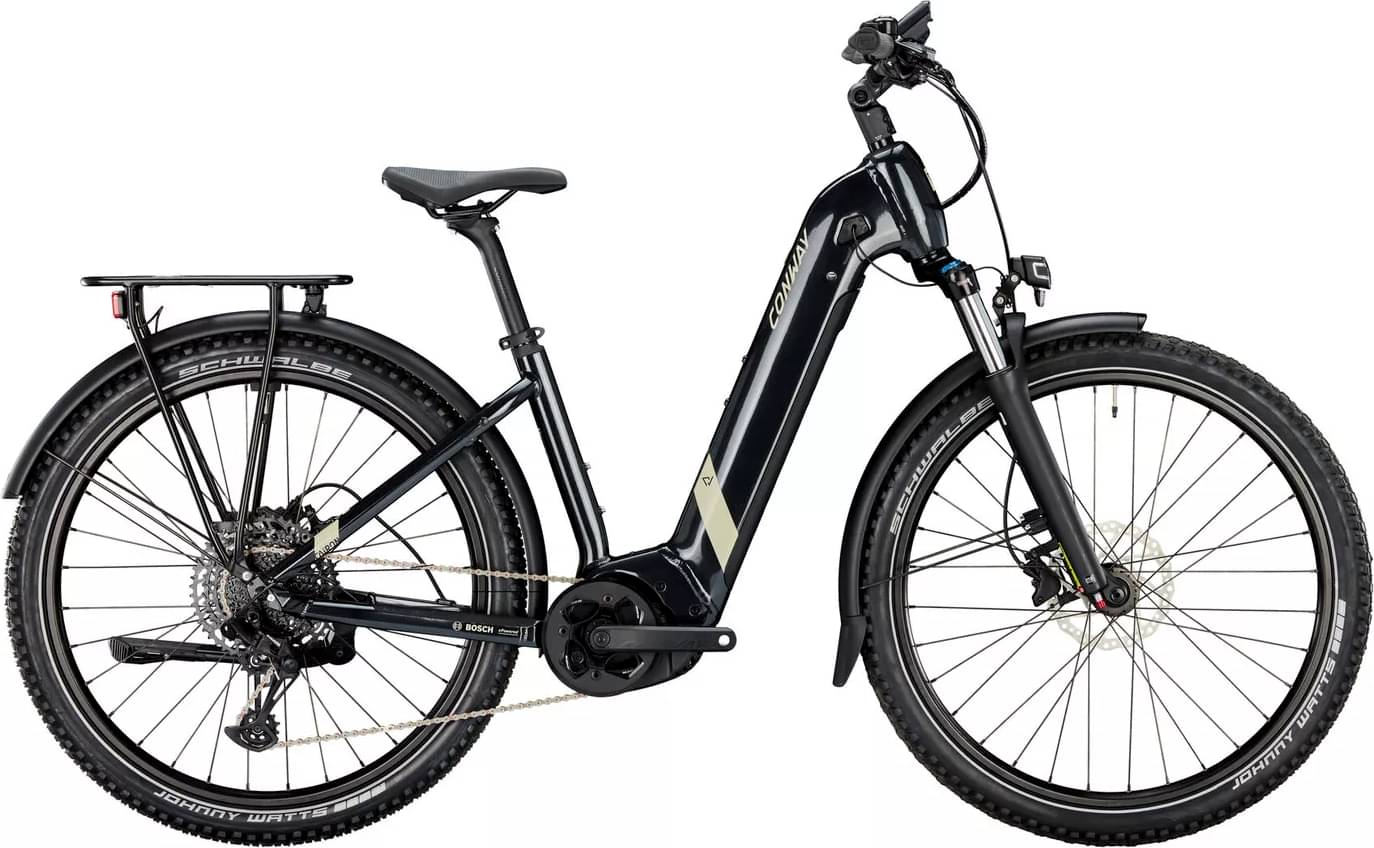

Conway Cairon C 3.0 wave 2023
2023 E-bike
Estimate price |
4,472$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 625", 625 Wh, BES3, horizontal -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen. 4, BES3, aluminium, wave, 38cm
Suspension Fork
SR SUNTOUR suspension fork "XCM34 LOR". 27,5", 120mm travel, tapered, 160mm shaft, post mount, boost, thru axle

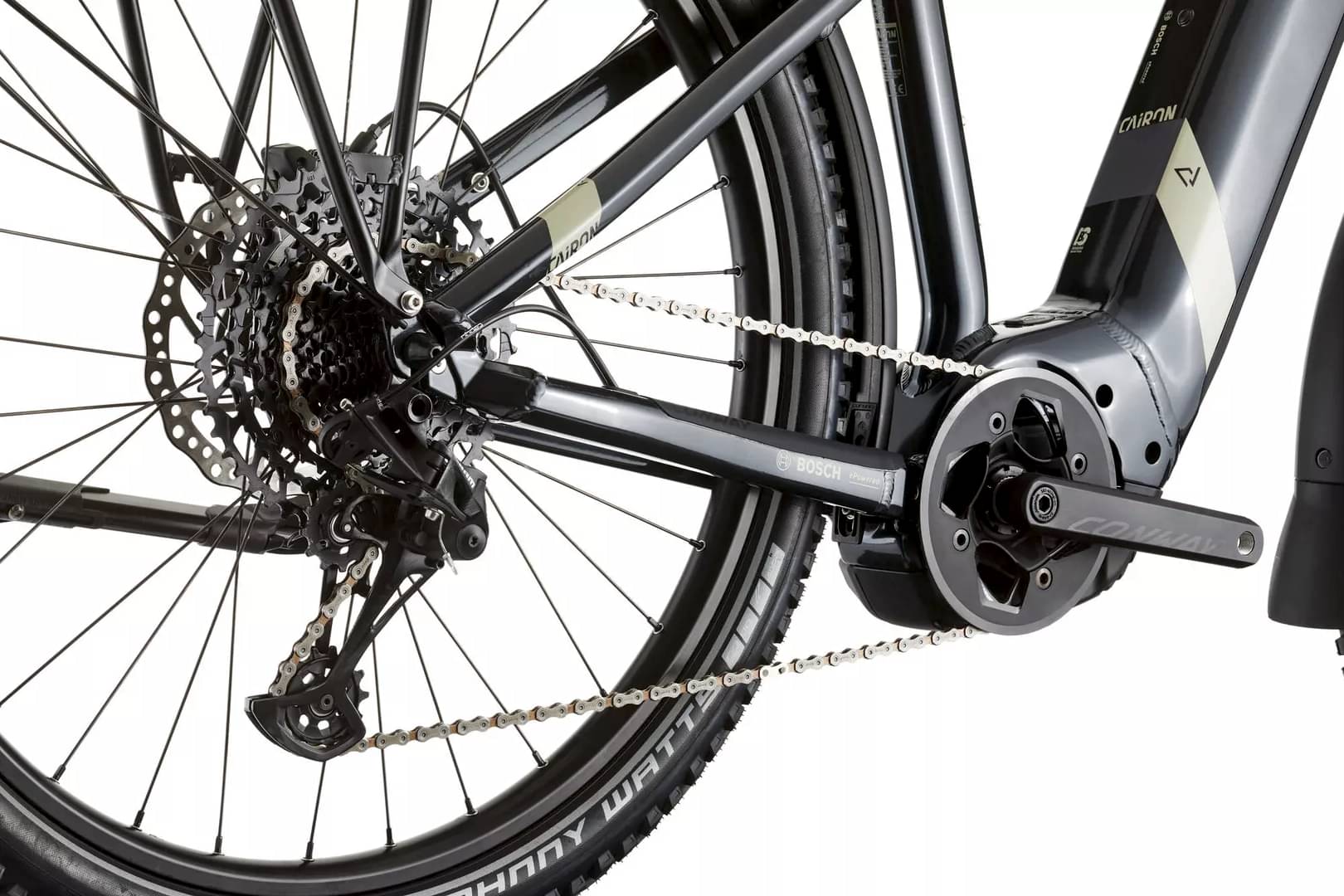

Drivetrain
Rear Derailleur
SRAM "SX Eagle"
Shift Levers
SRAM "SX Eagle", single click, 12-speed
Cassette
SRAM "PG-1210", 12-speed Eagle, 11-50 teeth
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Pedals
VP COMPONENTS "VPE-506"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110mm, 6-hole, 32 holes, thru axle, black
Rear Hub
FORMULA "EHL-135S", 6-hole, 11-speed HG, 32 holes, QR, black
Rims
MACH1 "MAXX", 25-584, 32 holes, disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
SCHWALBE "Johnny Watts" Performance Line, 60-584, DD, Race Guard, Addix, foldable, 67 TPI, E-50, reflex
Brakes
Brakes
hydraulic disc brake

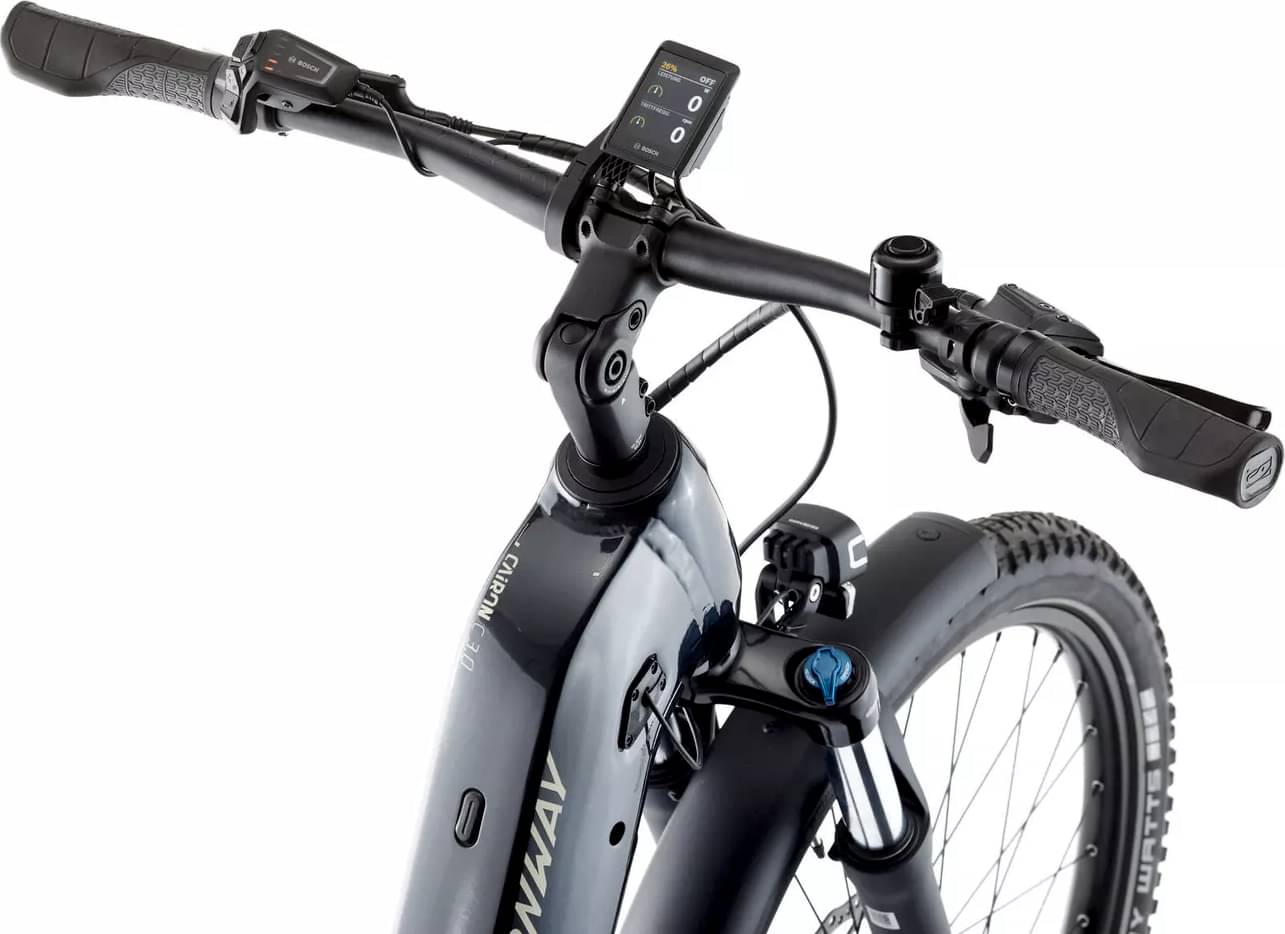

Cockpit
Stem
LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Comfort", 140mm, G-Link, black / grey
Headset
ACROS ZS56/28,6 / ZS56/40, 1 1/8" - 1,5" tapered, 120° blocklock below
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", ladies
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black
Motor & Battery

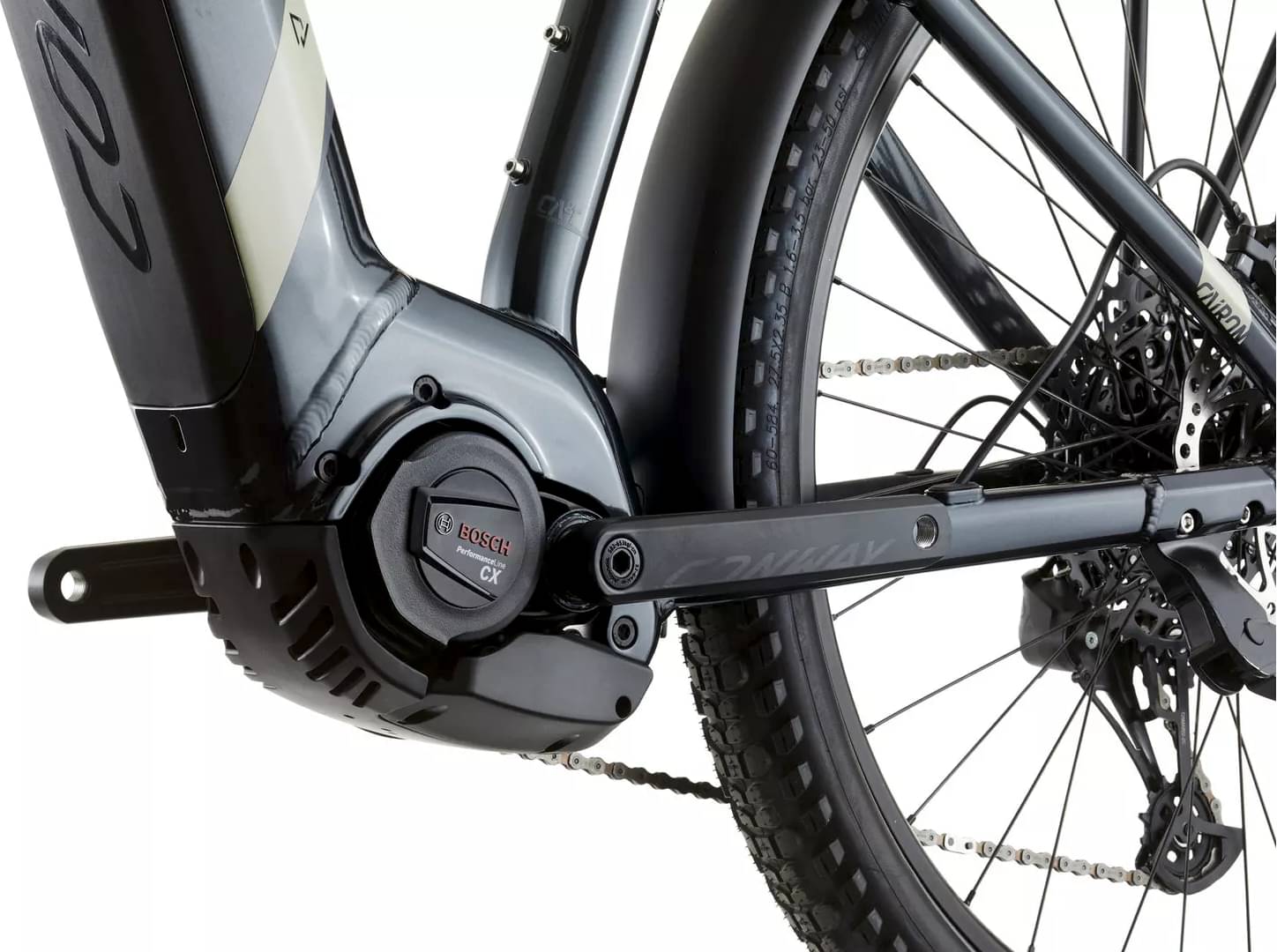

Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 625", 625 Wh, BES3, horizontal
Remote
BOSCH "BRC3600", LED remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.81 mm | 1.72 mm | 1.63 mm | 1.61 mm | 1.54 mm |
| Stack | 652 mm | 657 mm | 657 mm | 676 mm | 676 mm |
| Reach | 361 mm | 383 mm | 404 mm | 419 mm | 439 mm |
| Top Tube Length | 562 mm | 582 mm | 602 mm | 622 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 385 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 66 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 150 mm | 150 mm | 150 mm | 170 mm | 170 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Cairon C 3.0 wave is a Conway E Cairon model. Conway launched 351 e-bikes of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2023, here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the cheapest e-bike model and costs 2646$. Conway Cairon SUV FS 7.7 2023 is the most expensive one and costs 5823$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Conway Cairon C 3.0 wave price was 4129$. If we compare this with the average Commuter e-bike cost we notice that the price is 60.72% higher.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Conway Cairon C 3.0 wave 2023, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon C 3.0 wave comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
