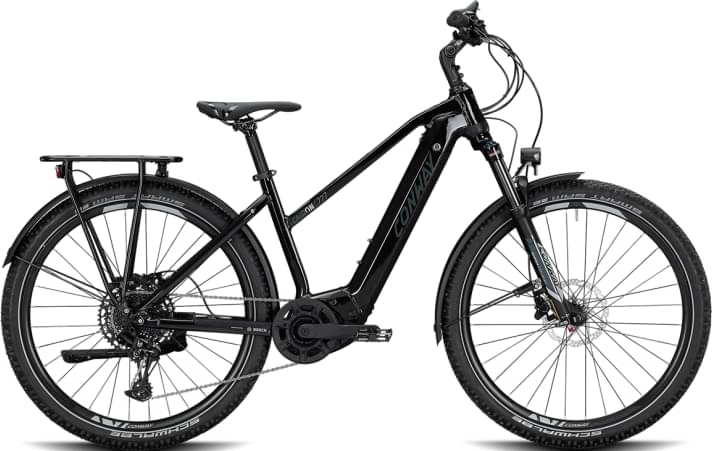

Conway Cairon C 727 Trapez 2020
2020 E-bike
Estimate price |
4,013$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR 34
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PT, Alu
Suspension Fork
SR SUNTOUR "XCR34 Air" LRO 120 mm
Drivetrain
Rear Derailleur
SRAM "NX Eagle", 12-speed
Shift Levers
SRAM "SX Eagle Trigger" single click
Cassette
SRAM "PG 1210 Eagle", 11-50 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-MT400" 15x110 mm Boost
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
CONWAY Hohlkammer "X6", Disc
Tires
SCHWALBE " Smart Sam" 57-584, Reflex
Brakes
Brakes
SHIMANO "BR-MT400", 180 mm
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378" Comfort
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.53 mm | 1.49 mm | 1.42 mm |
| Stack | 613 mm | 613 mm | 622 mm | 622 mm |
| Reach | 381 mm | 400 mm | 417 mm | 437 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1118 mm | 1138 mm | 1159 mm | 1179 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Cairon C 727 Trapez completes the Conway E Cairon model. There are 281 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Conway Cairon T 200 SE Wave 400 2020 has a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand is the most expensive at 4565$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Conway Cairon C 727 Trapez price was 3715$. In conclusion, this e-bike price is 10.4% higher than the price of the average Trail e-bike.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Cairon C 727 Trapez weighs 24.8 kg (54.67 lbs) and is slightly heavier than the average. To sum up, it’s 4.64% heavier than the average weight of Trail e-bikes.
Cairon C 727 Trapez components
Fork
The SunTour XCR 34 is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Cairon C 727 Trapez model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon C 727 Trapez has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
