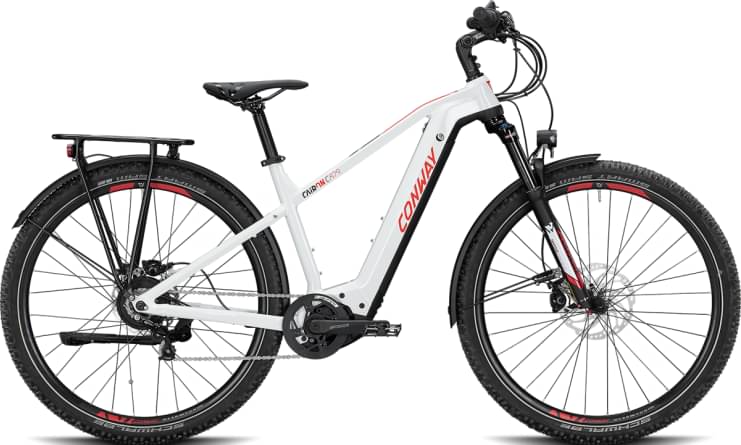

Conway Cairon C 829 2020
2020 E-bike
Estimate price |
4,587$
Weight | 27.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 120mm -
Fork SunTour XCR 34
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PT, Alu
Suspension Fork
SR SUNTOUR "XCR34 Air" LRO 120 mm
Drivetrain
Rear Derailleur
ENVIOLO "SP TR CVP"
Shift Levers
ENVIOLO "SP Manual Controller"
Cassette
ENVIOLO
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-8010" 15x110 mm Boost
Rear Hub
ENVIOLO "SP"
Rims
CONWAY Hohlkammer "X6", Disc
Tires
SCHWALBE " Smart Sam" 57-622, Refelx
Brakes
Brakes
SHIMANO "SLX BR-M7120", 203/180 mm
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378" Comfort
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.53 mm | 1.52 mm | 1.46 mm |
| Stack | 630 mm | 630 mm | 649 mm | 649 mm |
| Reach | 394 mm | 412 mm | 426 mm | 445 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1136 mm | 1156 mm | 1177 mm | 1197 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon C 829 belongs to the Conway E Cairon model. Conway released 281 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Conway Cairon T 200 SE Wave 400 2020 is the most economical model, with a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand costs 4565$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2020 and its price was 4246$. In conclusion, this e-bike price is 26.18% more expensive than the price of the average Trail e-bike.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Conway Cairon C 829 it’s weighing 27.3 kg (60.19 lbs). At this weight, is much heavier than average. In other words, this model is 15.19% heavier than the average Trail e-bike.
Cairon C 829 components
Fork
This e-bike has the SunTour XCR 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Cairon C 829 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon C 829 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Conway Cairon C 829 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
