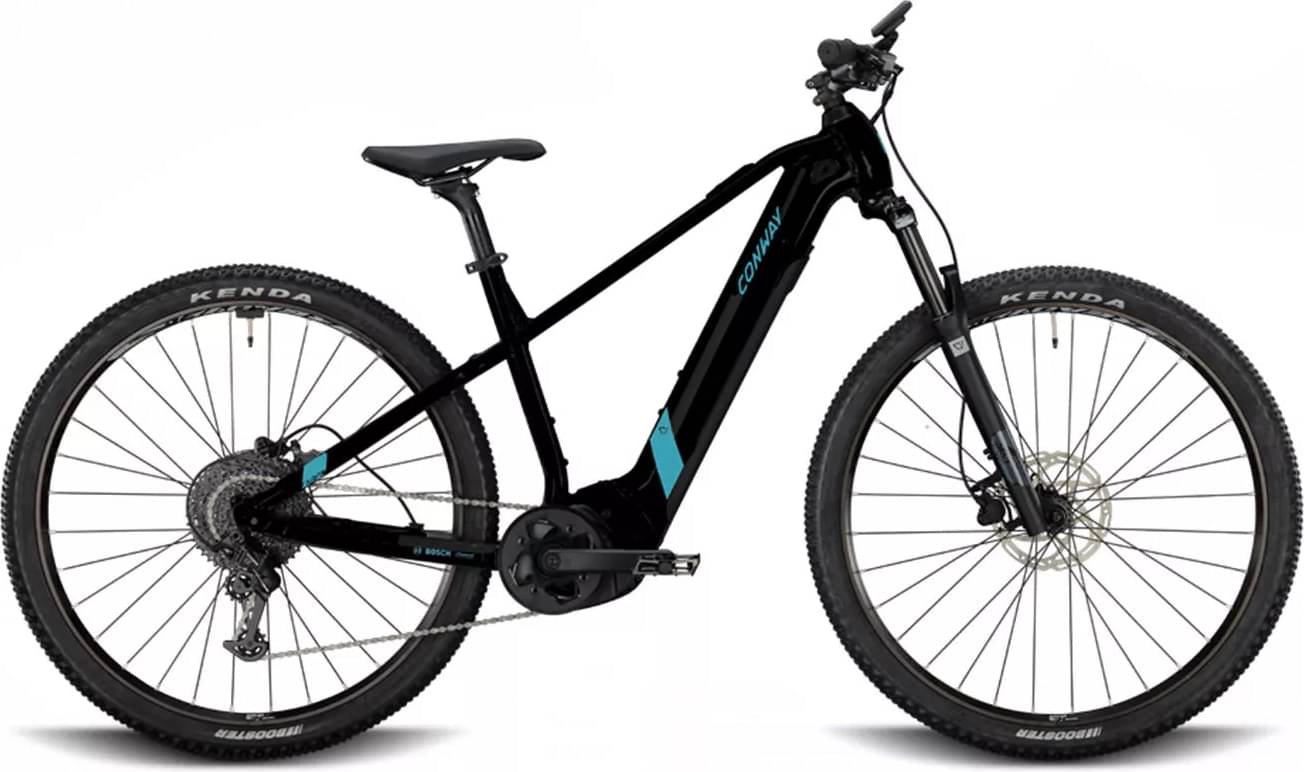

Conway Cairon S 2.0 500 Hardtail, Diamant 2023
2023 E-bike
Estimate price |
3,554$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 500", lithium-ion with BMS, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, aluminum
Suspension Fork
RST "Blaze ML", 120 mm
Drivetrain
Rear Derailleur
TEKTRO "RD-M350", 9speed
Shift Levers
TEKTRO "RD-M350R"
Crank
MIRANDA "Classic Gen4", 165 mm
Bottom Bracket
Bosch, press-fit
Pedals
VP "VPE-506"
Wheels
Rims
RODI "Ready 30"
Spokes
Niro
Tires
SCHWALBE "Tough Tom", 60-584
Brakes
Brakes
TEKTRO "HD-M280"
Brake Levers
TEKTRO "HD-M280"
Cockpit
Stem
CONWAY, 31.8mm, 75mm
Handlebar
CONWAY "Riser", Ø 31.8, 720 mm
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31.6mm, 350mm
Motor & Battery
Motor
BOSCH mid-engine Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 500", lithium-ion with BMS, 500 Wh
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.53 mm | 1.49 mm | 1.41 mm | 1.38 mm |
| Stack | 612 mm | 642 mm | 651 mm | 651 mm | 660 mm |
| Reach | 394 mm | 419 mm | 438 mm | 461 mm | 480 mm |
| Top Tube Length | 568 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
Cairon S 2.0 500 Hardtail, Diamant is a Conway E Cairon model. Conway released 351 e-bikes variations of this model so far. Take a sneak peek at all Conway E Cairon e-bikes models from 2023, by clicking here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the most affordable e-bike of this model and has a price of 2646$. On the other hand, Conway Cairon SUV FS 7.7 2023, is the most expensive and costs 5823$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 3282$. If we compare this with the average Trail e-bike cost we notice that the price is 2.53% smaller.
Cairon S 2.0 500 Hardtail, Diamant components
Fork
This e-bike has the RST BLAZE fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Conway Cairon S 2.0 500 Hardtail, Diamant 2023, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Conway Cairon S 2.0 500 Hardtail, Diamant has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
