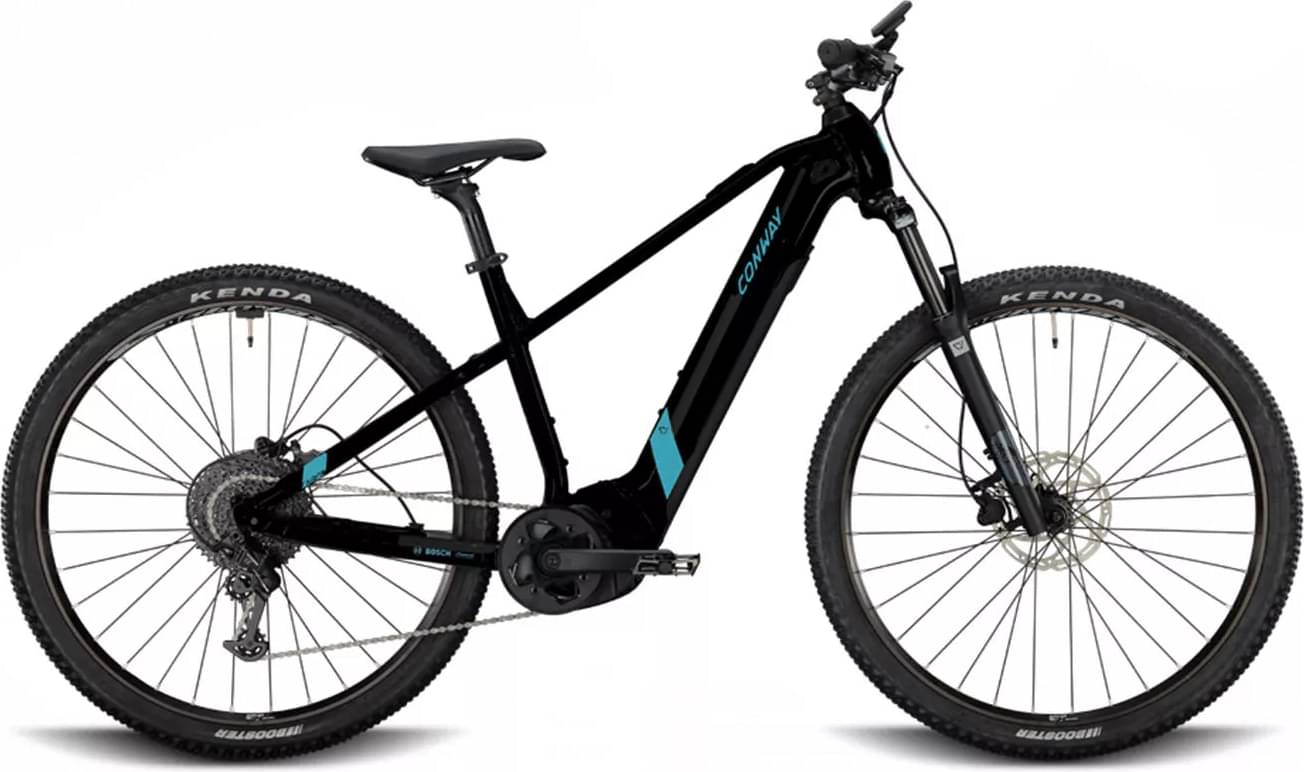

Conway Cairon S 2.0 500 Hardtail, diamond 2023
2023 E-bike
Estimate price |
3,554$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 500", 500 Wh, BES3 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen.4, BES3, aluminium, diamond, 41cm
Suspension Fork
RST suspension fork "Blaze ML", 27,5", 120mm travel, tapered, post mount, black
Drivetrain
Rear Derailleur
TEKTRO "RD-M350"
Shift Levers
TEKTRO "SL-M350R", 9-speed
Cassette
TEKTRO "CS-M350", 9-speed, 11-46 teeth, HG
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Pedals
VP COMPONENTS "VPE-506"
Wheels
Front Hub
SHIMANO "Tourney TX" HB-TX505, Center Lock, 32 holes, QR, black
Rear Hub
SHIMANO "Tourney TX" FH-TX505, Center Lock, 8-/9-/10-speed, 32 holes, QR, black
Rims
RODI "Ready 30", 30-584, 32 holes, disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
SCHWALBE "Tough Tom" Active Line, 60-584,K-Guard, 50 TPI
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
CONWAY, 1 1/8", 31,8mm handlebar clamp, 75mm long, angle 7°, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Straight", 140mm, G-Link, black / grey
Headset
GLORY WHEEL "SIT3 Strummer", ZS56/28,6 / ZS56/40, 20mm stack, ACB bearing
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", gents
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black
Motor & Battery
Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 500", 500 Wh, BES3
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.53 mm | 1.49 mm | 1.41 mm | 1.38 mm |
| Stack | 612 mm | 642 mm | 651 mm | 651 mm | 660 mm |
| Reach | 394 mm | 419 mm | 438 mm | 461 mm | 480 mm |
| Top Tube Length | 568 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
Cairon S 2.0 500 Hardtail, diamond is a Conway E Cairon model. There are 351 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the most economical model, with a starting price of 2646$. Conway Cairon SUV FS 7.7 2023 on the other hand costs 5823$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Conway Cairon S 2.0 500 Hardtail, diamond price was 3282$. Comparing the average cost of a Trail e-bike to this one, you will see that Cairon S 2.0 500 Hardtail, diamond price is 2.53% smaller.
Overview of components
Fork
The Cairon S 2.0 500 Hardtail, diamond comes factory-installed with the RST BLAZE fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Conway Cairon S 2.0 500 Hardtail, diamond 2023, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Conway Cairon S 2.0 500 Hardtail, diamond has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
