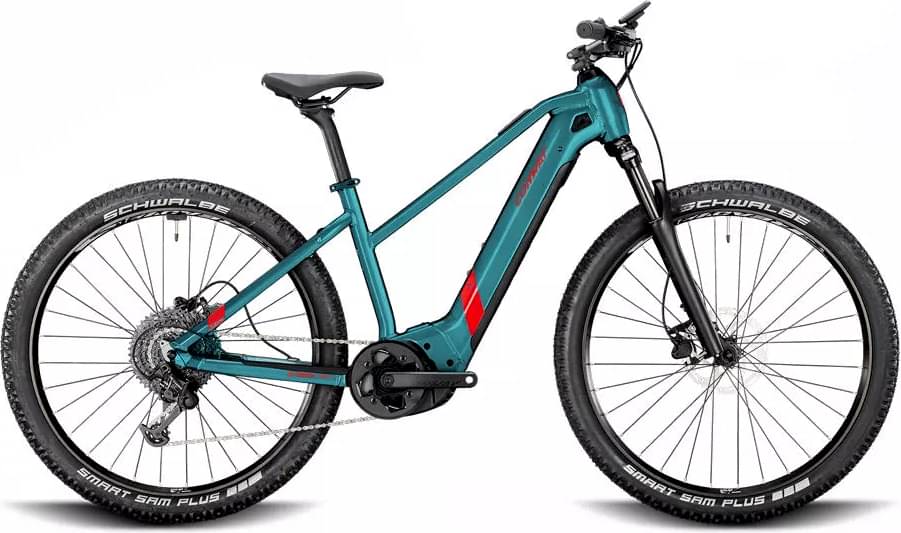

Conway Cairon S 2.0 500 Hardtail, Trapez 2023
2023 E-bike
Estimate price |
3,554$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 500", lithium-ion with BMS, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, aluminum
Suspension Fork
RST "Blaze ML", 120 mm
Drivetrain
Rear Derailleur
TEKTRO "RD-M350", 9speed
Shift Levers
TEKTRO "RD-M350R"
Crank
MIRANDA "Classic Gen4", 165 mm
Bottom Bracket
Bosch, press-fit
Pedals
VP "VPE-506"
Wheels
Rims
RODI "Ready 30"
Spokes
Niro
Tires
SCHWALBE "Tough Tom", 60-584
Brakes
Brakes
TEKTRO "HD-M280"
Brake Levers
TEKTRO "HD-M280"
Cockpit
Stem
CONWAY, 31.8mm, 75mm
Handlebar
CONWAY "Riser", Ø 31.8, 720 mm
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31.6mm, 350mm
Motor & Battery
Motor
BOSCH mid-engine Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 500", lithium-ion with BMS, 500 Wh
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.54 mm | 1.55 mm | 1.47 mm | 1.4 mm |
| Stack | 623 mm | 623 mm | 662 mm | 662 mm | 662 mm |
| Reach | 383 mm | 405 mm | 426 mm | 449 mm | 472 mm |
| Top Tube Length | 559 mm | 579 mm | 604 mm | 624 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 130 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 459 mm | 459 mm | 459 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Cairon S 2.0 500 Hardtail, Trapez completes the Conway E Cairon model. Conway launched 351 e-bikes of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2023, here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the most economical model, with a starting price of 2646$. Conway Cairon SUV FS 7.7 2023 on the other hand costs 5823$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Conway Cairon S 2.0 500 Hardtail, Trapez price was 3282$. Doing a quick comparison, we notice that Cairon S 2.0 500 Hardtail, Trapez price is 2.53% lower than the average cost of a Trail e-bike.
Overview of components
Fork
The Cairon S 2.0 500 Hardtail, Trapez comes factory-installed with the RST BLAZE fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Cairon S 2.0 500 Hardtail, Trapez 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Conway Cairon S 2.0 500 Hardtail, Trapez e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
