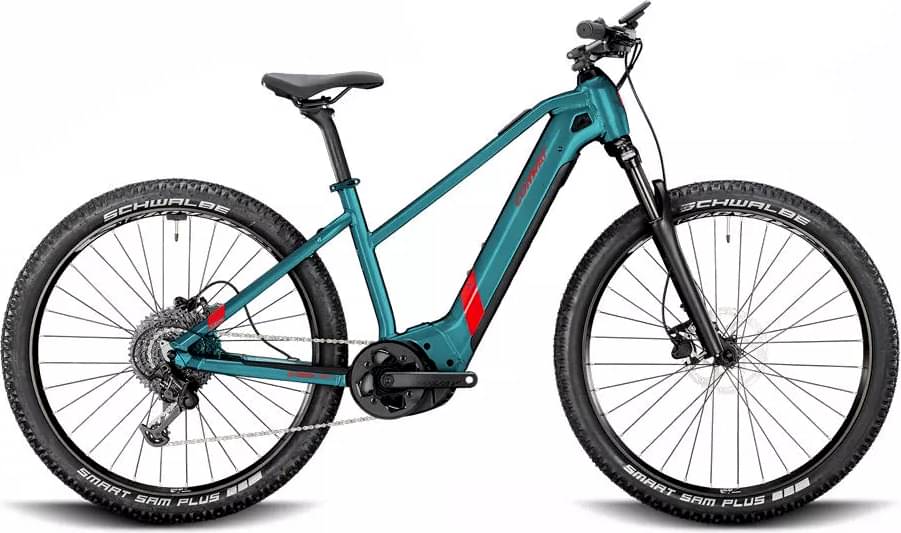

Conway Cairon S 2.0 500 Hardtail, trapeze 2023
2023 E-bike
Estimate price |
3,554$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 500", 500 Wh, BES3 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen.4, BES3, aluminium, trapeze, 37cm
Suspension Fork
RST suspension fork "Blaze ML", 27,5", 120mm travel, tapered, post mount, black
Drivetrain
Rear Derailleur
TEKTRO "RD-M350"
Shift Levers
TEKTRO "SL-M350R", 9-speed
Cassette
TEKTRO "CS-M350", 9-speed, 11-46 teeth, HG
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Pedals
VP COMPONENTS "VPE-506"
Wheels
Front Hub
SHIMANO "Tourney TX" HB-TX505, Center Lock, 32 holes, QR, black
Rear Hub
SHIMANO "Tourney TX" FH-TX505, Center Lock, 8-/9-/10-speed, 32 holes, QR, black
Rims
RODI "Ready 30", 30-584, 32 holes, disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
SCHWALBE "Tough Tom" Active Line, 60-584,K-Guard, 50 TPI
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
CONWAY, 1 1/8", 31,8mm handlebar clamp, 75mm long, angle 7°, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Straight", 140mm, G-Link, black / grey
Headset
GLORY WHEEL "SIT3 Strummer", ZS56/28,6 / ZS56/40, 20mm stack, ACB bearing
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", ladies
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black
Motor & Battery
Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 500", 500 Wh, BES3
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.54 mm | 1.55 mm | 1.47 mm | 1.4 mm |
| Stack | 623 mm | 623 mm | 662 mm | 662 mm | 662 mm |
| Reach | 383 mm | 405 mm | 426 mm | 449 mm | 472 mm |
| Top Tube Length | 559 mm | 579 mm | 604 mm | 624 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 130 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 459 mm | 459 mm | 459 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Cairon S 2.0 500 Hardtail, trapeze completes the Conway E Cairon model. Conway released 351 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2023, here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the most affordable e-bike of this model and has a price of 2646$. On the other hand, Conway Cairon SUV FS 7.7 2023, is the most expensive and costs 5823$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3282$. Doing a quick comparison, we notice that Cairon S 2.0 500 Hardtail, trapeze price is 2.53% lower than the average cost of a Trail e-bike.
Cairon S 2.0 500 Hardtail, trapeze components
Fork
Conway Cairon S 2.0 500 Hardtail, trapeze 2023 e-bike is equipped with the RST BLAZE fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Cairon S 2.0 500 Hardtail, trapeze model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon S 2.0 500 Hardtail, trapeze comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Conway Cairon S 2.0 500 Hardtail, trapeze e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
